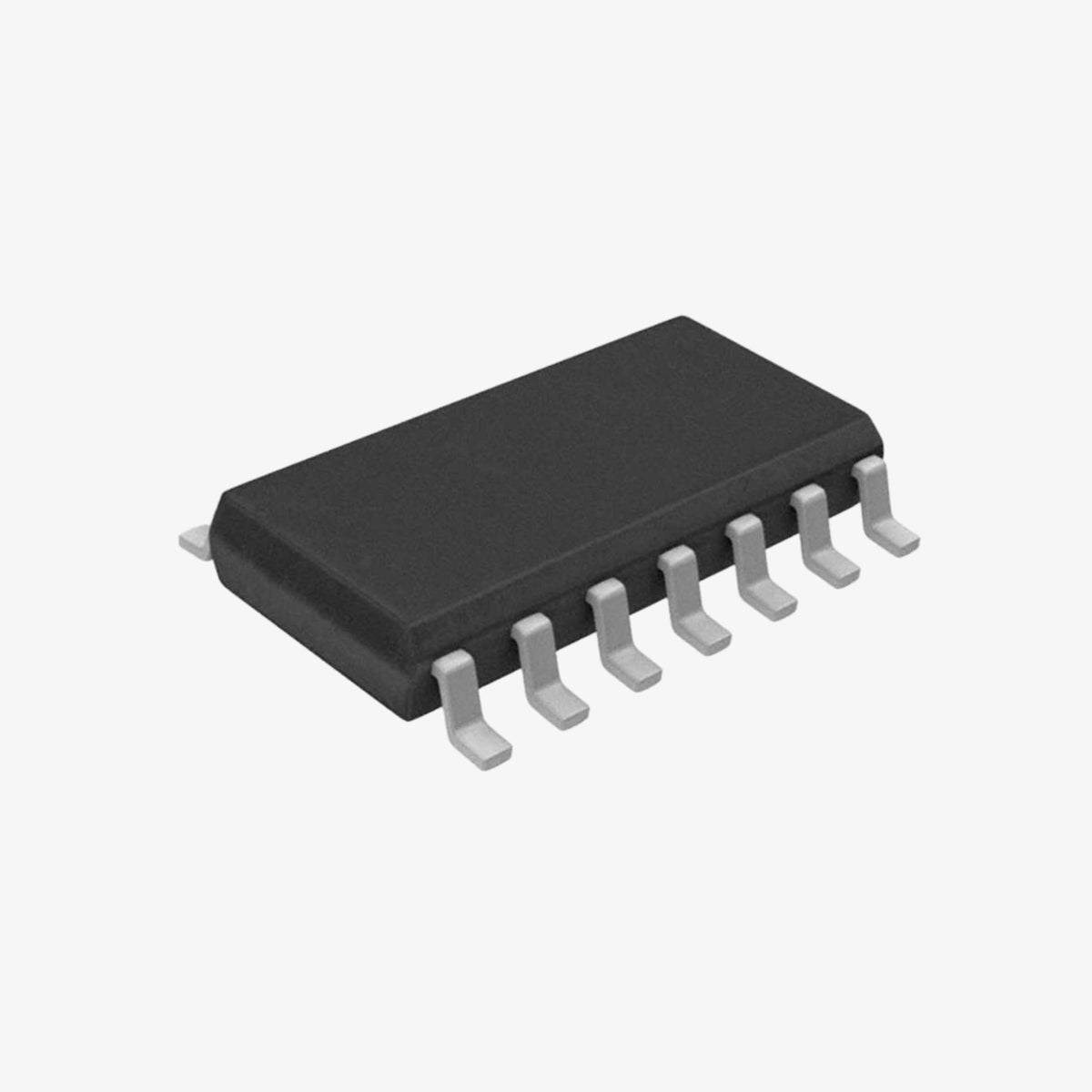

LMC660 CMOS Quad Operational Amplifier IC - SOP-14 SMD Package

LMC660 CMOS Quad Operational Amplifier IC - SOP-14 SMD Package

$1.38 USD
$1.38 USD
Sale Sold out
Shipping calculated at checkout.

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The LMC660 is a CMOS quad operational amplifier IC from Texas Instruments, designed for low-power and high-performance analog applications. Featuring four independent, high-speed operational amplifiers, the LMC660 provides low input bias currents and wide bandwidth, making it suitable for precision signal processing and amplification. It is housed in a compact SOP-14 SMD package, ideal for space-constrained designs.

Specifications:

  • IC Type: Operational Amplifier
  • Manufacturer: Genric
  • Package Type: SOP-14 SMD
  • Package Size: 14 Pins
  • Input Offset Voltage: 0.5 mV (typical)
  • Input Bias Current: 10 pA (typical)
  • Slew Rate: 2 V/µs (typical)
  • Gain Bandwidth Product: 10 MHz (typical)
  • Supply Voltage Range: ±3 V to ±15 V
  • Power Supply Current: 1.2 mA (typical)
  • Operating Temperature Range: -40°C to +85°C

Pin Configuration:

  1. Output (1): Output for operational amplifier 1
  2. Inverting Input (1): Inverting input for operational amplifier 1
  3. Non-Inverting Input (1): Non-inverting input for operational amplifier 1
  4. V-: Negative supply voltage
  5. Output (2): Output for operational amplifier 2
  6. Inverting Input (2): Inverting input for operational amplifier 2
  7. Non-Inverting Input (2): Non-inverting input for operational amplifier 2
  8. V+: Positive supply voltage
  9. Output (3): Output for operational amplifier 3
  10. Inverting Input (3): Inverting input for operational amplifier 3
  11. Non-Inverting Input (3): Non-inverting input for operational amplifier 3
  12. Offset Null (1): Offset null pin for operational amplifier 1
  13. Output (4): Output for operational amplifier 4
  14. Inverting Input (4): Inverting input for operational amplifier 4
  15. Non-Inverting Input (4): Non-inverting input for operational amplifier 4
  16. Offset Null (2): Offset null pin for operational amplifier 2 (duplicate)

Features:

  • Low input bias currents
  • High-speed operation
  • Wide bandwidth and low noise
  • Low power consumption
  • Compact SOP-14 SMD package

Applications:

  • Precision analog signal processing
  • Low-noise amplification
  • Data acquisition systems
  • Audio and video signal conditioning
  • Analog filters and signal conditioning

Package Includes:

  • 1 x LMC660 CMOS Quad Operational Amplifier IC (SOP-14 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
