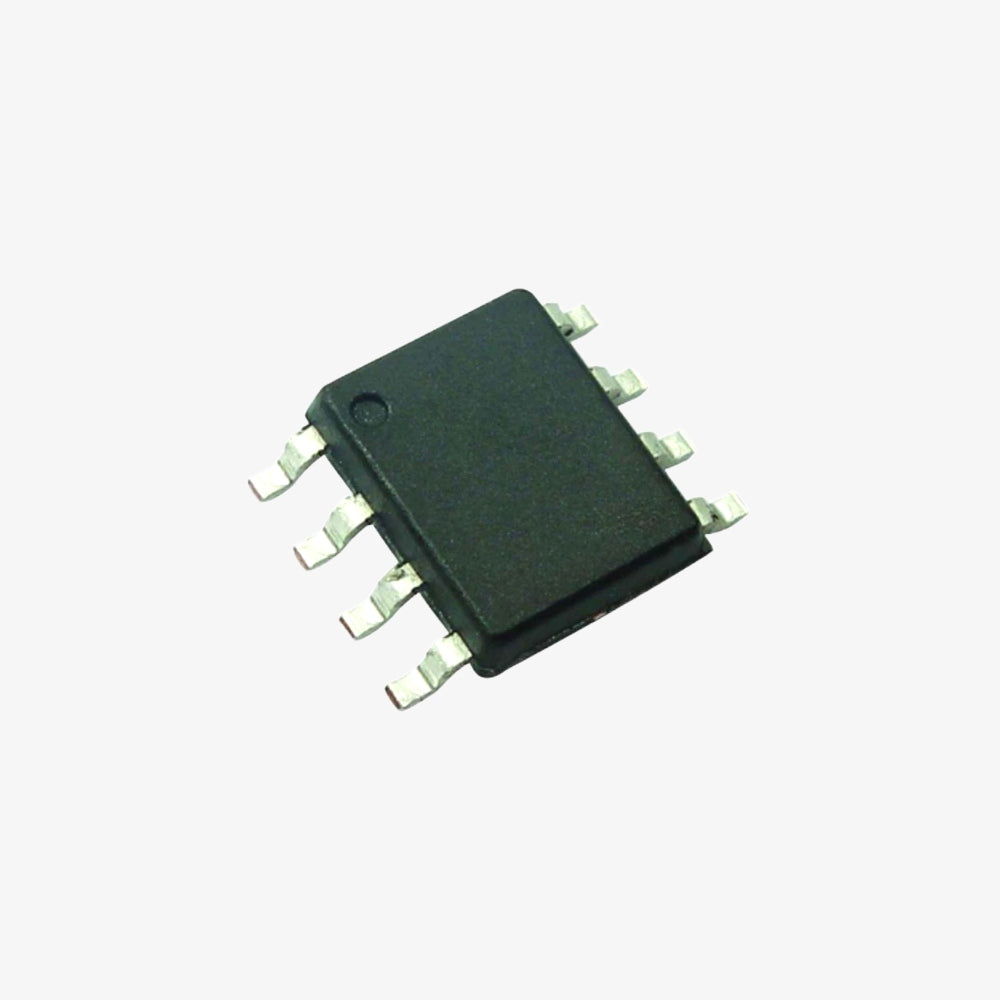

MC33172 - Low Power Dual Bipolar Operational Amplifiers IC (ON) - SOP-8 SMD Package

The MC33172 is a dual low-power bipolar operational amplifier IC manufactured by ON Semiconductor. It is designed for a wide range of applications, offering high gain, wide bandwidth, and low power consumption. The MC33172 provides rail-to-rail input and output capability, ensuring excellent performance across a wide range of operating conditions. This IC is housed in a compact SOP-8 SMD package, making it suitable for space-constrained designs.

Specifications:

• IC Type: Dual
• Package Type: SOP-8 SMD
• Package Size: 8 Pins
• Operating Voltage: 3 V to 32 V
• Supply Current: 200 µA per amplifier (typical)
• Gain Bandwidth Product: 2.2 MHz
• Input Offset Voltage: 2 mV (typical)
• Slew Rate: 0.6 V/µs
• Operating Temperature Range: -40°C to +85°C

Pin Configuration:

1. OUTA: Output of amplifier A
2. INA-: Inverting input of amplifier A
3. INA+: Non-inverting input of amplifier A
4. VSS: Negative supply voltage (ground)
5. INB+: Non-inverting input of amplifier B
6. INB-: Inverting input of amplifier B
7. OUTB: Output of amplifier B
8. VDD: Positive supply voltage

Features:

• Dual operational amplifiers in a single package
• Low supply current per amplifier
• Rail-to-rail input and output
• Wide supply voltage range
• Low input offset voltage
• High gain bandwidth product

Applications:

• Battery-powered devices
• Audio processing
• Signal conditioning
• Sensor interfacing
• Low-power instrumentation

Package Includes:

1 x MC33172 Low Power Dual Bipolar Operational Amplifiers IC (SOP-8 SMD Package)
