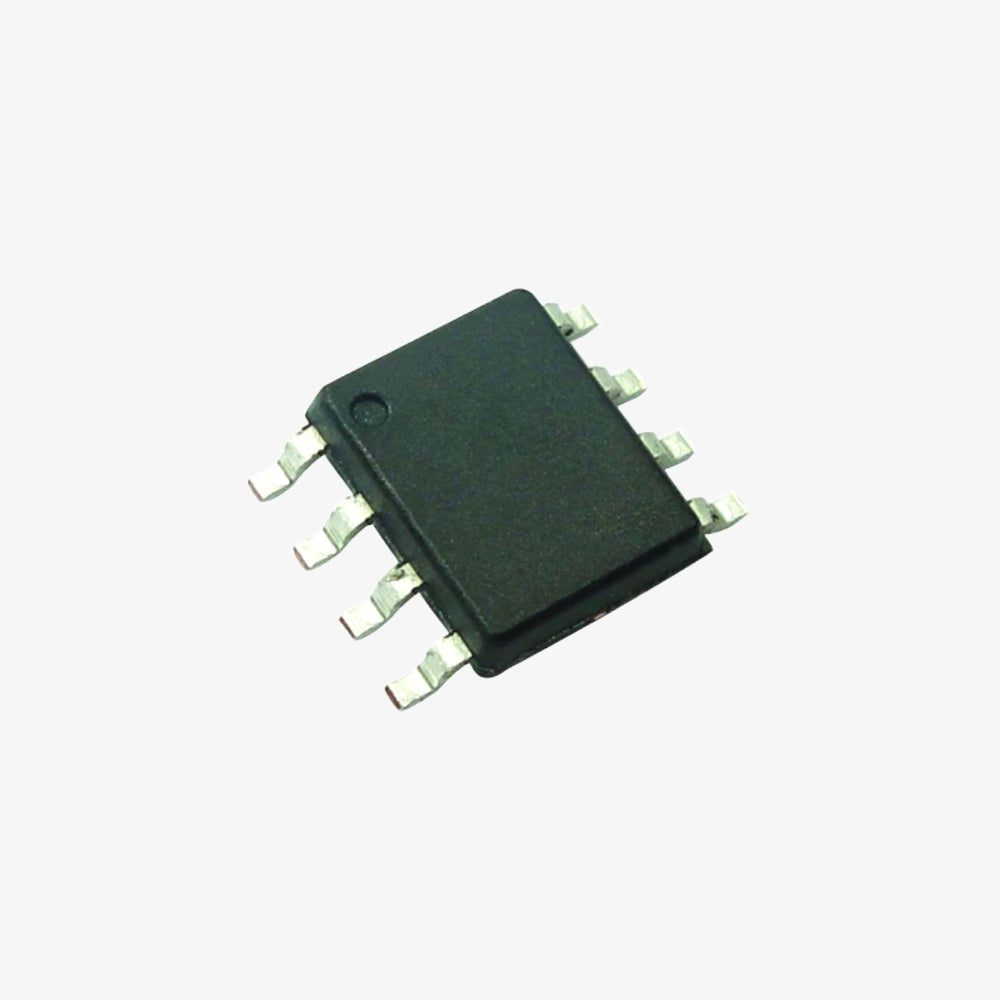

MC33272 Operational Amplifiers Single Supply High Slew Rate Low Input Offset Voltage IC (ON) - SOP-8 SMD Package

The MC33272 is a high-performance operational amplifier IC designed for single-supply applications. Manufactured by ON Semiconductor, it features a high slew rate and low input offset voltage, making it suitable for precision and high-speed applications. The IC is housed in a compact SOP-8 SMD package, offering a reliable solution for space-constrained designs.

Specifications:

• IC Type: Operational Amplifier
• Manufacturer: ON Semiconductor
• Package Type: SOP-8 SMD
• Package Size: 8 Pins
• Input Offset Voltage: ±0.5 mV (typical)
• Slew Rate: 0.5 V/µs (typical)
• Gain Bandwidth Product: 1 MHz (typical)
• Supply Voltage Range: 3 V to 30 V (single supply)
• Power Supply Current: 1.2 mA (typical)
• Operating Temperature Range: -40°C to +85°C

Pin Configuration:

1. Offset Null: Offset null pin
2. Inverting Input: Inverting input terminal
3. Non-Inverting Input: Non-inverting input terminal
4. Output: Output terminal
5. Offset Null: Offset null pin
6. Inverting Input: Inverting input terminal
7. Non-Inverting Input: Non-inverting input terminal
8. Output: Output terminal

Features:

• High slew rate and bandwidth
• Low input offset voltage
• Single supply operation
• Compact SOP-8 SMD package
• High precision and stability

Applications:

• Signal conditioning
• Analog filtering
• Precision measurement
• Data acquisition systems
• Medical instrumentation

Package Includes:

• 1 x MC33272 Operational Amplifier IC (SOP-8 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
