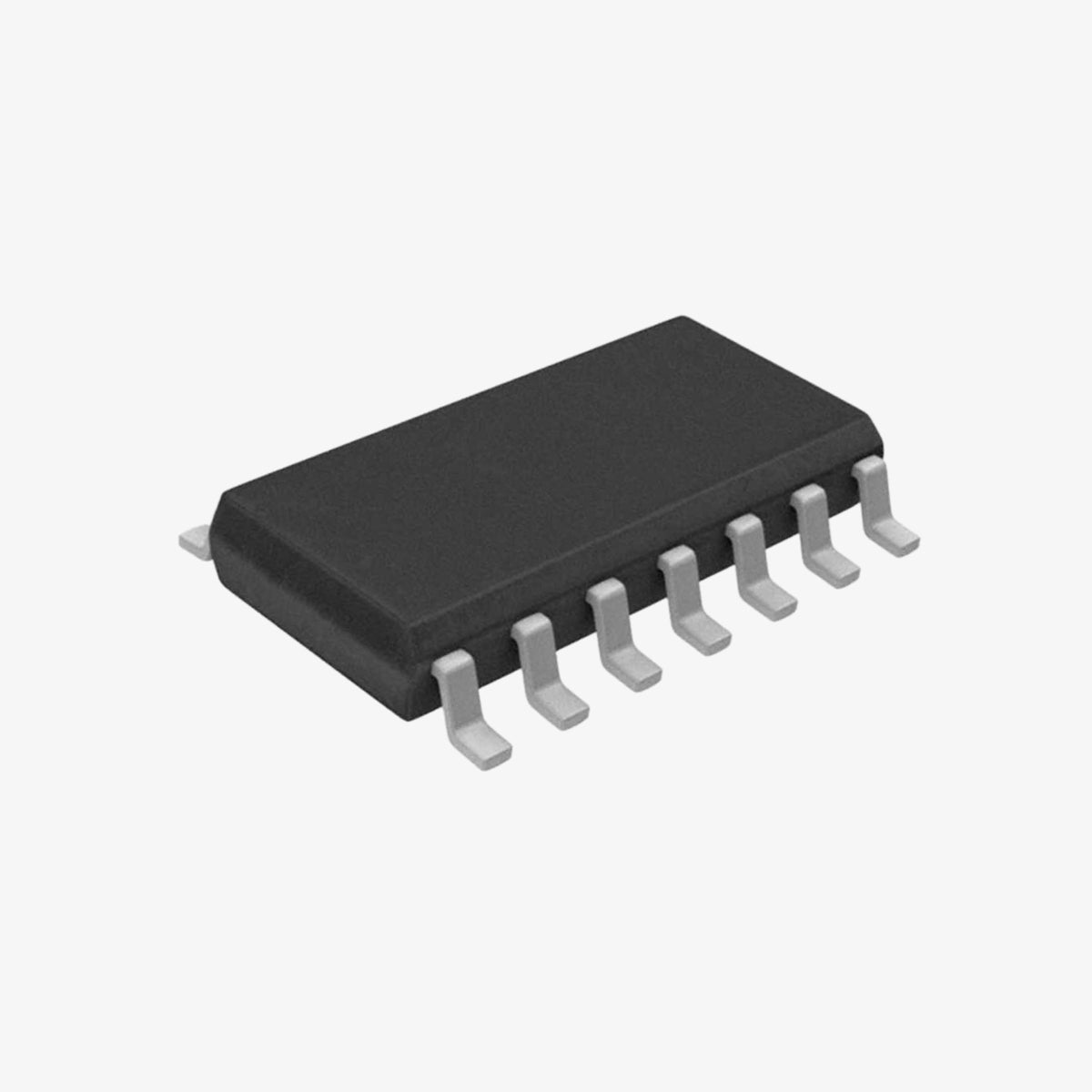

MC34184 Low Power High Slew Rate Wide Bandwidth JFET Input Op-Amp IC (Motorola) - SOP-14 SMD Package

MC34184 Low Power High Slew Rate Wide Bandwidth JFET Input Op-Amp IC (Motorola) - SOP-14 SMD Package

$0.64 USD
$0.64 USD
Sale Sold out
Shipping calculated at checkout.

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The MC34184 is a low power, high slew rate operational amplifier with a wide bandwidth and JFET input, manufactured by Motorola. This IC is designed for high-speed and precision applications where low power consumption and high performance are crucial. Housed in a compact SOP-14 SMD package, it is suitable for various analog signal processing tasks.

Specifications:

  • IC Type: Operational Amplifier
  • Manufacturer: Motorola
  • Package Type: SOP-14 SMD
  • Package Size: 14 Pins
  • Input Offset Voltage: ±1 mV (typical)
  • Slew Rate: 10 V/µs (typical)
  • Gain Bandwidth Product: 10 MHz (typical)
  • Supply Voltage Range: ±3 V to ±15 V
  • Power Supply Current: 1.8 mA (typical)
  • Operating Temperature Range: -40°C to +85°C

Pin Configuration:

  1. Offset Null: Offset null pin
  2. Inverting Input (1): Inverting input for amplifier 1
  3. Non-Inverting Input (1): Non-inverting input for amplifier 1
  4. Output (1): Output for amplifier 1
  5. Offset Null: Offset null pin
  6. Inverting Input (2): Inverting input for amplifier 2
  7. Non-Inverting Input (2): Non-inverting input for amplifier 2
  8. Output (2): Output for amplifier 2
  9. Inverting Input (3): Inverting input for amplifier 3
  10. Non-Inverting Input (3): Non-inverting input for amplifier 3
  11. Output (3): Output for amplifier 3
  12. Inverting Input (4): Inverting input for amplifier 4
  13. Non-Inverting Input (4): Non-inverting input for amplifier 4
  14. Output (4): Output for amplifier 4

Features:

  • Low power consumption
  • High slew rate and wide bandwidth
  • JFET input for high input impedance
  • Suitable for high-speed and precision applications
  • Compact SOP-14 SMD package

Applications:

  • High-speed analog signal processing
  • Precision measurement systems
  • Audio and video signal conditioning
  • Data acquisition systems
  • Low-noise amplification

Package Includes:

  • 1 x MC34184 Low Power High Slew Rate Wide Bandwidth JFET Input Op-Amp IC (SOP-14 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
