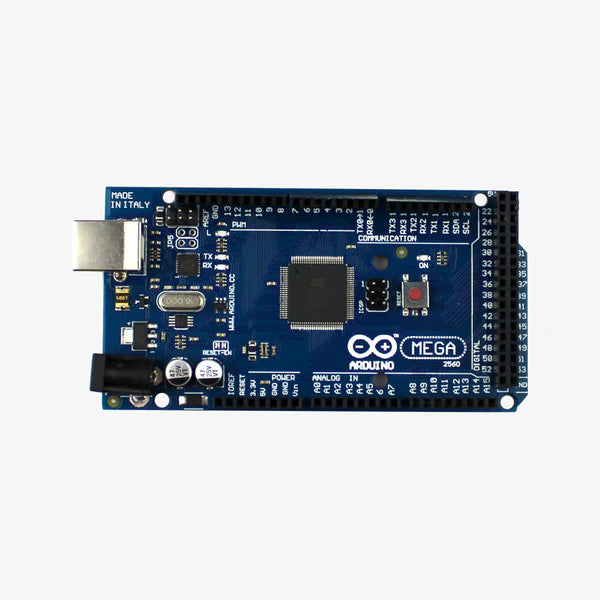

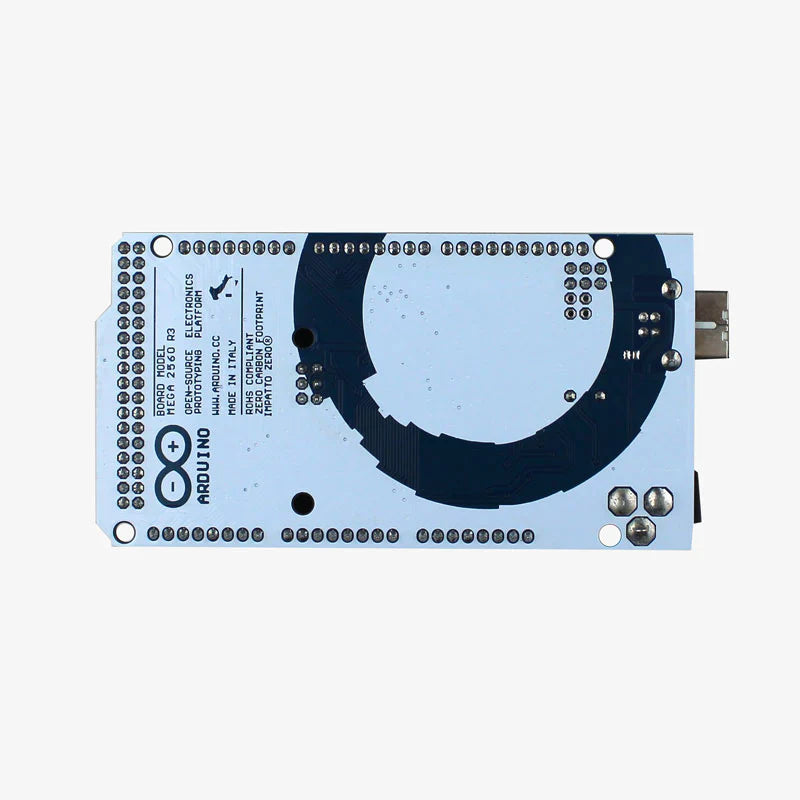

Mega R3 ATMEGA2560 16U Board Compatible with Arduino

The Mega 2560 is a microcontroller board based on the ATmega2560 and compatible with Arduino. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC to-DC adapter or battery to get started.

Specifications :

• Microcontroller : ATmega2560
• Operating Voltage : 5V
• Input Voltage (recommended) : 7-12V
• Input Voltage (limit) : 6-20V
• Digital I/O Pins : 54 (of which 15 provide PWM output)
• Analog Input Pins : 16
• DC Current per I/O Pin : 20 mA
• DC Current for 3.3V Pin : 50 mA
• Flash Memory : 256 KB of which 8 KB used by bootloader
• SRAM : 8 KB
• EEPROM : 4 KB
• Clock Speed : 16 MHz
• LED BUILTIN : 13

Package Includes :

1 x Mega R3 ATMEGA2560 16U Development Board
