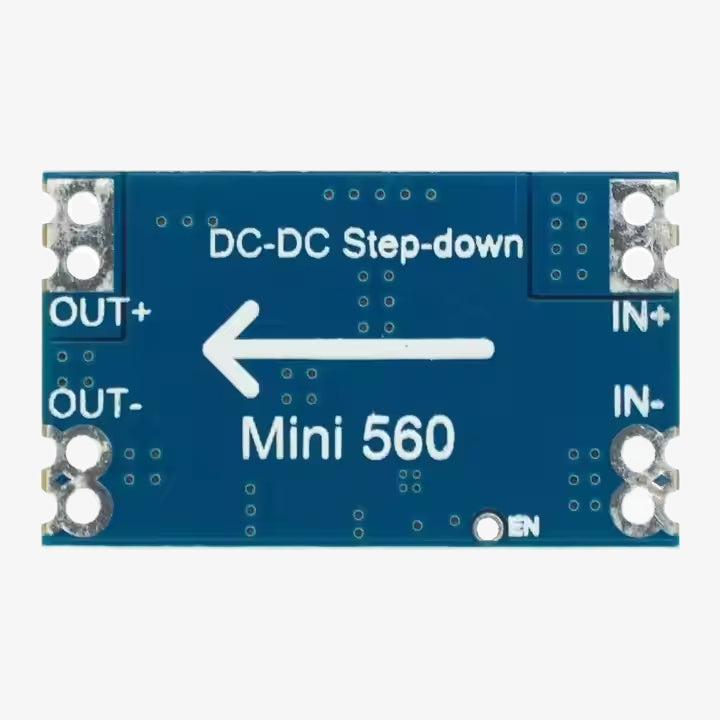

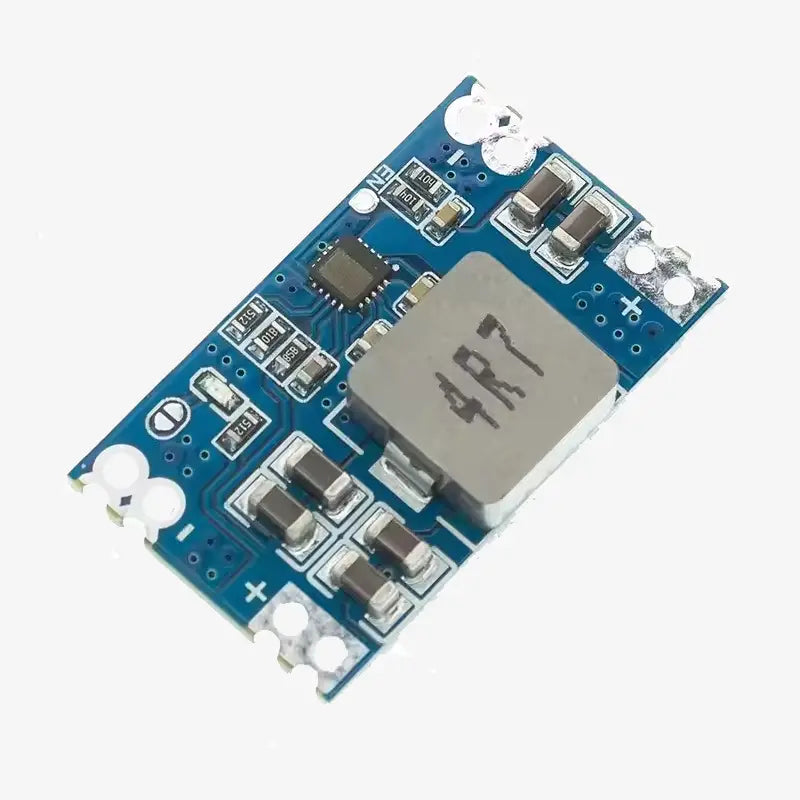

MINI560 5V 5A DC-DC Step-Down Stabilized Voltage Module

The MINI560 DC-DC Step-Down Stabilized Voltage Module is a compact and efficient power regulator designed to convert higher DC input voltages into a stable 5V output. It is ideal for powering high-current devices and ensuring stable performance in electronic projects.

MINI560 5V 5A DC-DC Step-Down Module Features:

• High Output Current: Supports up to 5A, ideal for powering demanding devices.
• Wide Input Voltage Range: Operates with input voltages ranging from 6V to 24V DC.
• Stable 5V Output: Ensures consistent voltage for sensitive electronic devices.
• High Efficiency: Optimized for minimal power loss during conversion.
• Compact Design: Lightweight and small for easy integration into tight spaces.
• Built-in Protection: Includes overcurrent, overheating, and short-circuit protection.

MINI560 5V 5A DC-DC Step-Down Stabilized Voltage Module Specifications:

• Input Voltage: 6V to 24V DC
• Output Voltage: 5V DC
• Output Current: Up to 5A
• Conversion Efficiency: â‰?90%
• Ripple Voltage: <50mV
• Operating Temperature: -40°C to 85°C
• Dimensions: 22mm x 17mm x 6mm

Package Includes

1 x MINI560 DC-DC Step-Down Stabilized Voltage Module
