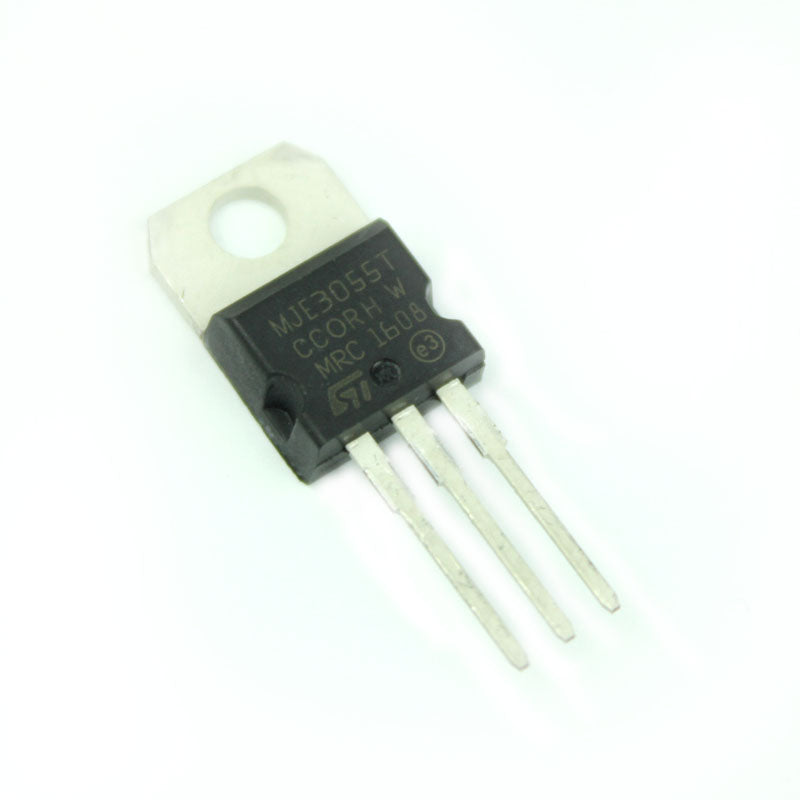

MJE3055T NPN Power Transistor

MJE3055T NPN Power Transistor

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The MJE3055T is an NPN Transistor that is commonly used in general-purpose switching and audio amplifier circuits. The IC is a TO220 package replacement for the popular 2N3055 Audio Amplifier Transistors. MJE3055 NPN Transistor also has a high collector current and hence can be used in high power switching circuits also. Commonly applications include, audio amplifier and pre-amplifiers, solenoid or relay control and medium power switching circuits.  It also has an equivalent PNP transistor called MJE2955T.

The transistor also has a low control voltage of only 5V and hence can be easily used along with microcontrollers operating on 5V like Arduino or PIC.



Specifications of MJE3055:

  • Collector-Emitter Voltage(max): 60V
  • Base-Emitter Voltage(max): 5V
  • Collector Current(max): 10A
  • DC Current gain: 100
  • Bandwidth: 2MHz
