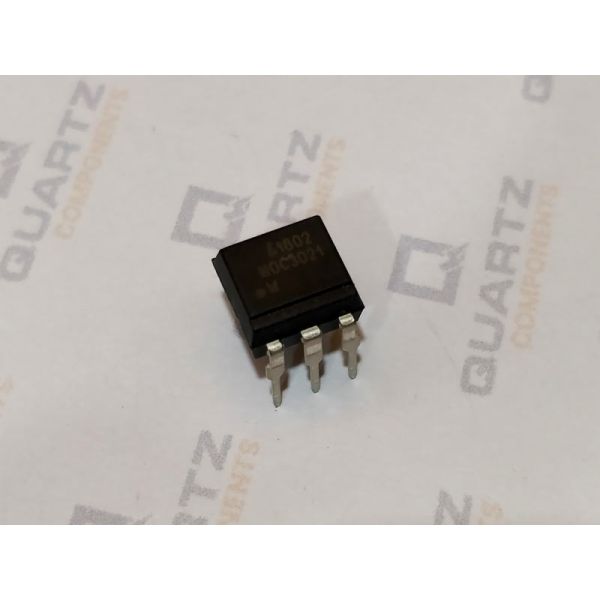

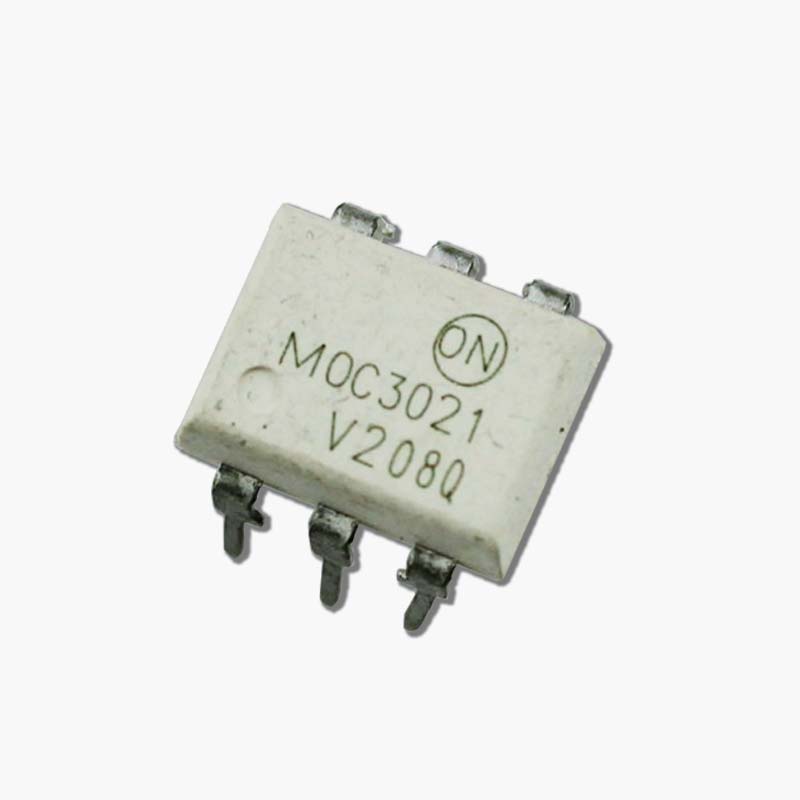

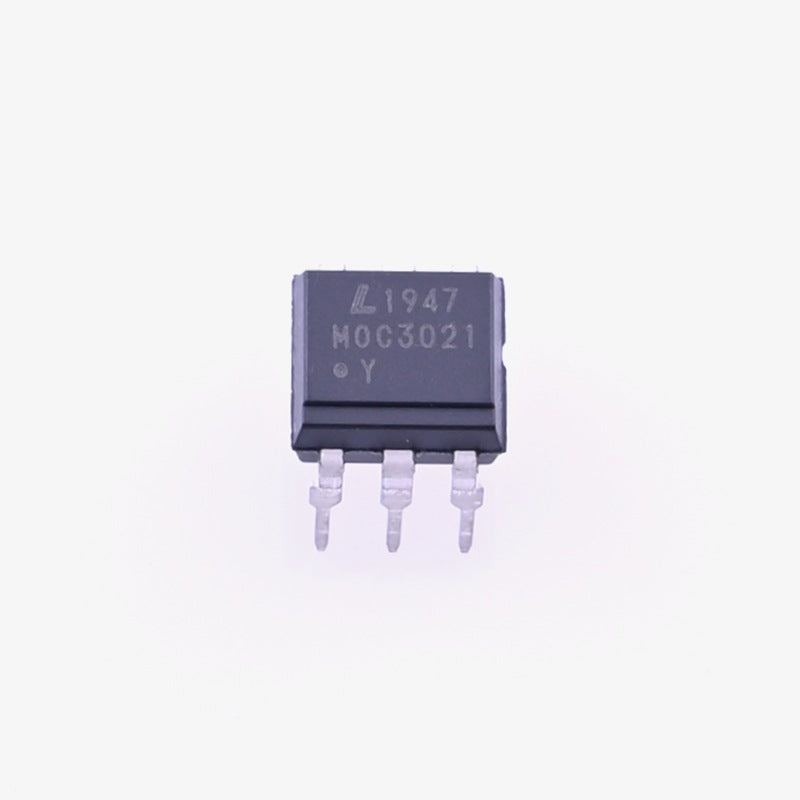

MOC3021 Triac Driver Optocoupler/Opto-isolator IC

The MOC3021 IC is a non-zero crossing, 6-pin Optocoupler composed of a gallium arsenide infrared emitting diode as input and a light-activated silicon bilateral switch called a TRIAC as output. It is intended for use in circuit applications that require the control of high AC power mains from a low voltage circuit while protecting or isolating the low voltage circuit from the dangers of alternating current power mains high voltage. The MOC3021 IC TRIAC driver output can provide a current that can reach 1A and its voltage can reach 400V. It is commonly used in light dimmers, fan speed controllers, motor speed controllers, and so on. An alternative option to this IC the

Product Description of MOC3021 Triac Driver Optocoupler

Features of MOC3021 Triac Driver Optocoupler

• IR Emitting Diode has low degradation
• IR forward Current: 60 mA
• Power Dissipation of IR input diode: 70 mW
• 6pin DIP photocoupler, the Triac driver output
• Output photo Triac: Off-State Output Terminal Voltage -400V; Forward Current (Peak)- 1A; Power Dissipation - 300mW
• High Isolation Voltage (5.3kV _RMS,7.5kV_PK )
• 400V Peak Blocking Voltage
• Operating Temperature: -40°C to 100 °C
• All electrical parameters 100% tested

Package Contents

1 x MOC3021 Triac Driver Optocoupler/Opto-isolator IC
