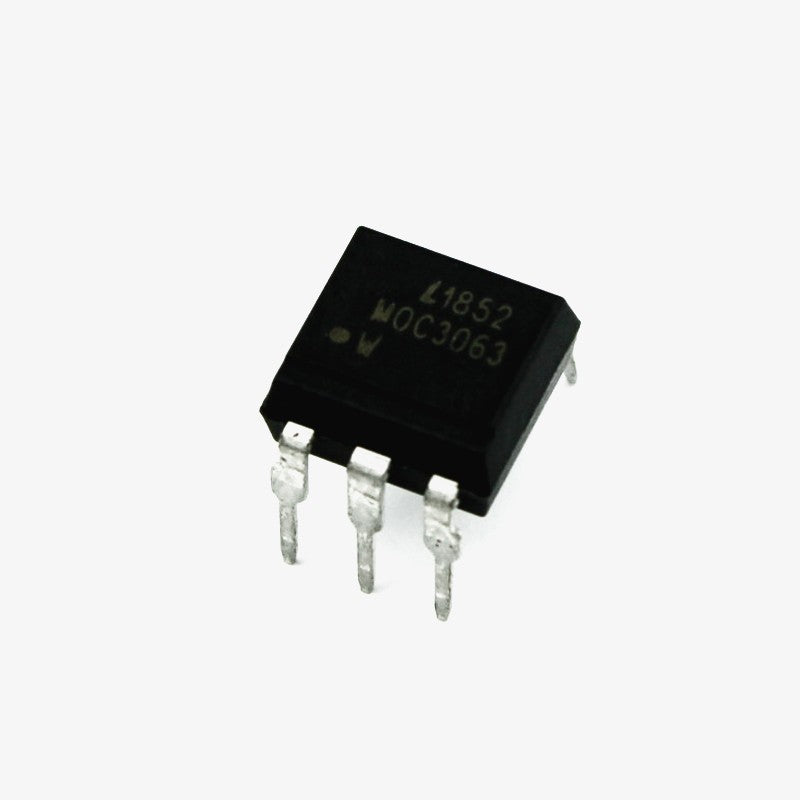

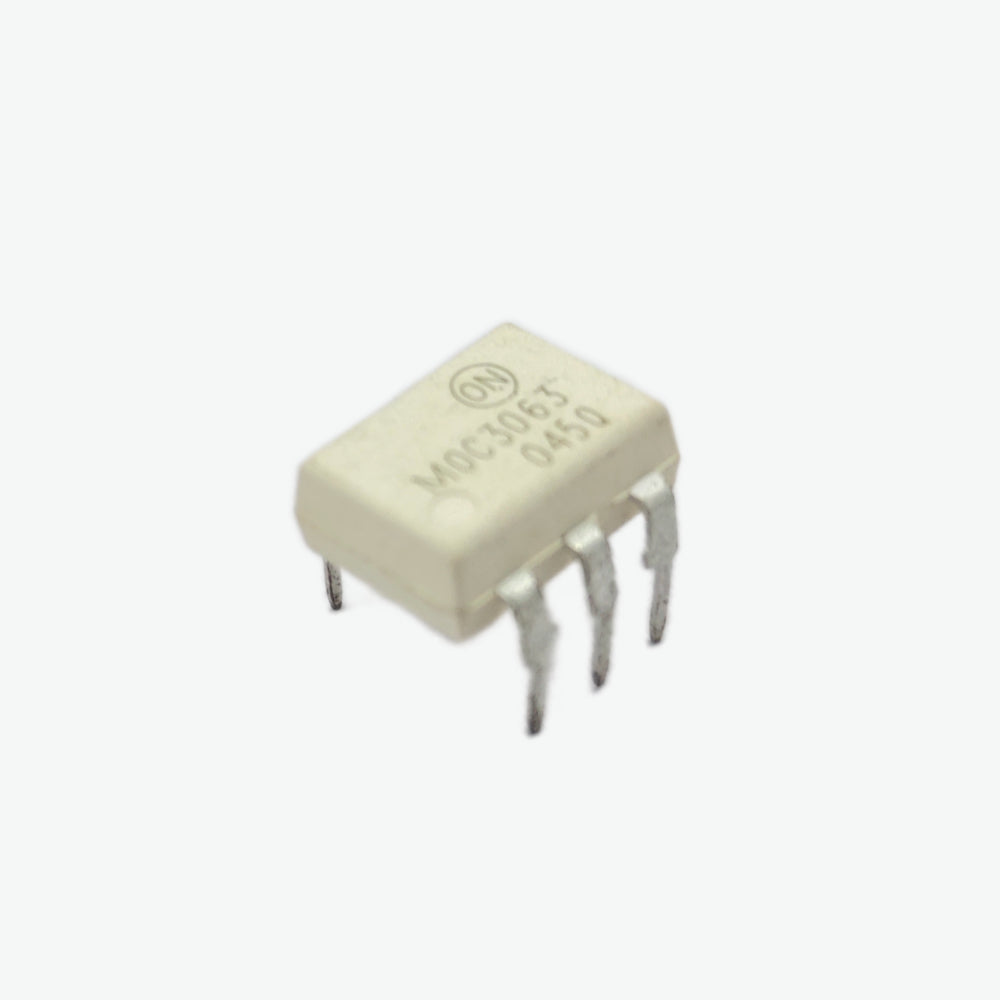

MOC3063 Zero Cross Triac Optocoupler/Opto-Isolator IC

MOC3063 Zero Cross Triac Optocoupler/Opto-Isolator IC

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The MOC3063 IC is a 6-pin optocoupler that has an IR LED input coupled to a TRIAC output with a Zero-Crossing option. This IC is designed to drive and to provide AC isolation to logic systems and equipment powered from 115/240 VAC lines.


Product Description of MOC3063 Zero Cross Triac Optocoupler

MOC3063 IC Pinout



Features of MOC3063 Zero Cross Triac Optocoupler

  • Simplifies logic control of 115/240 VAC power
  • Zero voltage crossing
  • Input IR Diode: Forward Current - 50mA; Reverse Voltage - 6V;  Power Dissipation-  120mW
  • Output Photo TRIAC: Off-State Output Terminal Voltage - 600V ; Forward Current (Peak) - 1A; Power Dissipation - 150mW
  • High Isolation Voltage (5.3kV RMS,7.5kVPK )
  • 5mA Trigger Current
  • Operating Temperature: -40°C to 100 °C



Package Contents

1 x MOC3063 Zero Cross Triac Optocoupler/Opto-Isolator IC
