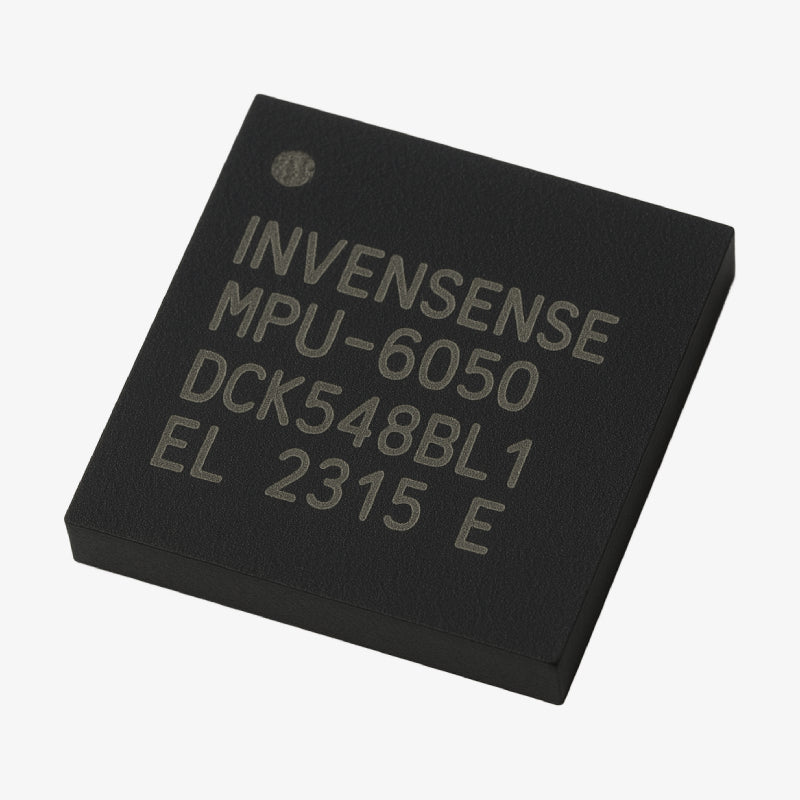

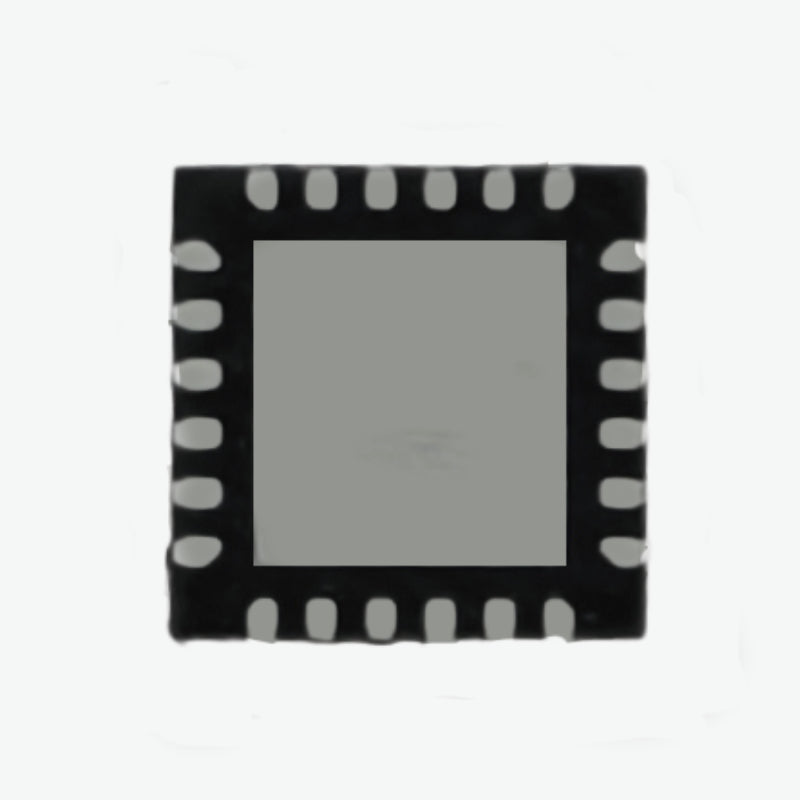

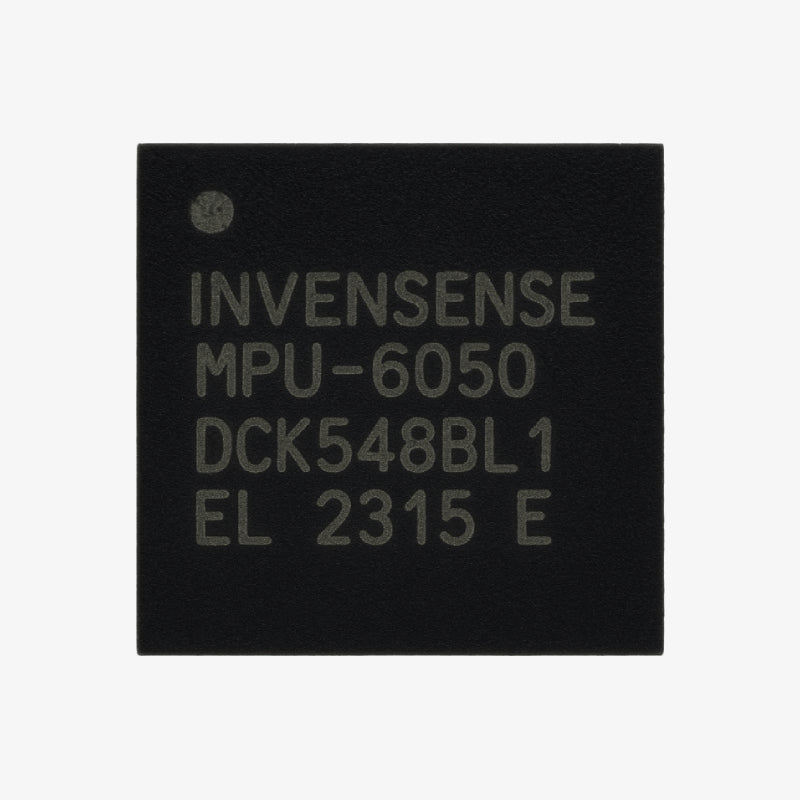

MPU6050 3-Axis Gyro/Accelerometer IC �QFN-24 SMD Package

The MPU6050 is a compact, high-performance 6-axis motion tracking IC combining a 3-axis gyroscope and a 3-axis accelerometer in a single QFN-24 SMD package. It features a built-in Digital Motion Processorâ„?(DMPâ„? that processes complex 9-axis MotionFusion algorithms, freeing up the host processor. Ideal for drones, robotics, wearable devices, and embedded systems where real-time orientation, motion detection, and stability are critical.

Features of MPU6050 3-Axis Gyro/Accelerometer IC:

1. Combines 3-axis gyroscope and 3-axis accelerometer
2. Integrated DMPâ„?for motion processing
3. Selectable full-scale ranges:
   â€?Accelerometer: ±2g, ±4g, ±8g, ±16g
   â€?Gyroscope: ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
4. 16-bit ADC resolution for each axis
5. I²C interface up to 400kHz (optional SPI mode)
6. On-chip temperature sensor
7. Low power consumption and standby modes
8. Auxiliary I²C bus for connecting external magnetometer

Specifications of MPU 6050 3-Axis Gyro/Accelerometer IC:

• Manufacturer: InvenSense
• Package Type: QFN-24
• Operating Voltage: 2.3V to 3.4V (typ. 3.3V)
• Interface: I²C (default), SPI (optional)
• Gyroscope Sensitivity: ±250â€?000°/s
• Accelerometer Sensitivity: ±2gâ€?6g
• Operating Temperature: â€?0°C to +85°C
• Dimensions: 4mm × 4mm × 0.9mm

Package Includes:

1 × MPU 6050 3-Axis Gyro/Accelerometer IC (InvenSense) â€?QFN-24 SMD Package
