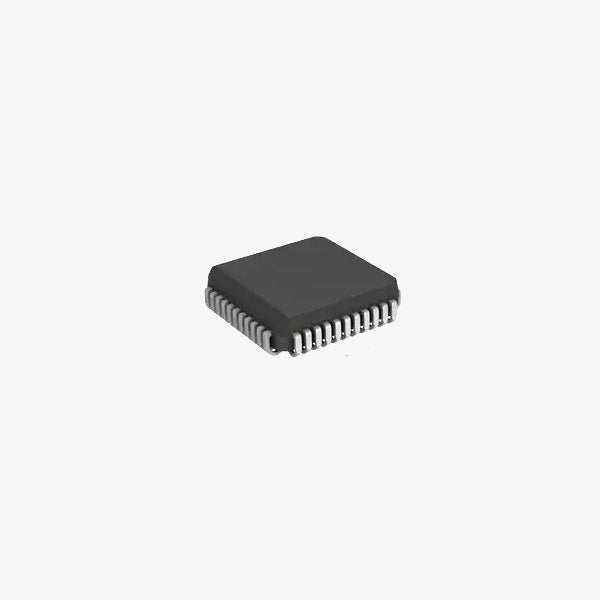

MT8816AP - 8 x 16 Analog Switch Array IC - PLCC-44 SMD Package

The MT8816AP is an 8 x 16 analog switch array IC designed for use in telecommunications, signal routing, and audio switching applications. It provides 128 crosspoints, allowing any of the 8 inputs to be connected to any of the 16 outputs. The IC is packaged in a PLCC-44 SMD package, making it suitable for high-density circuit designs.

Features

• 8 x 16 Crosspoint Switch Array: Provides a matrix of 128 crosspoints, enabling flexible signal routing between inputs and outputs.
• Low On-Resistance: Ensures minimal signal loss and distortion, making it suitable for high-quality analog signal switching.
• Low Crosstalk: Designed to minimize interference between channels, ensuring clean signal transmission.
• Wide Operating Voltage Range: Supports a broad range of analog signal levels, making it versatile for various applications.
• PLCC-44 SMD Package: Compact surface-mount package ideal for space-constrained PCB designs.

Specifications

• Number of Crosspoints: 128 (8 x 16 array)
• On-Resistance: 100Ω typical
• Off-Isolation: -60 dB at 1 MHz
• Crosstalk: -60 dB at 1 MHz
• Operating Voltage Range: 10V to 30V
• Analog Signal Range: ±12V
• Power Supply Voltage: 5V ±10%
• Operating Temperature: 0°C to +70°C
• Package Type: PLCC-44 (Plastic Leaded Chip Carrier)
• Pin Count: 44
