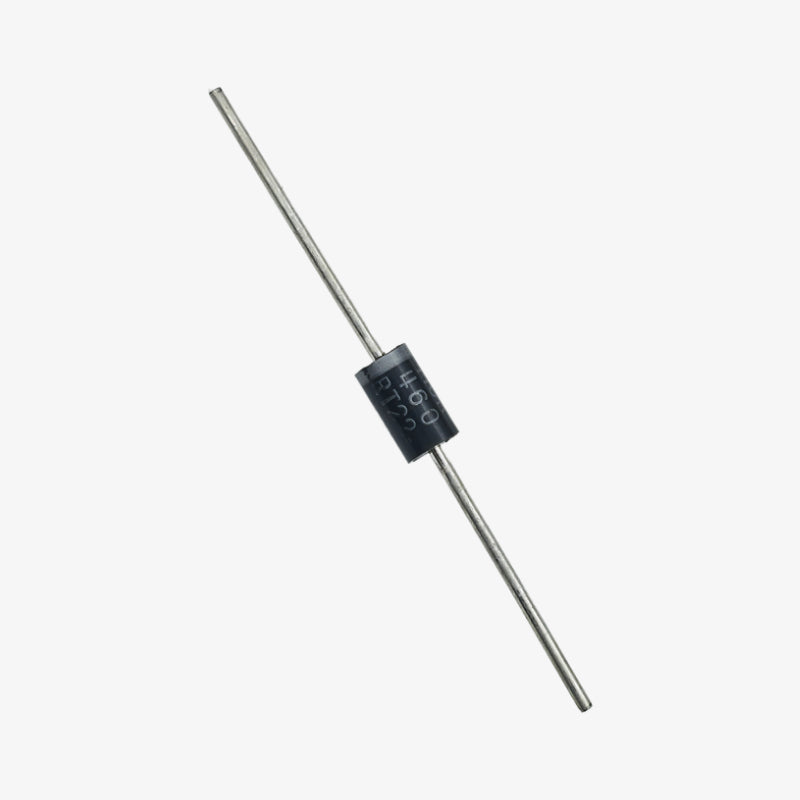

MUR460 Ultra Fast Rectifier Diode 4A

The MUR460 Ultra Fast Rectifier Diode 4A is designed for high-speed AC to DC rectification with strong surge capability and low leakage performance. Its diffused junction and fast recovery characteristics make it ideal for power supplies, high-frequency inverters, and industrial rectification circuits.

Features:

1. Hermetically sealed construction for durability

2. Super fast reverse recovery for high-frequency applications

3. High surge current capability for demanding loads

4. Low leakage current with axial lead DO-201AD package

5. Cathode marked for easy polarity identification

Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): 600 V

• Maximum Average Forward Rectified Current (IF(AV)): 4.0 A

• Peak Forward Surge Current (IFSM): 125 A

• Forward Voltage (VF) at 4 A: 1.30 V

• Peak Reverse Current (IR) at 25°C: 5 µA

• Peak Reverse Current (IR) at 125°C: 50 µA

• Reverse Recovery Time (trr): 50 ns

• Thermal Resistance Junction to Ambient (RθJA): 28 °C/W

• Thermal Resistance Junction to Lead (RθJL): 10 °C/W

• Operating Junction Temperature Range (TJ): -55°C to +150°C

• Storage Temperature Range (TSTG): -55°C to +150°C


Package Includes:

1 × MUR460 Ultra Fast Rectifier Diode 4A
