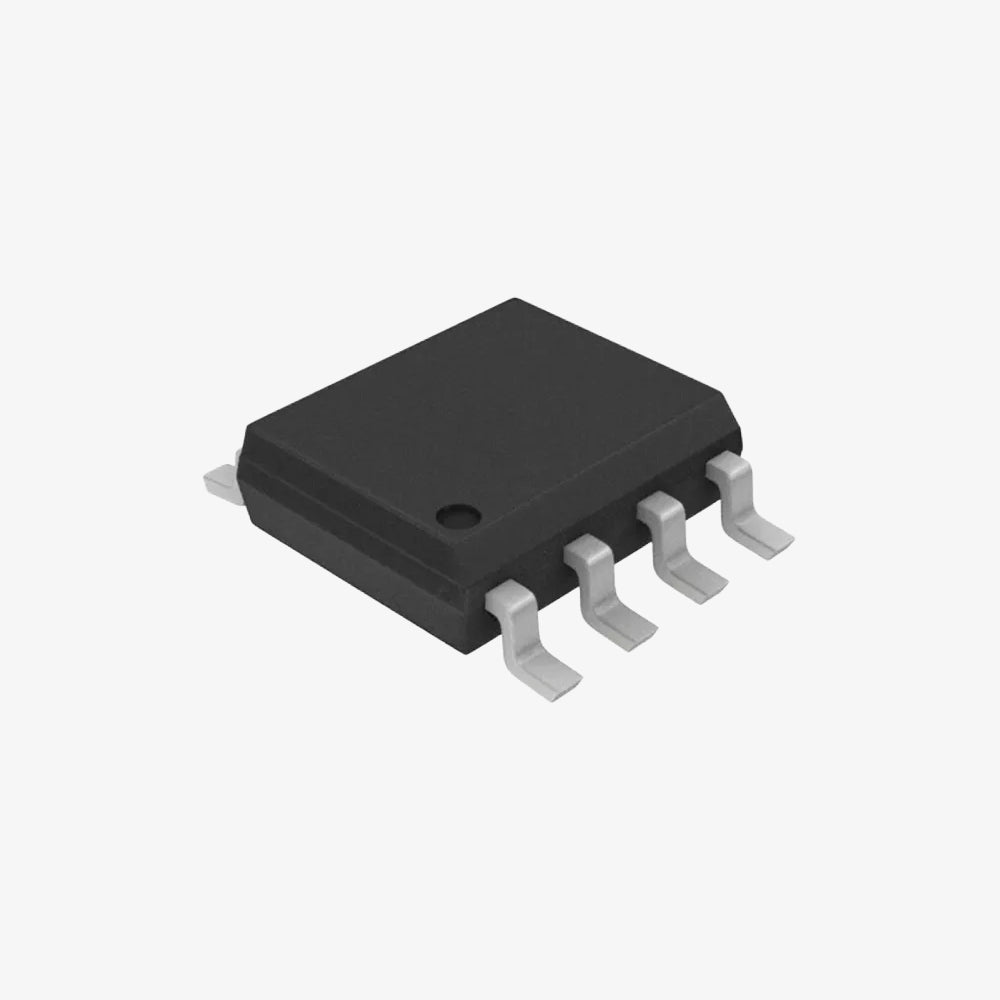

NE5532D Dual Low Noise OpAmp IC - SOIC-8 SMD Package

The NE5532D is a high-performance, low-noise dual operational amplifier IC designed for applications requiring exceptional audio quality and low distortion. It is housed in a compact SOIC-8 surface-mount package, making it suitable for modern, high-density circuit designs. This op-amp is highly reliable and versatile, ensuring accurate signal amplification for demanding applications.

Features

• Low Noise Performance: Delivers superior low-noise characteristics with a typical noise density of 5 nV/√Hz, ideal for high-fidelity audio circuits.

• High Slew Rate: Provides a typical slew rate of 9 V/μs for fast transient response and low distortion.

• Low Total Harmonic Distortion (THD): Ensures accurate signal reproduction with minimal distortion.

• Wide Operating Voltage Range: Operates from ±3V to ±15V, supporting both single and dual supply configurations.

• High Output Drive Capability: Drives low impedance loads, suitable for a wide range of audio and signal processing applications.

• Unity-Gain Stable: Ensures reliable operation across various gain configurations.

• Compact SOIC-8 Package: Optimized for surface-mount applications to save PCB space.

NE5532D OpAmp Specifications

• Number of Channels: Dual (2)

• Input Offset Voltage: Typically 0.5 mV

• Bandwidth: 10 MHz (typical)

• Supply Current: 8 mA (maximum)

• Output Voltage Swing: ±13V (typical at ±15V supply)

• Temperature Range: -40°C to +85°C

Pinout and Configuration

Applications

• High-fidelity audio preamplifiers and mixers

• Signal conditioning circuits

• Active filters and oscillators

• Industrial instrumentation

• Medical and scientific equipment

Package Includes:

1 x NE5532D Dual Low Noise OpAmp IC - SOIC-8 SMD Package
