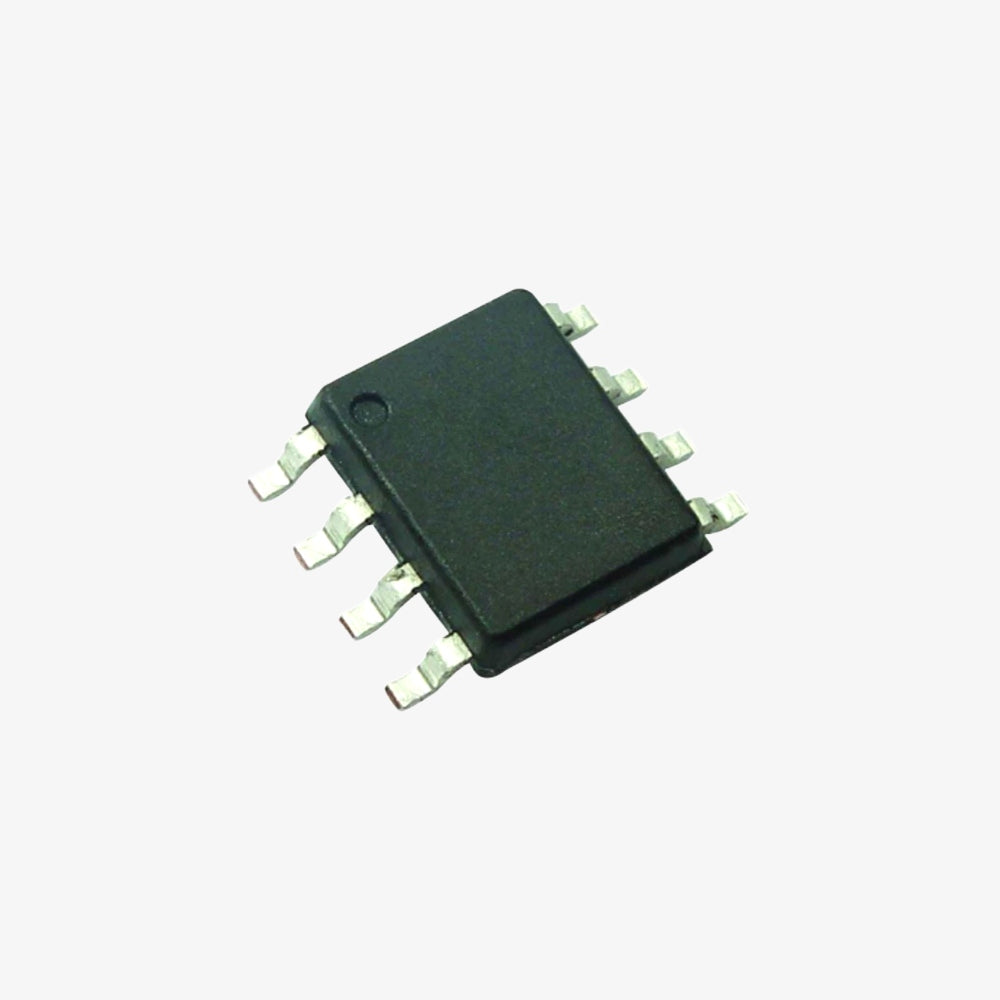

OP177 Ultra-Precision Operational Amplifier IC (ADI) - SOP-8 SMD Package

The OP177 is an ultra-precision operational amplifier IC designed by Analog Devices (ADI). Known for its outstanding precision and stability, the OP177 offers extremely low input offset voltage and low drift over time and temperature. It provides superior DC performance and is ideal for high-precision applications such as instrumentation, data acquisition systems, and industrial controls. The OP177 is available in a compact SOP-8 SMD package, making it suitable for space-efficient designs.

Specifications:

• IC Type: Ultra-Precision Operational Amplifier
• Package Type: SOP-8 SMD
• Package Size: 8 Pins
• Supply Voltage Range: ±3 V to ±18 V
• Supply Current: 2.3 mA (typical)
• Gain Bandwidth Product: 600 kHz
• Input Offset Voltage: 25 µV (maximum)
• Input Offset Drift: 0.3 µV/°C (typical)
• Slew Rate: 0.2 V/µs
• Operating Temperature Range: -40°C to +85°C

Pin Configuration:

1. Offset Null: Offset null pin
2. Inverting Input: Inverting input of the amplifier
3. Non-Inverting Input: Non-inverting input of the amplifier
4. V-: Negative supply voltage
5. Offset Null: Offset null pin
6. Output: Output of the amplifier
7. V+: Positive supply voltage
8. No Connect: No internal connection

Features:

• Ultra-low input offset voltage
• Low input offset drift
• High open-loop gain
• Low noise performance
• Excellent DC precision
• High common-mode rejection ratio

Applications:

• Precision instrumentation
• Data acquisition systems
• Industrial process controls
• Weigh scales
• High-precision sensor interfacing

Package Includes:

1 x OP177 Ultra-Precision Operational Amplifier IC (SOP-8 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
