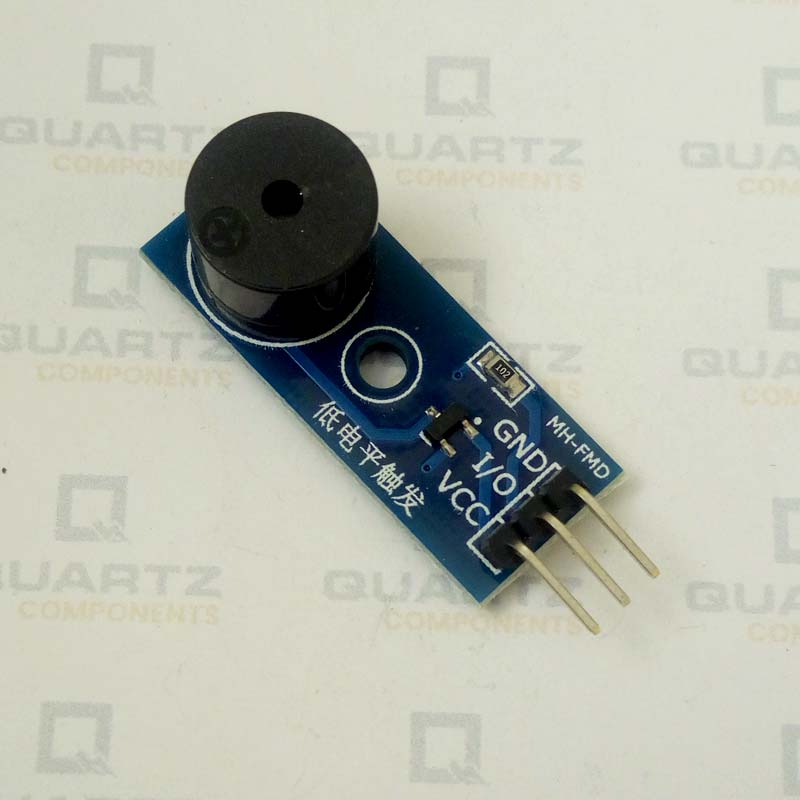

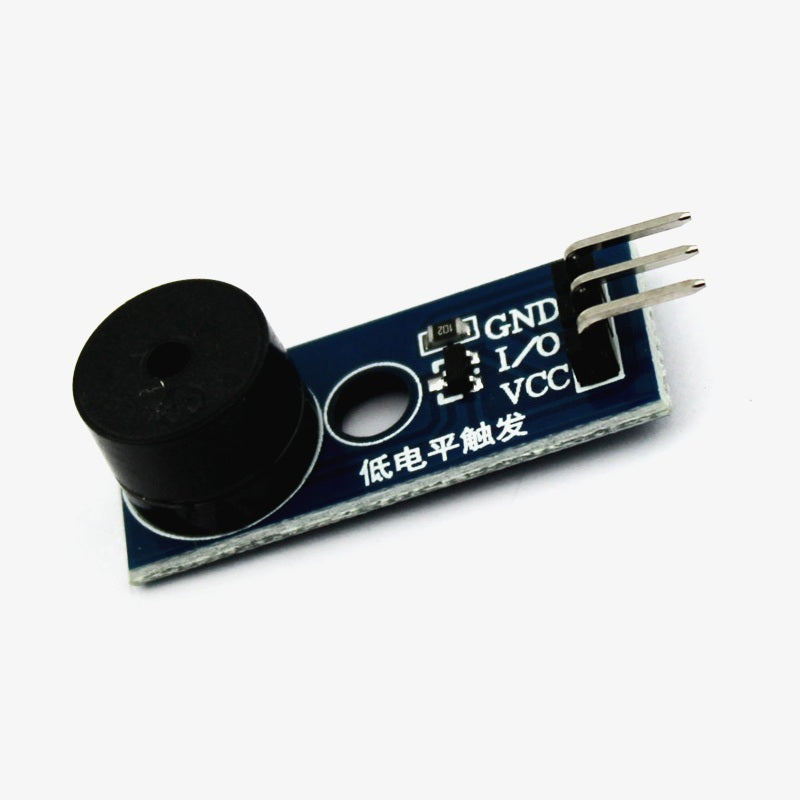

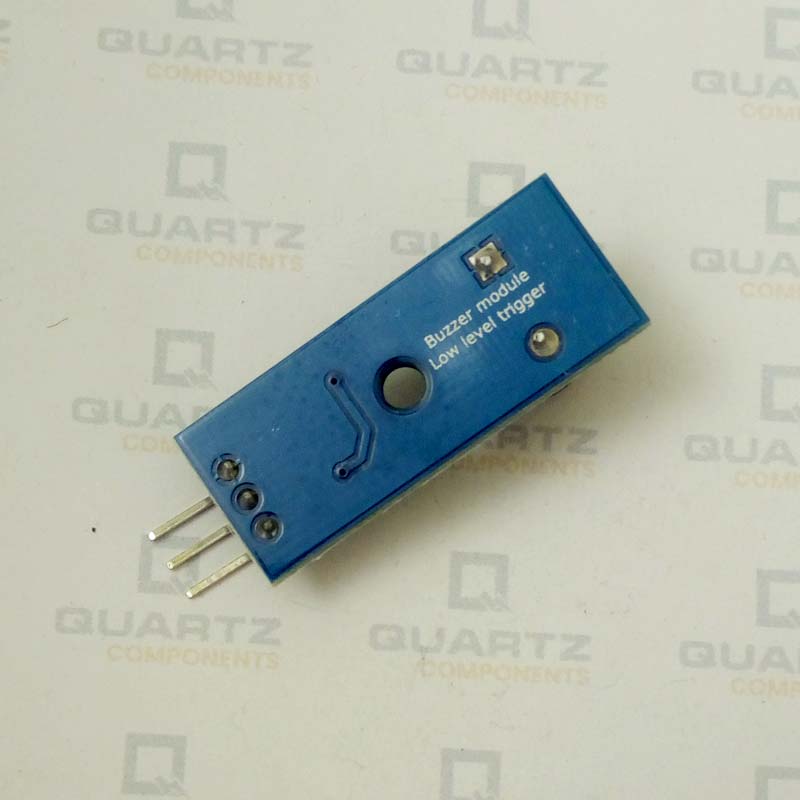

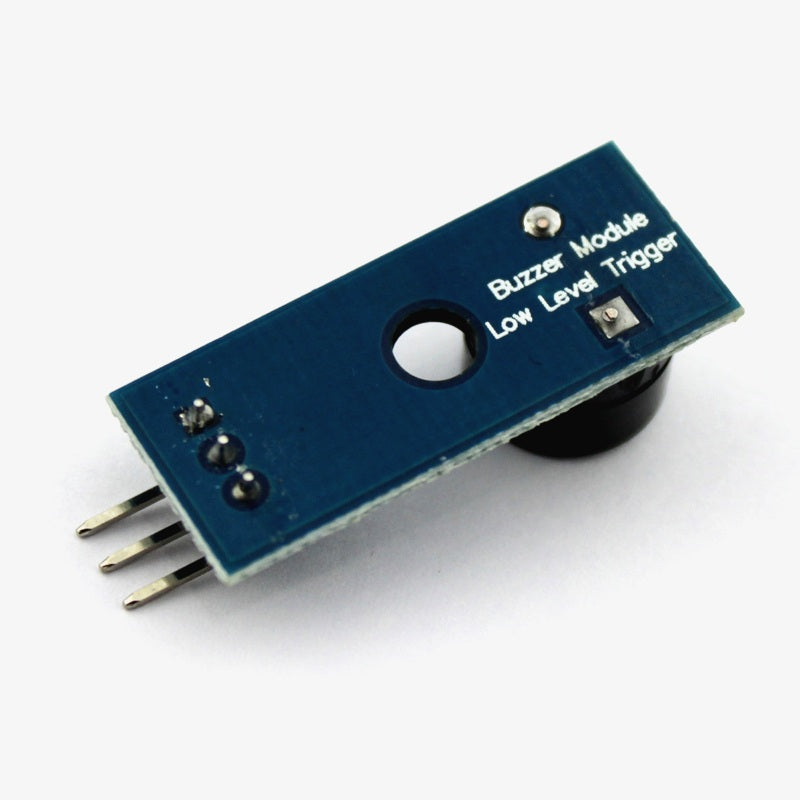

Passive Buzzer Module with PCB

This PCB Mounted Passive Buzzer Module can produce a range of sound tones depending on the input frequency on its I/O pins. Depending on the PWM Frequency from 1.5Khz to 2.5kHz it could produce a range of sounds. It is useful for notification purposes in different projects. It is a built-in construction of digital transducers.

This module could work from 4V to 8V DC and it is well suited for a broad range of microcontrollers ranging from the Arduino to Raspberry Pi. It is also compatible with a pin pitch of 2.54mm while functioning with microcontroller development boards such as the Arduino or different development boards. This module responds to programmatic changes with a lovely or annoying buzzing noise that can be altered over a range of frequencies to ensure maximum irritation in alert related systems.

Passive Buzzer Module pinout:

 Feature and Specification: -

• Operating Voltage: 4 ~ 8V DC

• Working Current: Less than 25mA

• Tone Generation Range: 1.5 ~ 2.5kHz

• Pitch:  2.54mm

• Lead Material:  Stainless Steel

Passive Buzzer Module Applications:

• Alert System
• Clocks
• Toys
• Different embedded Projects

Passive Buzzer Module Dimension:

Example Projects on Passive Buzzer Module:

Additional Resources:

Package Contains

1x Passive Buzzer Module
