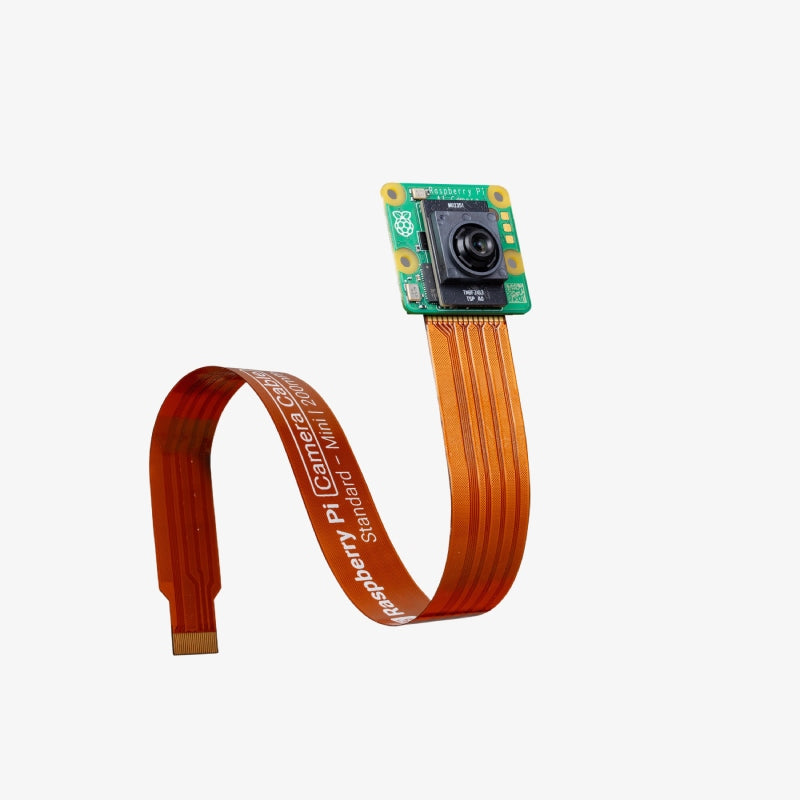

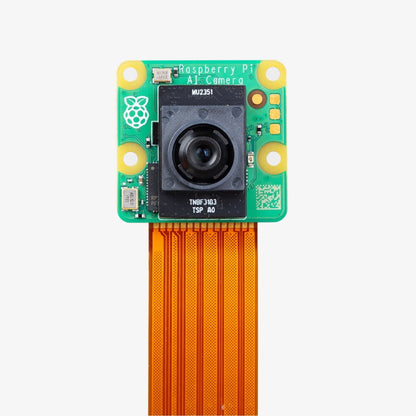

Official Raspberry Pi AI Camera with SONY IMX500 Sensor

The Raspberry Pi AI Camera, compatible with all Raspberry Pi computers, features Sony’s advanced IMX500 Intelligent Vision Sensor. This powerful sensor enables the creation of cutting-edge vision AI applications and neural network models using its on-module AI processor.

The IMX500 integrates seamlessly with Raspberry Pi's camera software stack, allowing users to deploy custom neural network models effortlessly. To help you get started, we provide a comprehensive guide for running pre-packaged or custom-made neural network models directly on the camera.

Design and develop AI models for the IMX500 Intelligent Vision Sensor in combination with Raspberry Pi, and scale up to enterprise-level deployments using AITRIOS.

Features

• 12.3 MP Sony IMX500 Intelligent Vision Sensor with an integrated neural network accelerator
• Compatible with all Raspberry Pi models via the standard camera connector cable
• Integrated RP2040 for managing neural network firmware
• Manual/mechanical adjustable focus with a 78.3° (±3°) field of view
• Compact module dimensions: 25 × 24 × 11.9 mm

Specifications

• Sensor Size: 7.857 mm
• Pixel Size: 1.55 μm × 1.55 μm
• Focal Ratio: F1.79
• Framerates:
  • 2×2 binned: 2028×1520 10-bit at 30fps
  • Full resolution: 4056×3040 10-bit at 10fps
