Raspberry Pi High Quality Camera- C/CS Mount
Raspberry Pi High Quality Camera- C/CS Mount
Couldn't load pickup availability
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

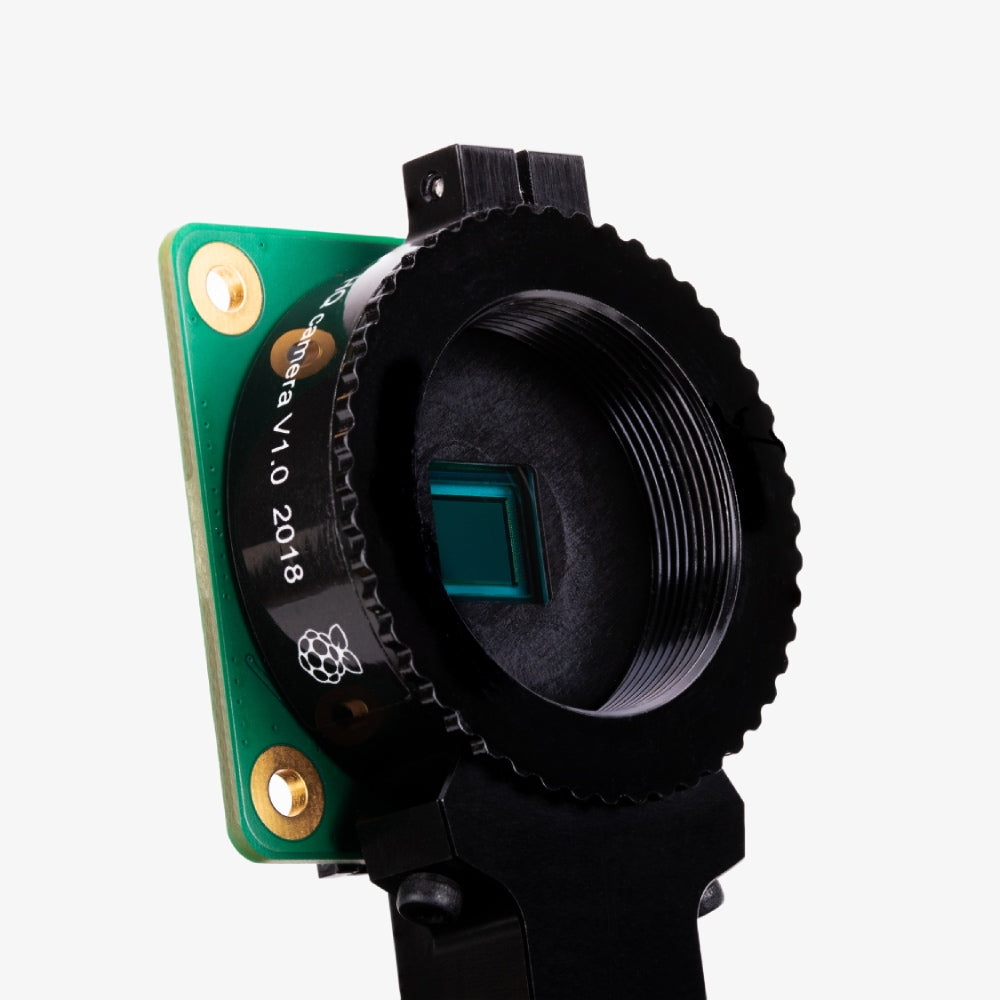

12.3 megapixel Sony IMX477 sensor, 7.9mm diagonal image size, and back-illuminated sensor architecture, with adjustable back focus. Available with your choice of C/CS mount or M12 mount.
Specifications
- Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size
- Output: RAW12/10/8
- Back focus length of lens: 2.6mm�1.8mm (M12 Mount variant), 12.5mm�2.4mm (CS Mount variant)
- Lens sensor format: 1/2.3�(7.9mm) or larger
- IR cut filter:Â Integrated
- Ribbon cable length: 200 mm
- Tripod mount: 1/4�20
Cable compatibility
All models of Raspberry Pi Zero require a Raspberry Pi Zero camera cable to connect to the Raspberry Pi High Quality Camera; the standard cable supplied with the camera is not compatible with the smaller Raspberry Pi Zero camera connector. Suitable cables are available at low cost from many Raspberry Pi Approved Resellers, and are supplied with the .

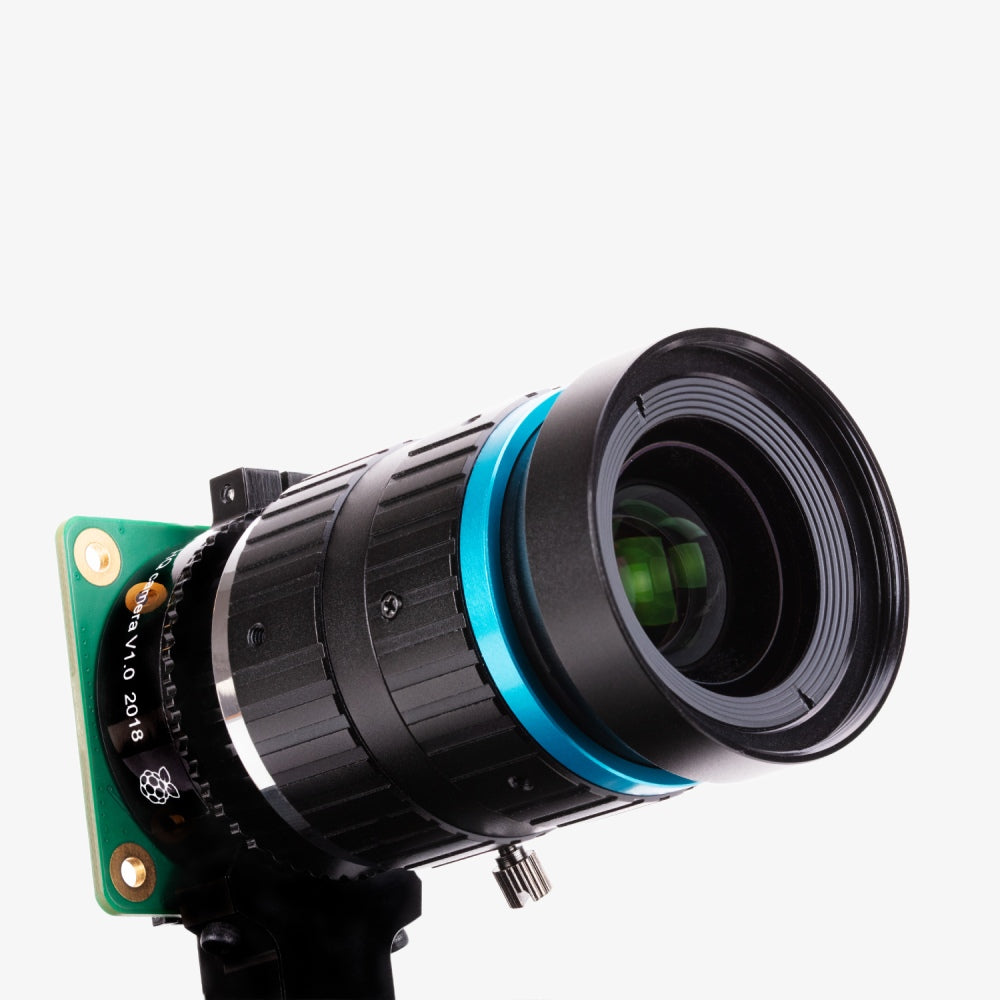

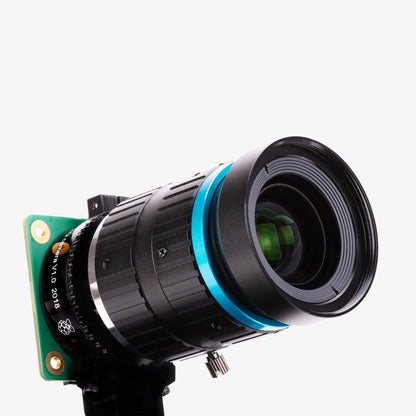

High Quality Camera CS Mount: fitting CS- and C-mount lenses
The High Quality Camera CS Mount variant is designed to accept CS-mount lenses and, with the supplied adapter, C-mount lenses. The CGL 6 mm CS-mount and 16 mm C-mount lenses are examples of third-party products that are compatible with the High Quality Camera; see step-by-step instructions for fitting these  and  lenses.
