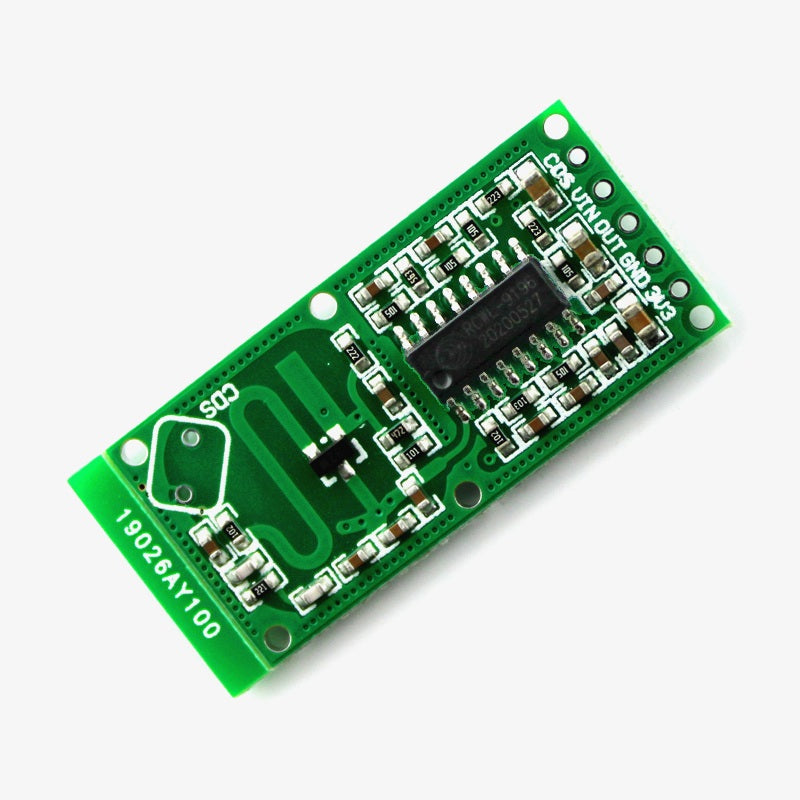

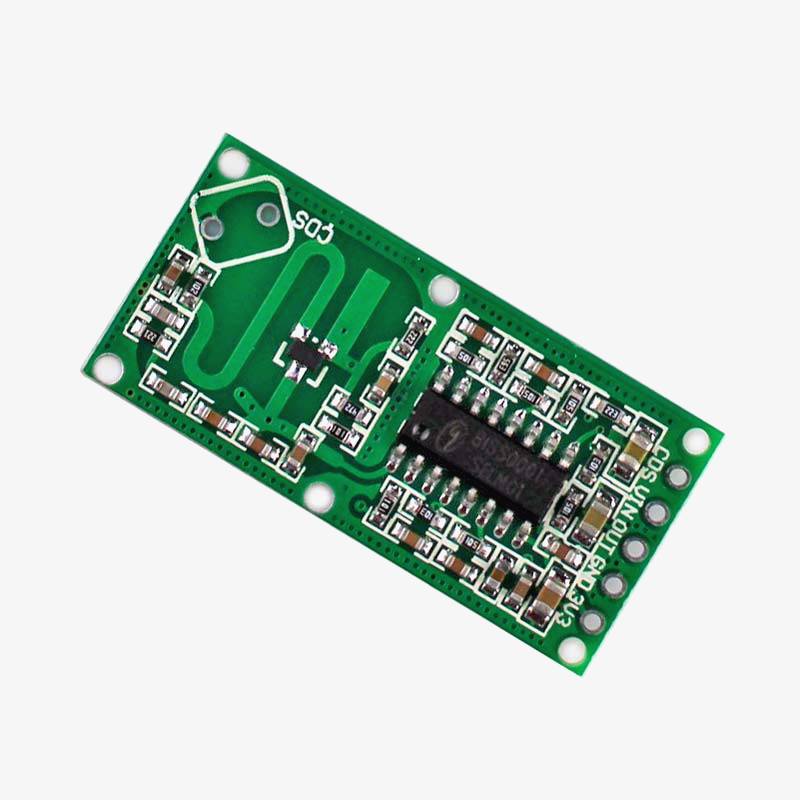

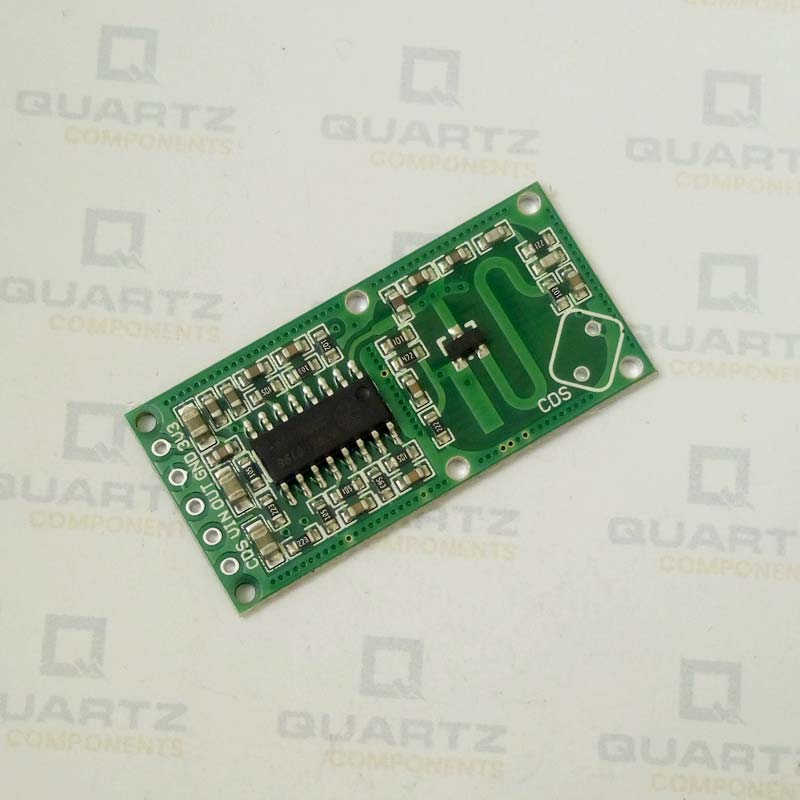

RCWL-0516 Microwave RADAR Sensor

Like the traditional PIR sensor, RCWL-0516 is a widely popular sensor that also detects movements and is used in Alarms or for security purposes. This sensor uses a â€?strong>microwave Doppler radarâ€?technique to detect moving objects within its range. It has a sensitivity range of ~7 meters and that is very useful for multiple applications.

When triggered, its TTL-level output pin changes state from LOW which is 0V to HIGH which is 3.3 V. The changed HIGH state remains HIGH for 2 to 3s which is a proper time to trigger something. As this sensor module provides output for 3.3V, it can easily be interfaced in with many microcontrollers and even can be used without a microcontroller. It has a power supply input range from 4 to 28 V.

RCWL-0516 pinout:

Specification: -

• Operating Voltage (VDC): 4 ~ 28V

• Max. Operating Current (mA): 3

• Detecting Range:  5-9m

• Transmitting Power  : 20mW (typical); 30mW (max)

• Output Voltage(V)     :  3.2 ~ 3.4

• Output Voltage Driving Capacity :  100mA

• Trigger Way   :  Repeat Trigger

• Output Control Low Level   : 0V

• Output Control High Level   : 3.3V

• Operating Temperature (°C)            : -20 to 80

• Adjustable Block time and distance
• Penetrating detection capability, compared with the traditional infrared feeling PIR.

RCWL-0516 Dimension and footprint:

Application:

1. Security
2. Motion and Movement Detection
3. Alarm System
4. Indoor Tracking System

Package Contains

1x RCWL-0516 RADAR Sensor Module
