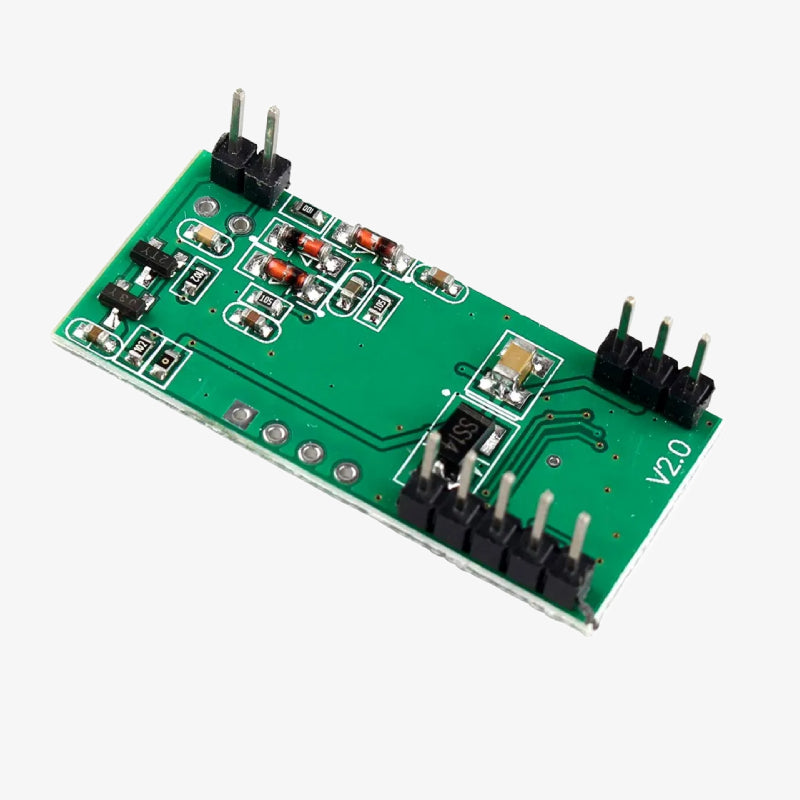

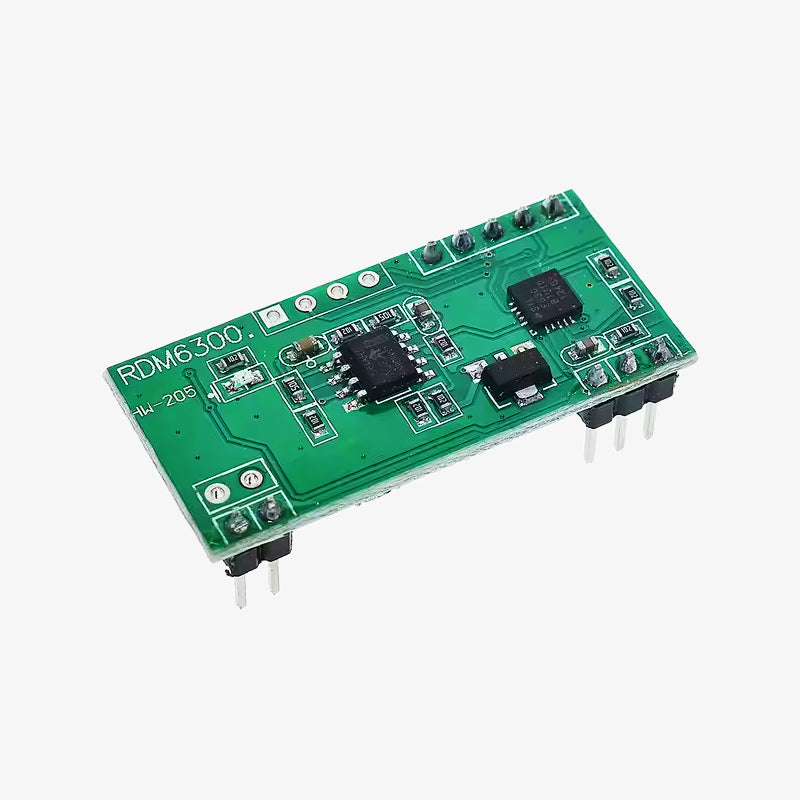

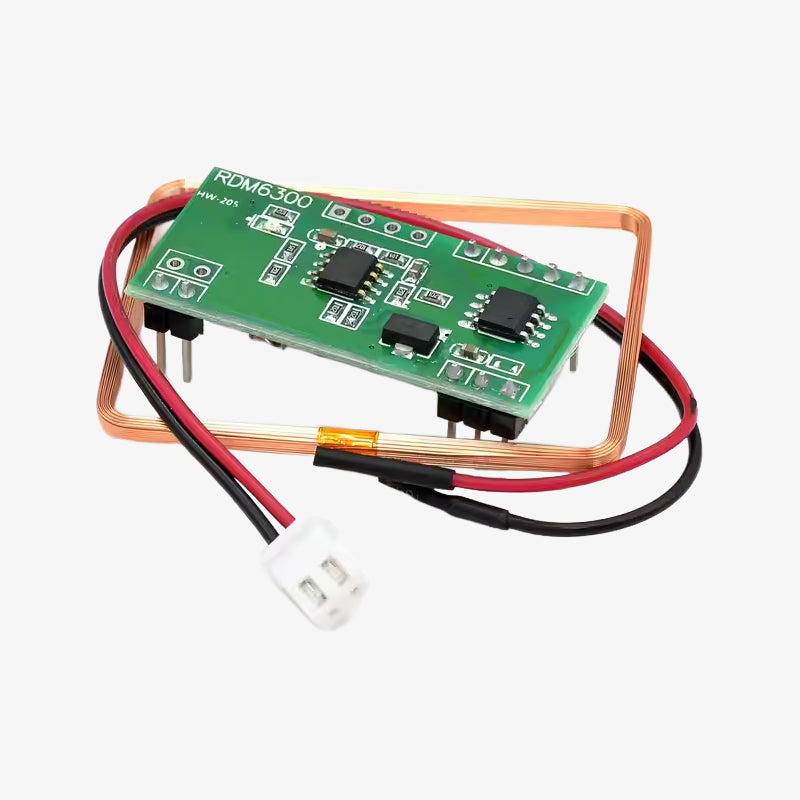

RDM6300 125KHz EM4100 RFID Card ID Reader Module

The RDM6300 is a compact and reliable 125KHz RFID card reader module designed for reading EM4100 series RFID cards and tags. It offers a simple UART serial interface, making it easy to integrate into various electronic projects and access control systems. With its small form factor and stable performance, the RDM6300 is ideal for security systems, attendance tracking, and identification applications.

Features of RDM6300 RFID Reader Module:

1. Supports 125KHz RFID cards and tags (EM4100 compatible)
2. Easy-to-use UART (TTL) serial communication
3. Compact and lightweight design
4. Low power consumption for battery-operated devices
5. High stability and fast response
6. Suitable for access control, security systems, and embedded projects

Specifications of RDM6300 RFID Reader Module:

• Operating Frequency: 125KHz
• Supported Cards: EM4100 compatible
• Communication Interface: UART (TTL Level)
• Baud Rate: 9600bps
• Power Supply: 5V DC
• Operating Current: â‰?50mA
• Reading Distance: Up to 5cm (depends on tag and environment)


Package Includes:

1 x RDM6300 125KHz EM4100 RFID Card ID Reader Module
