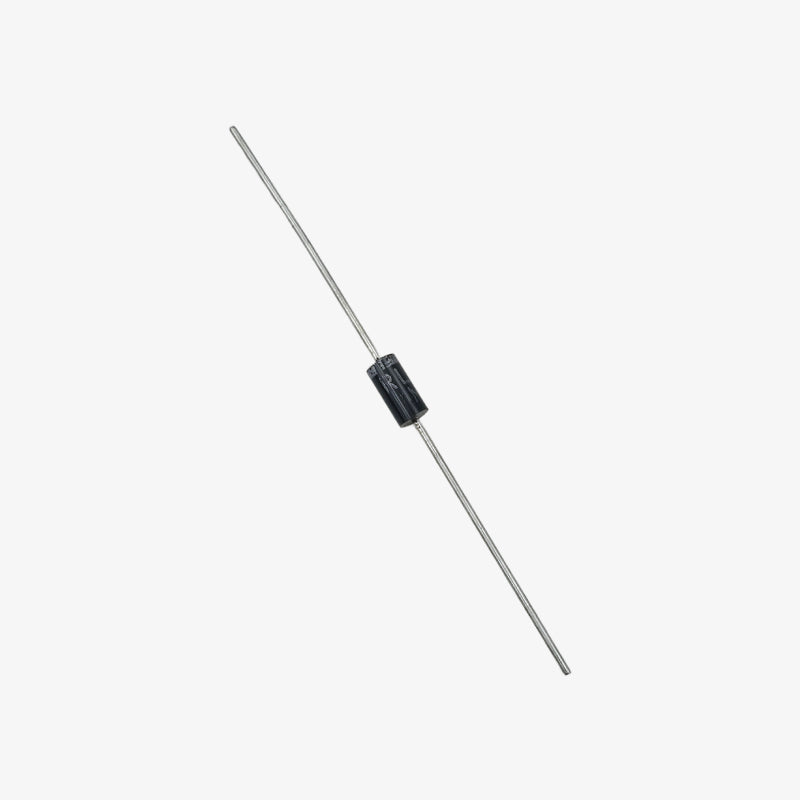

RL207 General Purpose Silicon Rectifier Diode 2A

The RL207 General Purpose Silicon Rectifier Diode 2A is designed for dependable AC to DC rectification in general power applications. Its molded DO-15 body ensures consistent thermal stability under varied load conditions. Ideal for adapters, chargers, and low frequency rectifier circuits.

Features:

1. Provides strong 2A rectification for medium-power conversion tasks

2. Maintains stable conduction with controlled forward voltage behavior

3. Constructed with a durable DO-15 body for improved thermal reliability

4. Engineered with flame-retardant materials for enhanced operational safety

Specifications:

• Maximum Peak Reverse Voltage (VRRM): 1000 V

• Maximum RMS Voltage: 700 V

• Maximum DC Blocking Voltage: 1000 V

• Average Forward Rectified Current (IO): 2.0 A

• Peak Forward Surge Current (IFSM): 70 A

• Forward Voltage at 2A (VF): 1.0 V

• Peak Reverse Current at 25°C (IR): 5 µA

• Peak Reverse Current at 100°C (IR): 50 µA

• Typical Junction Capacitance: 20 pF

• Thermal Resistance (RθJA): 40 °C/W

• Operating Temperature Range: -65°C to +125°C

• Package Type: DO-15 molded plastic

• Packing Qty: 3000

Package Includes:

1 × RL207 General Purpose Silicon Rectifier Diode 2A
