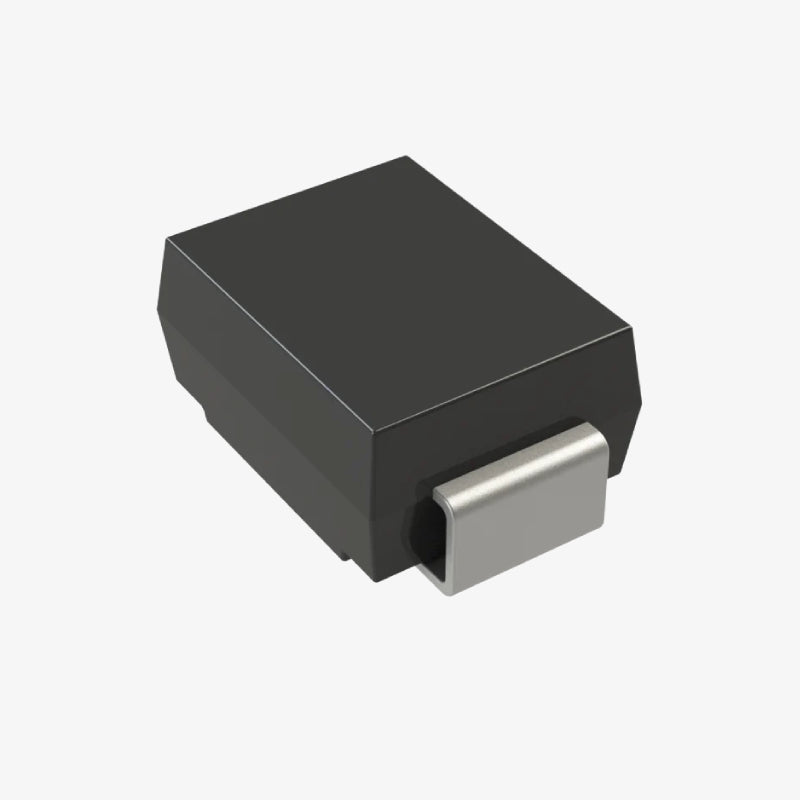

S1M 1A Glass Passivated Rectifier - SMD Package (Pack of 10)

The S1M 1A Glass Passivated Rectifier - SMD Package is designed for reliable AC to DC rectification in compact surface-mount applications. Its low-profile SMA package ensures stable performance across automated assembly and general power circuits. Ideal for power supplies, inverters, and automotive or telecommunication applications.

Features:

1. Low-profile SMA package for easy automated placement

2. Glass passivated pellet chip junction for durability

3. Low forward voltage drop and leakage for efficient operation

4. High forward surge capability with MSL level 1 compliance

Specifications:

• Maximum Recurrent Peak Reverse Voltage (VRRM): 1000 V

• Maximum RMS Voltage (VRMS): 700 V

• Maximum DC Blocking Voltage (VDC): 1000 V

• Maximum Average Forward Rectified Current (IF(AV)): 1.0 A

• Peak Forward Surge Current (IFSM): 30 A

• Non-Repetitive Peak Reverse Avalanche Energy (EAS): 5 mJ

• Forward Voltage (VF): 1.1 V

• Maximum Reverse Current (IR) at 25°C: 1 µA

• Maximum Reverse Current (IR) at 100°C: 5 µA
• Operating Temperature Range (TJ, TSTG): -55°C to +175°C


Package Includes:

10pcs × S1M 1A Glass Passivated Rectifier - SMD Package
