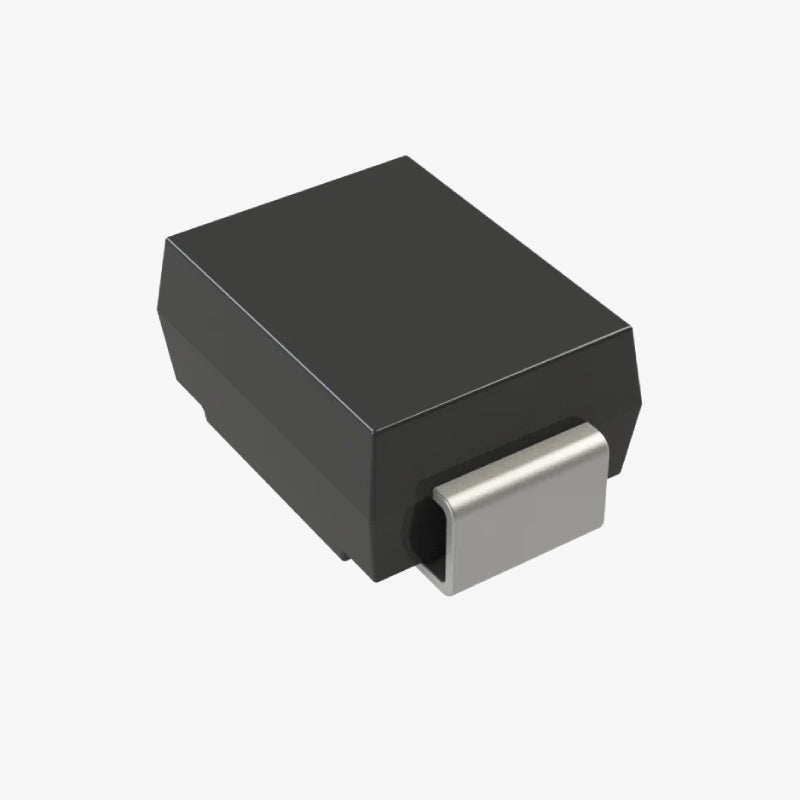

S2M 2A Glass Passivated Rectifier - SMD Package (Pack of 10)

The S2M 2A Glass Passivated Rectifier - SMD Package is designed for dependable AC to DC rectification in compact surface-mount applications. Its low-profile construction ensures stable performance in automated assembly and general power circuits. Ideal for power supplies, inverters, and automotive or telecommunication applications.

Features:

1. Low-profile SMD package optimized for automatic placement

2. Glass passivated die construction for durability and reliability

3. Low forward voltage drop and power loss for efficient operation

4. Built-in strain relief with halogen-free, UL 94V-0 compliant plastic case

Specifications:

• Maximum Recurrent Peak Reverse Voltage (VRRM): 1000 V

• Maximum RMS Voltage (VRMS): 700 V

• Maximum DC Blocking Voltage (VDC): 1000 V

• Maximum Average Forward Rectified Current (IF(AV)): 2.0 A

• Peak Forward Surge Current (IFSM): 60 A

• Forward Voltage (VF) at 2A: 1.1 V

• Peak Reverse Current (IR) at 25°C: 5 µA

• Peak Reverse Current (IR) at 125°C: 200 µA

• Reverse Recovery Time (trr): 2.5 µs

• Typical Junction Capacitance (CJ): 30 pF

• Typical Thermal Resistance Junction to Lead (RθJL): 16 °C/W

• Operating Temperature Range (TJ, TSTG): -55°C to +150°C

Package Includes:

10 pcs × S2M 2A Glass Passivated Rectifier - SMD Package
