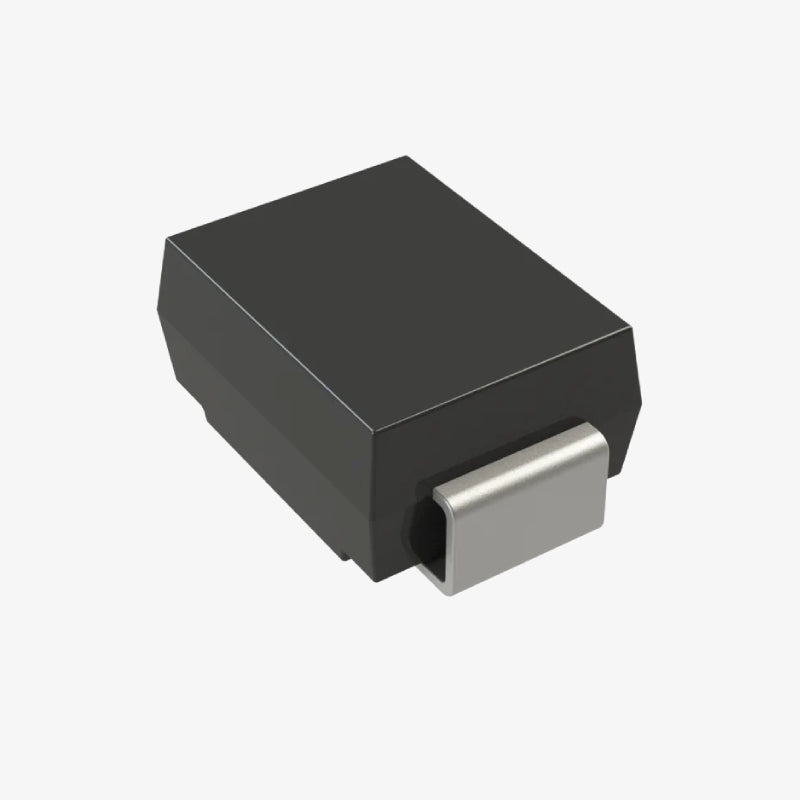

S3M 3A Glass Passivated Rectifier - SMD Package (Pack of 10)

The S3M 3A Glass Passivated Rectifier - SMD Package is designed for reliable AC to DC rectification in compact surface-mount applications. Its low-profile DO-214AC package ensures stable performance in automated assembly and high-current circuits. Ideal for power supplies, inverters, and automotive or telecommunication applications.

Features:

1. Low-profile DO-214AC package for easy automated placement

2. Glass passivated chip junctions for durability

3. Low forward voltage drop and leakage for efficient operation

4. High forward surge capability with RoHS compliance and high-temperature soldering tolerance

Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 V

• Maximum RMS Voltage (VRMS): 700 V

• Maximum DC Blocking Voltage (VDC): 1000 V

• Maximum Average Forward Rectified Current (IF(AV)): 3.0 A

• Peak Forward Surge Current (IFSM): 100 A

• Forward Voltage (VF) at 3A: 0.98 â€?1.10 V

• Maximum Reverse Current (IR) at 25°C: 5 µA

• Maximum Reverse Current (IR) at 125°C: 50 µA

• Typical Junction Capacitance (CJ): 15 pF

• Thermal Resistance Junction to Ambient (RθJA): 107 °C/W

• Thermal Resistance Junction to Lead (RθJL): 35 °C/W

• Operating Temperature Range (TJ, TSTG): -55°C to +150°C


Package Includes:

10 pcs × S3M 3A Glass Passivated Rectifier - SMD Package
