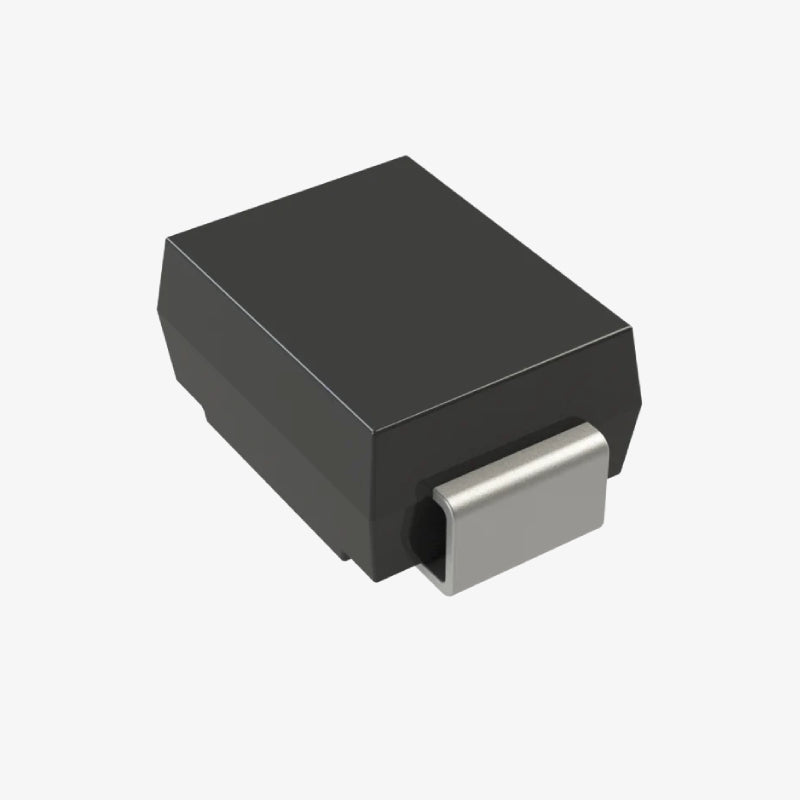

S5M 5A Glass Passivated Rectifier - SMD Package (Pack of 10)

The S5M 5A Glass Passivated Rectifier - SMD Package is built for reliable AC to DC rectification in compact surface-mount applications. Its low-profile JEDEC DO-214AA package ensures stable performance for automated assembly and high-current circuits. Ideal for power supplies, inverters, and automotive or telecommunication applications.

Features:

1. Low-profile SMD package suitable for automated placement

2. Glass passivated chip junction for enhanced durability

3. Low forward voltage drop and leakage current for efficient operation

4. High forward surge capability with high-temperature soldering compliance

Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 V

• Maximum RMS Voltage (VRMS): 700 V

• Maximum DC Blocking Voltage (VDC): 1000 V

• Maximum Average Forward Rectified Current (IF(AV)): 5.0 A

• Peak Forward Surge Current (IFSM): 100 A

• Forward Voltage (VF) at 5 A: 0.98 â€?1.10 V

• Maximum Reverse Current (IR) at 25°C: 5 µA

• Maximum Reverse Current (IR) at 125°C: 50 µA

• Typical Junction Capacitance (CJ): 60 pF

• Thermal Resistance Junction to Lead (RθJL): 20 °C/W

• Operating Temperature Range (TJ, TSTG): -55°C to +150°C


Package Includes:

10 pcs × S5M 5A Glass Passivated Rectifier - SMD Package
