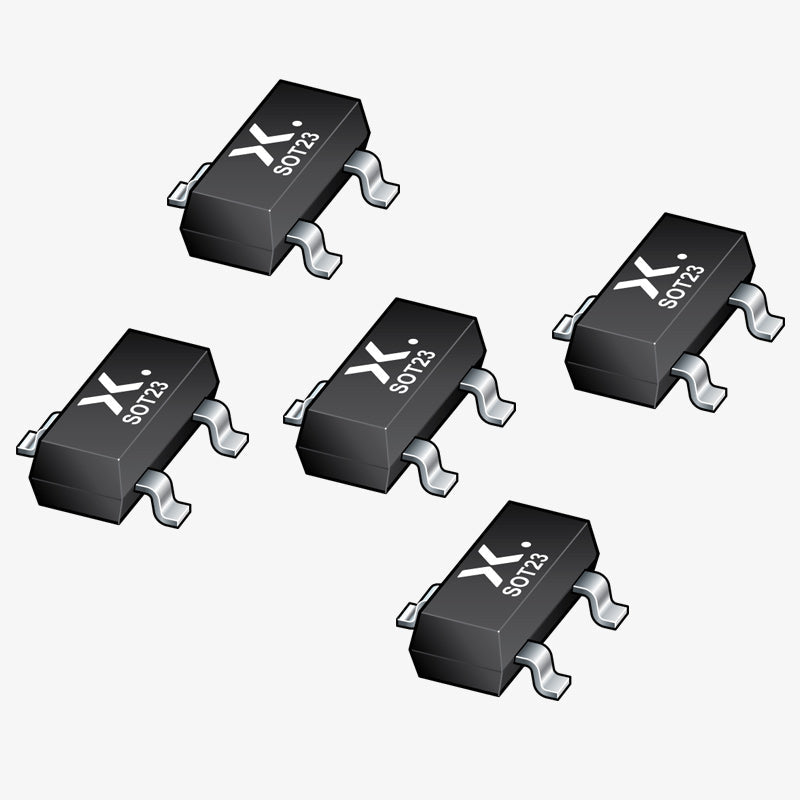

S8050 NPN General Purpose Transistor SOT23 (Pack of 5)

The S8050 NPN Transistor is commonly used in various electronic circuits for its amplification and switching capabilities. Its NPN configuration allows it to control larger currents and voltage levels based on a smaller input signal. This makes it useful for applications like signal amplification, signal modulation, and low-power switching.

In circuits, the S8050 can be used as a basic amplifier, signal conditioner, or a switch. Its compact SOT23 package enhances its suitability for designs with limited space, making it a versatile choice for both hobbyists and professionals in electronics.

Integrate the S8050 NPN Transistor into your electronic projects to achieve reliable and precise signal control. Its combination of compact size, robust specifications, and proven performance makes it an essential component in modern electronic design and innovation. (S8050 is also available in )

Specifications:

• Transistor Type: NPN
• Package: SOT23
• Maximum Collector Current (IC): 700mA
• Maximum Collector-Emitter Voltage (VCEO): 25V
• Maximum Collector- Base Voltage (VCBO): 40 V
• Maximum Emitter-Base Voltage (VEBO): 5V
• DC Current Gain (hFE): 120 - 300
• Power Dissipation (PD): 300 mW
• Transition Frequency (fT): 150MHz
• Operating Temperature Range: -55°C to +150°C
• Pin Configuration: 3-pin SOT23 package

Package Includes:

1 X S8050 NPN General Purpose Transistor SOT23 (Pack of 5)
