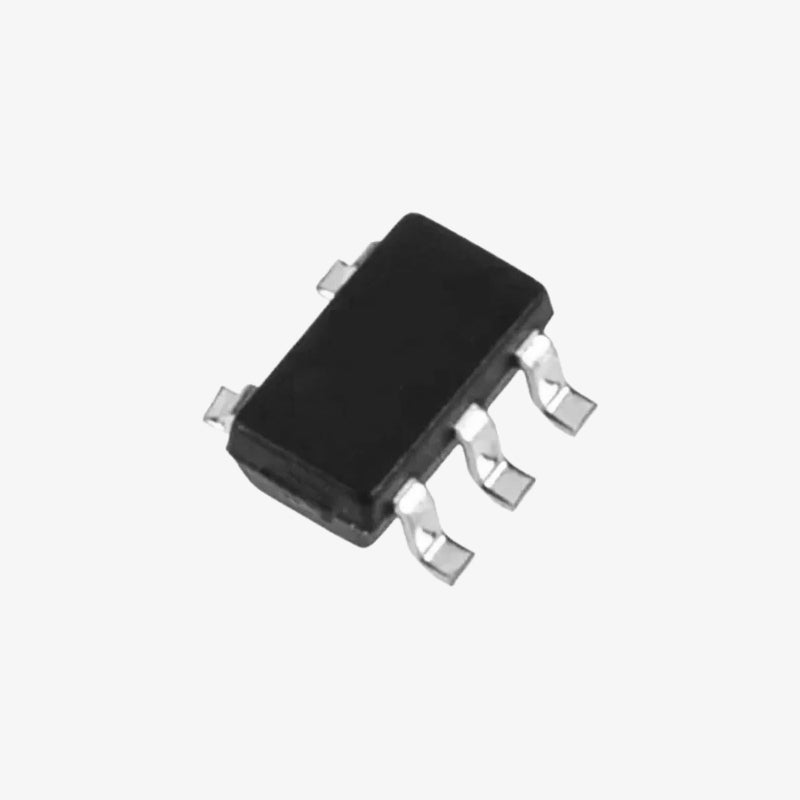

SGM2019-ADJYN5G/TR Adjustable Output LDO Voltage Regulator - SOT-23-5 SMD Package

SGM2019-ADJYN5G/TR Adjustable Output LDO Voltage Regulator - SOT-23-5 SMD Package

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The SGM2019-ADJYN5G/TR is a high-performance, adjustable low-dropout (LDO) voltage regulator, offering output voltages from 1.2V to 5V. Housed in a compact SOT-23-5 SMD package, it delivers excellent load/line regulation and low noise, making it ideal for RF, battery-powered, and precision analog applications. With its fast transient response and low quiescent current, the SGM2019 ensures stable and efficient performance in space-constrained designs.

Features of SGM2019-ADJYN5G/TR Voltage Regulator:

  1. Adjustable output voltage range from1.2V to 5.0V
  2. Low dropout voltage and low noise operation
  3. Very low quiescent current for power-sensitive designs
  4. Fast transient response and high output accuracy
  5. Thermal shutdown and current limit protection
  6. Suitable for RF modules, wireless devices, and portable electronics

Specifications of SGM2019-ADJYN5G/TR Voltage Regulator:

  • Input Voltage Range: 2.5V to 5.5V
  • Output Voltage Range: 1.2V to 5.0V (adjustable)
  • Output Current: Up to 300mA
  • Dropout Voltage: 160mV typical at 300mA
  • Quiescent Current: 35µA typical
  • Package: SOT-23-5 (Surface Mount Device)
  • Operating Temperature Range: -40°C to +125°C

Package Includes:

1 x SGM2019-ADJYN5G/TR Adjustable Output LDO Voltage Regulator (SOT-23-5 SMD Package)
