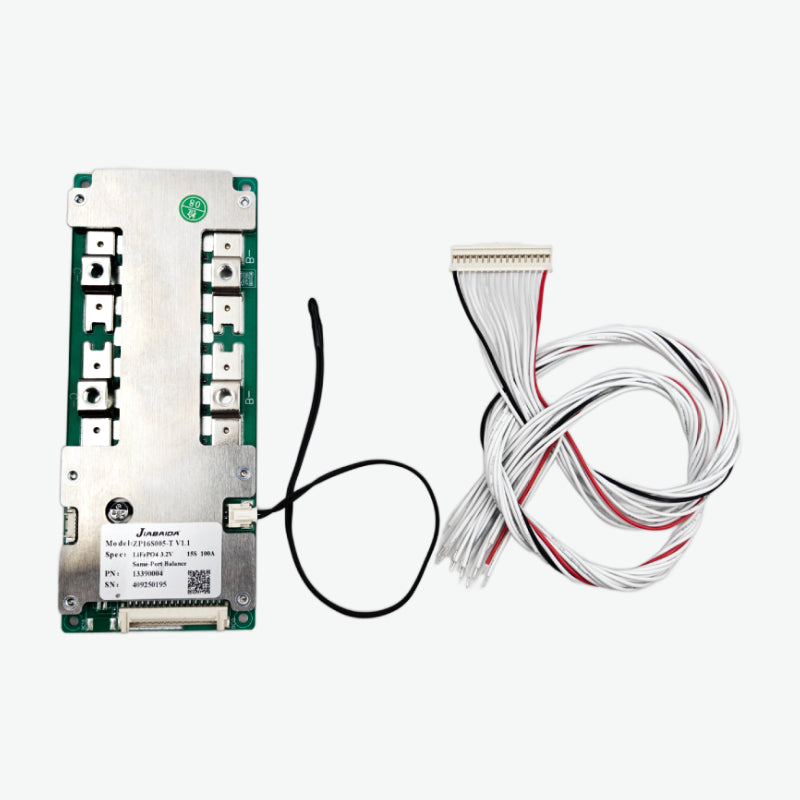

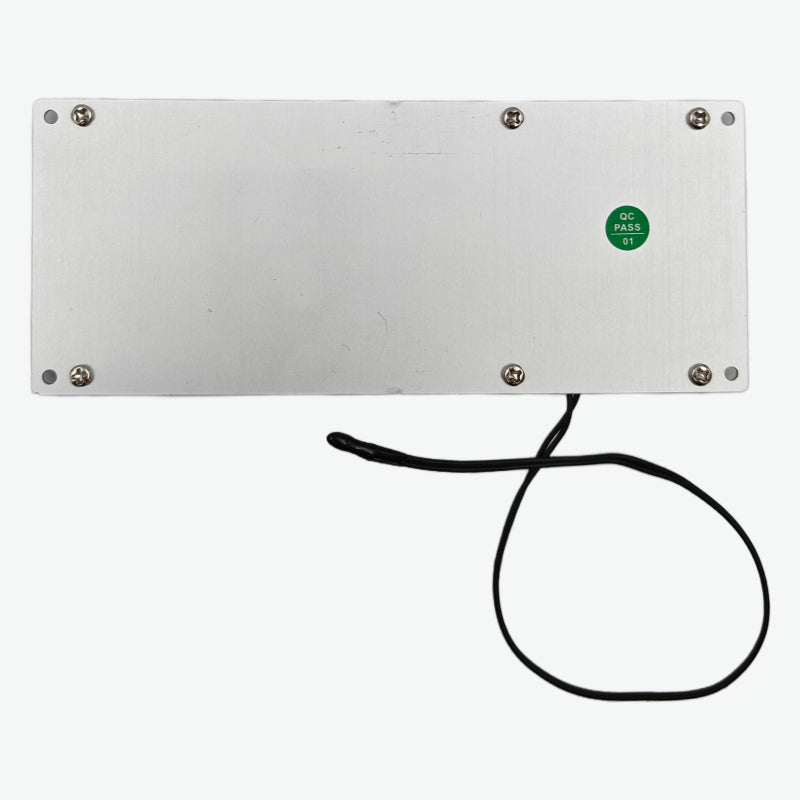

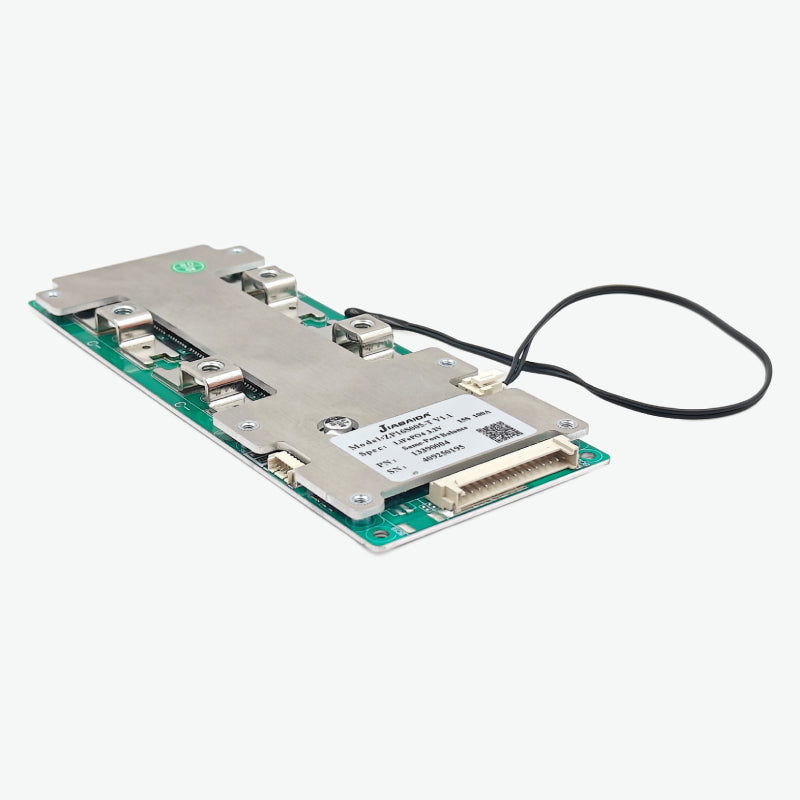

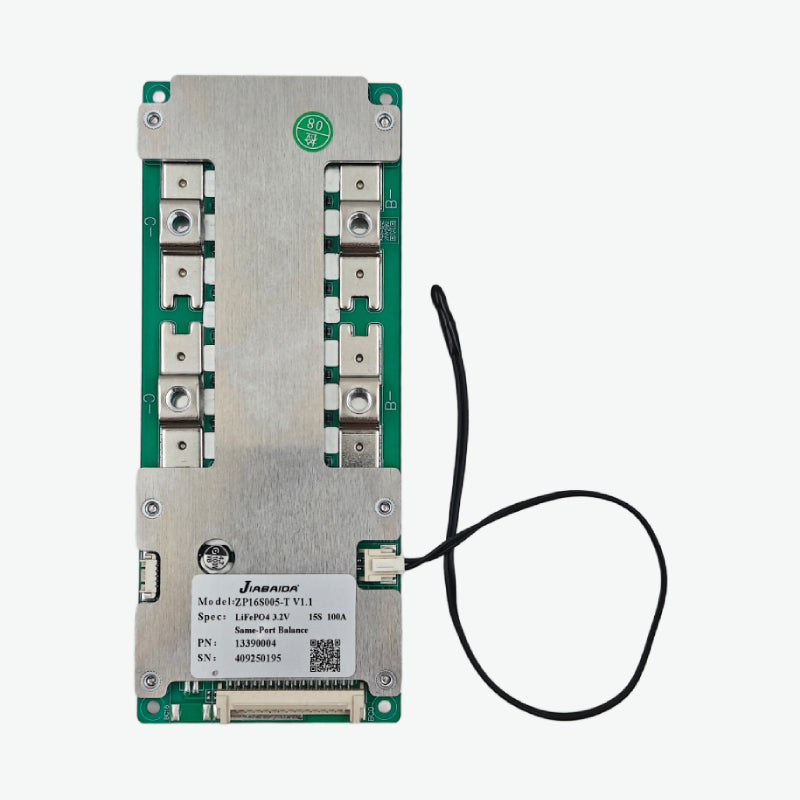

Jiabaida (JBD) LiFePo4 15S 48V 100A Battery Management System - BMS Protection Board

Jiabaida (JBD) LiFePo4 15S 48V 100A Battery Management System - BMS Protection Board

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

Jiabaida (JBD) LiFePo4 15S 48V 100A BMS is a high-performance Battery Management System built on the ZP16S005 hardware, tailored for 15-cell LiFePo4 battery packs in high-load applications. It features passive balancing, and robust multi-level protection including overcharge, over-discharge, overcurrent, and short-circuit safeguards. Designed to deliver reliable and efficient battery management, this BMS is ideal for electric vehicles, solar energy storage, and high-capacity power tools.

Jiabaida (JBD) LiFePo4 15S 48V 100A BMS Features:

  • High 100A continuous discharge capability
  • Intelligent passive cell balancing
  • Protection against over-voltage, under-voltage, overcurrent, and short circuit
  • ZP16S005 hardware ensures stable, accurate operation
  • Ideal for high-demand LiFePo4 battery systems

Jiabaida (JBD) LiFePo4 15S 48V 100A BMS Specification:

Specification Value
Model ZP16S005
Supported Cells 15S (LiFePo4)
Nominal Voltage (V) 48V
Charge Voltage (V) 54.75V
Charge Current (A) 30A
Continuous Discharge Current (A) 100A
Balance Current (mA) 30 ±5
Overcharge Detect Voltage (V) 3.75 ±0.05
Overcharge Release Voltage (V) 3.55 ±0.05
Over Discharge Detect Voltage (V) 2.20 ±0.1
Over Discharge Release Voltage (V) 2.50 ±0.1
Operating Temperature (°C) -20 to 70
Dimensions (mm) 160 x 65 x 8



Package Includes:

1 x Jiabaida (JBD) LiFePo4 15S 48V 100A Battery Management System - BMS Protection Board
