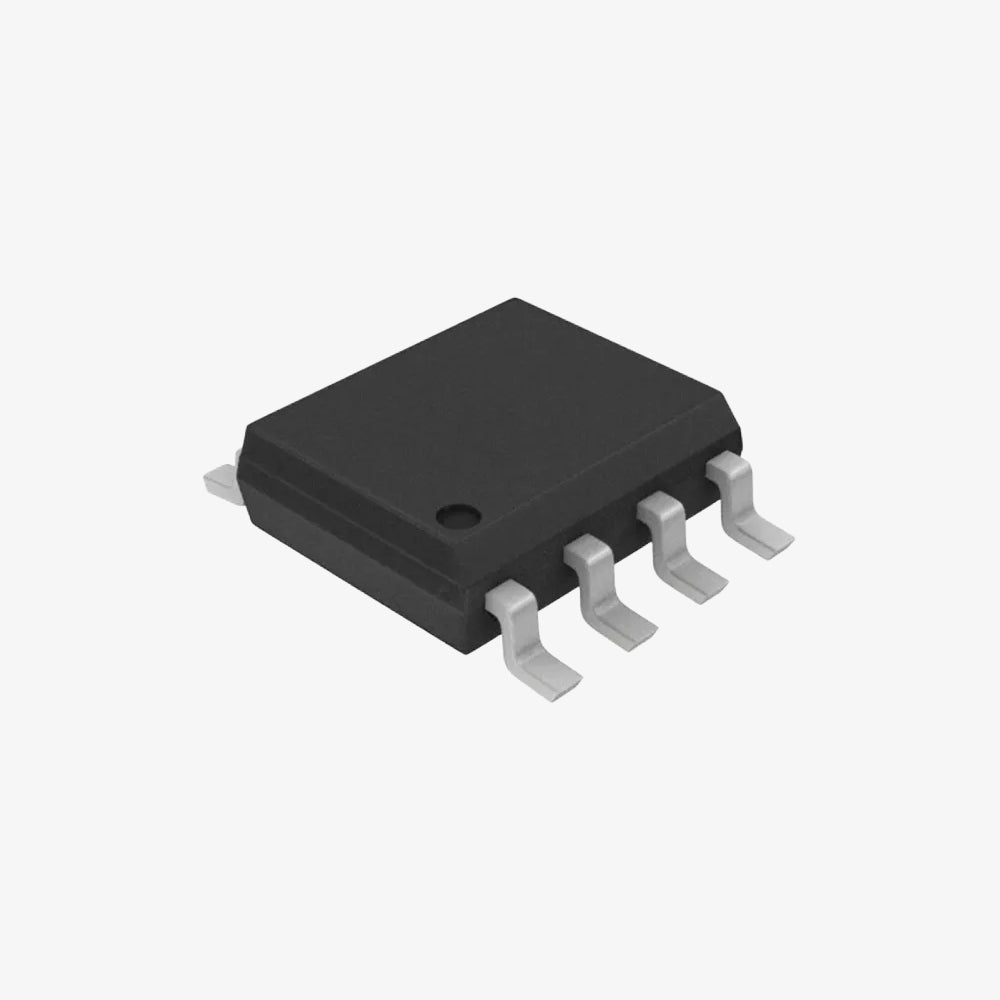

SN75176B RS485/RS422 Transceiver IC - SOIC-8 SMD Package

The SN75176B is a differential bus transceiver designed for balanced data transmission and reception in multipoint bus transmission systems. It is compatible with both RS-485 and RS-422 standards and supports bidirectional communication on multipoint data lines. With a wide common-mode voltage range and high noise immunity, it is ideal for industrial and communication applications requiring reliable data exchange over long distances.

Features of SN75176B RS485/RS422 Transceiver IC:

1. Compatible with RS-485 and RS-422 standards
2. Differential driver and receiver in a single 8-pin package
3. Operates from a single 5V supply
4. High-speed operation with data rates up to 10 Mbps
5. Wide common-mode input voltage range: -7V to +12V
6. Low power consumption with ±60mA driver output capability
7. Tri-state receiver and driver outputs for bus sharing
8. Thermal shutdown protection for reliability in harsh environments
9. Compact SOIC-8 surface-mount package for easy PCB integration

Specifications of SN75176B RS485/RS422 Transceiver IC:

• Model: SN75176B
• Function: RS-485/RS-422 differential bus transceiver
• Supply Voltage: 5V
• Data Rate: Up to 10 Mbps
• Input Voltage Range: -7V to +12V
• Driver Output Current: ±60mA
• Operating Temperature Range: 0°C to +70°C
• Package: SOIC-8 â€?SMD

Package Includes:

1 × SN75176B RS485/RS422 Transceiver IC â€?SOIC-8 Package
