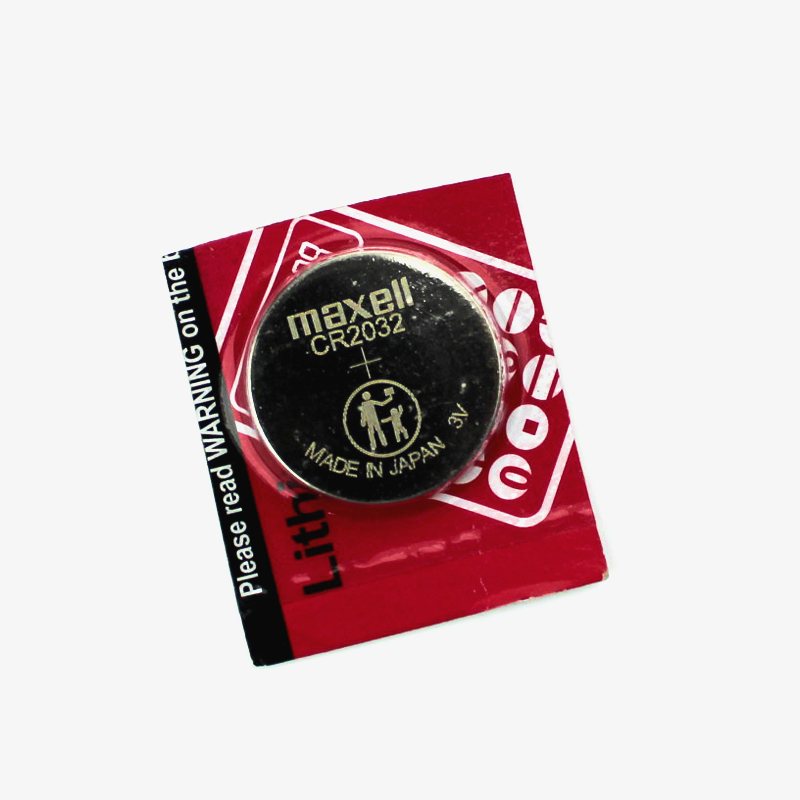

Maxell CR2032 Lithium Cell 3V

Maxell CR2032 Lithium Manganese Dioxide Battery is an excellent choice for RTC or Computer Battery that supports relatively high capacity and low cutoff voltage than its counterparts.

These 3V batteries have 220mAH of capacity with a standard discharge current of 0.2mA. This battery can be utilized upto 2.0V cutoff voltage. That means this battery could discharge fully upto 2.0V cutoff.

The tentative discharge time for this battery is 800 hours approximately for a load of 10kOhms and 1250 hours for 15kOhms load. This battery has a 20mm diameter with 3.2mm of thickness (Height).

Pinouts:

Specifications and Features:

1. Nominal Voltage - 3V.
2. Nominal Capacity: 220mAH
3. Nominal Discharge current: 0.2mA
4. Voltage at fully Discharge : 2.0 V
5. Diameter : 20mm
6. Height : 3.2mm
7. Battery Weight: 3.2gm (Approx)

Dimension:
