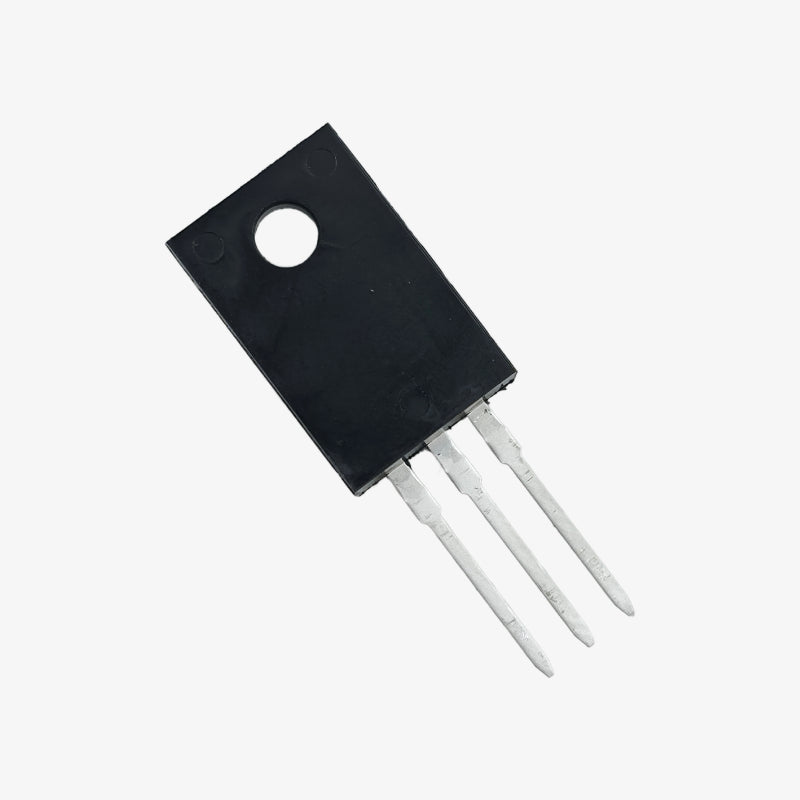

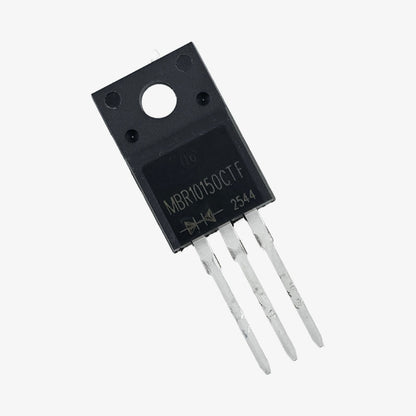

SR10150 Schottky Barrier Rectifier 10A

The SR10150 Schottky Barrier Rectifier 10A is designed for high-efficiency, low-loss AC to DC rectification. Its Schottky barrier structure provides fast switching and minimal forward voltage drop, making it ideal for power supplies, battery chargers, and high-current low-voltage systems.

Features:

1. Schottky barrier chip for fast, efficient rectification

2. Low forward voltage drop for reduced power loss

3. High surge current capability for robust operation

4. Polarity marking on package for easy identification

Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): 150 V

• Maximum RMS Voltage (VRMS): 105 V

• Maximum DC Blocking Voltage (VDC): 150 V

• Maximum Average Forward Rectified Current (IF(AV)): 10 A

• Peak Forward Surge Current (IFSM): 110 A

• Forward Voltage (VF): 0.85 V

• Peak Reverse Current (IR) at 25°C: 0.1 mA

• Peak Reverse Current (IR) at 100°C: 20 mA

• Typical Junction Capacitance (CJ): 200 pF

• Typical Thermal Resistance (RθJA): 2.0 °C/W

• Operating Temperature Range (TJ): -55°C to +175°C

• Storage Temperature Range (TSTG): -55°C to +175°C


•  TO-220-3 Package

Package Includes:

1 × SR10150 Schottky Barrier Rectifier 10A
