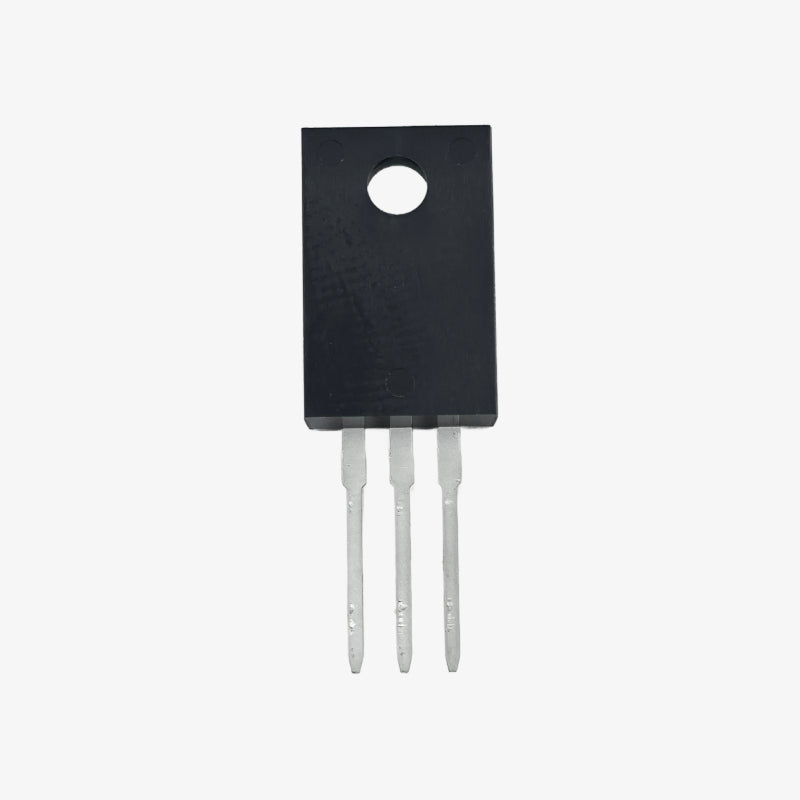

SR1080 Schottky Barrier Diode 10A TO-220AB Package

The SR1080 Schottky Barrier Rectifier Diode 10A is built for efficient high-current rectification with low forward losses and fast switching capability. Its Schottky barrier construction ensures minimal power dissipation and stable thermal performance, making it ideal for low-voltage, high-efficiency power applications.

Features:

1. Schottky barrier chip for low forward voltage drop

2. High efficiency with reduced power loss

3. Strong surge current capability for demanding loads

4. Guard-ring construction for enhanced reliability

Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): 60 V

• Maximum RMS Voltage (VRMS): 42 V

• Maximum DC Blocking Voltage (VDC): 60 V

• Maximum Average Forward Rectified Current (IF(AV)): 10 A

• Peak Forward Surge Current (IFSM): 100 A

• Forward Voltage (VF): 0.80 V

• Peak Reverse Current (IR) at 25°C: 0.1 mA

• Peak Reverse Current (IR) at 100°C: 20 mA

• Typical Junction Capacitance (CJ): 280 pF

• Typical Thermal Resistance (RθJA): 3.0 °C/W

• Operating Temperature Range (TJ): -55°C to +150°C

• Storage Temperature Range (TSTG): -55°C to +150°C


Package Includes:

1 × SR1080 Schottky Rectifier Diode 10A
