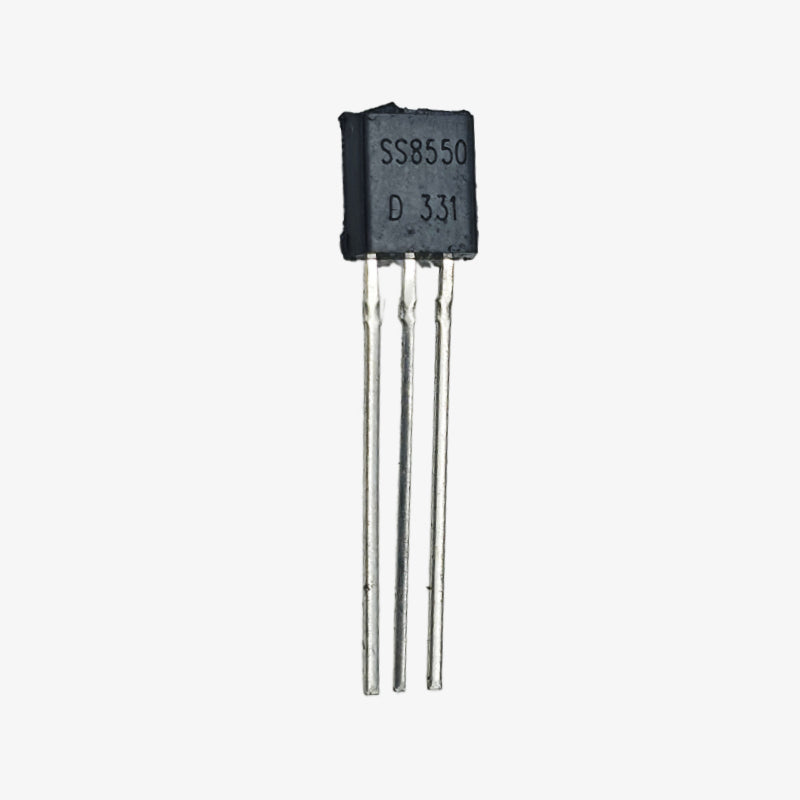

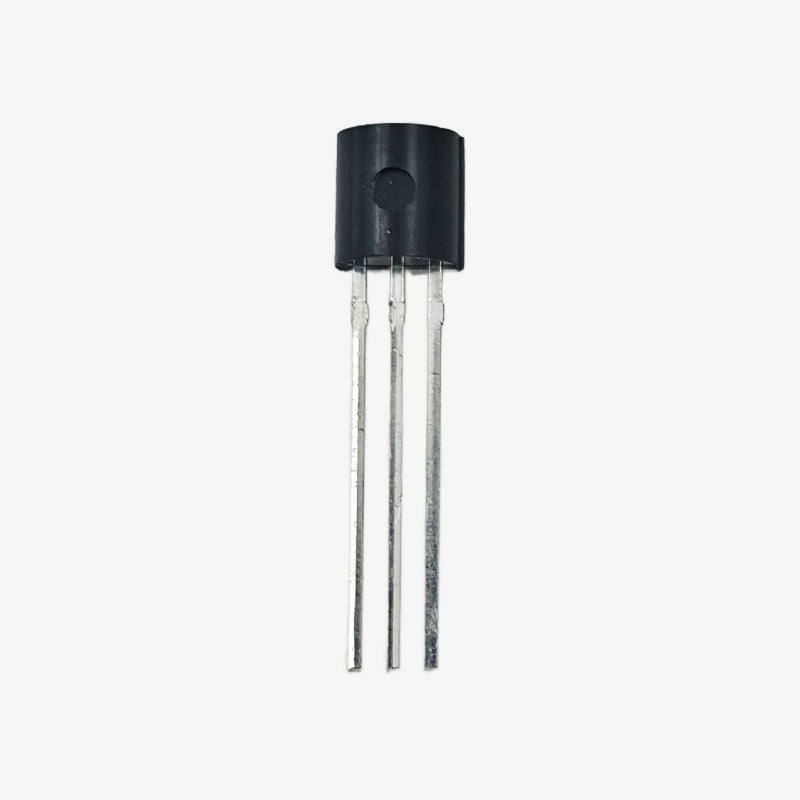

SS8550 150mA PNP Transistor - TO-92 DIP Package

The SS8550 is a PNP high-current transistor designed for medium to high-power switching and amplification applications. With its ability to handle up to 1.5A of collector current, it is ideal for driving loads such as relays, motors, solenoids, and high-power LEDs. Commonly used in power management circuits, audio amplifiers, and general-purpose control systems, the SS8550 offers stable performance in a compact TO-92 through-hole package for easy PCB integration and prototyping.

Features:

1. PNP transistor suitable for high-current switching and amplification
2. Capable of driving relays, motors, and power LEDs
3. High current handling capacity up to 1.5A
4. Good thermal stability and reliable operation
5. Compact TO-92 package for easy PCB mounting

Specifications:

• Type: PNP
• Collector-Emitter Voltage (Vceo): 25V
• Collector-Base Voltage (Vcbo): 40V
• Emitter-Base Voltage (Vebo): 5V
• Collector Current (Ic): 1.5A (max)
• DC Current Gain (hFE): 85 â€?300 (typical)
• Package: TO-92 through-hole
• Pin Configuration: Emitter, Collector, Base
• Operating Temperature: -65°C to +150°C

Package Includes:

1 × SS8550 150mA PNP Transistor - TO-92 DIP Package
