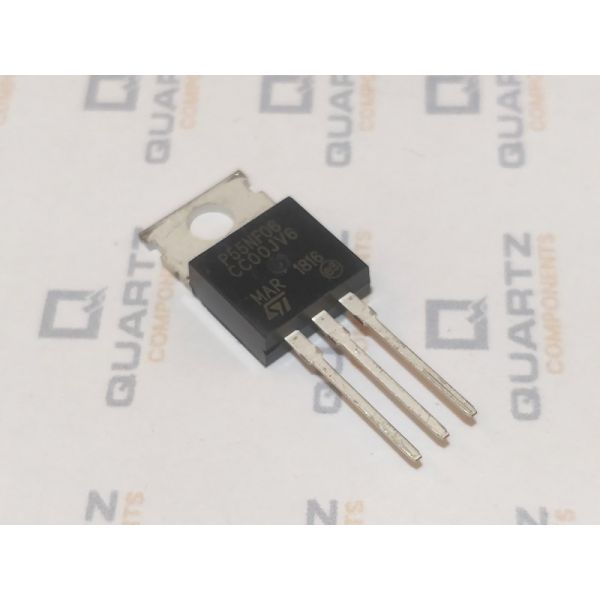

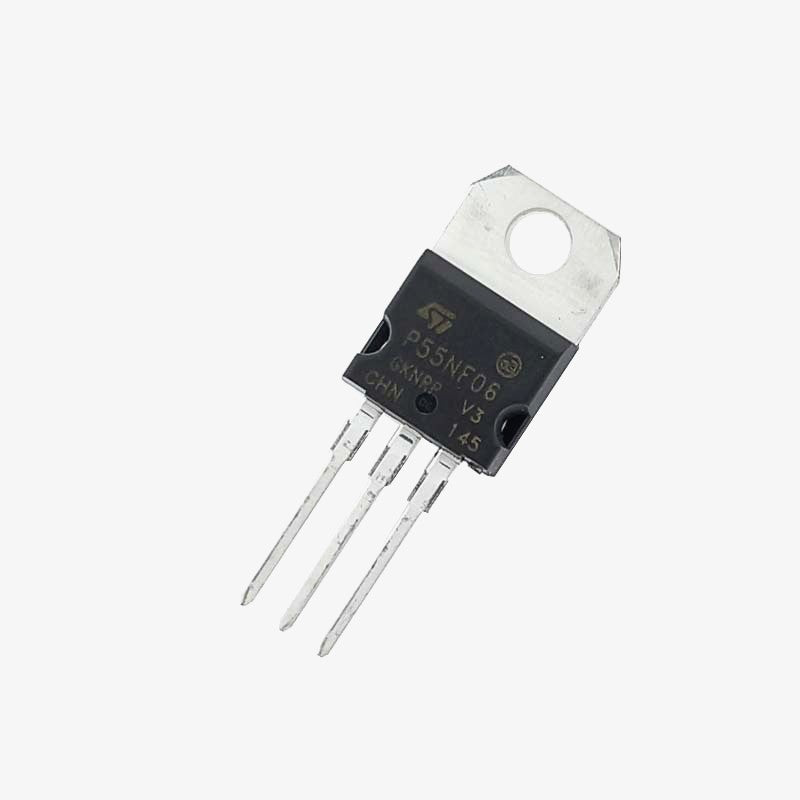

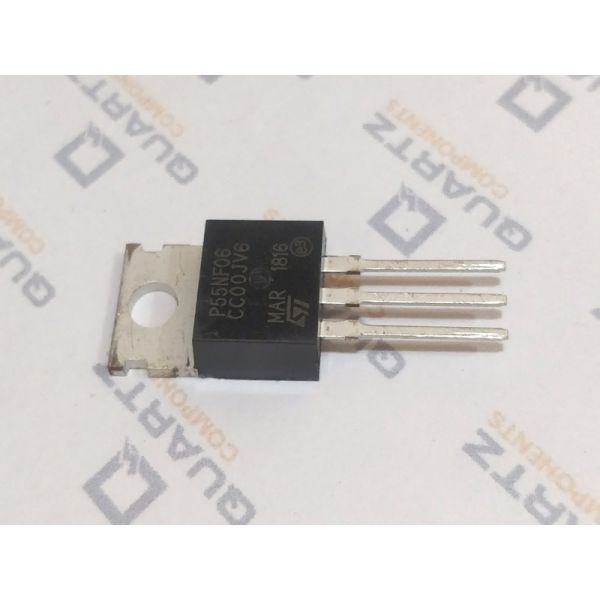

STP55NF06 - N Channel MOSFET

is basically a transistor that uses field effect. MOSFET stands for Metal Oxide Field Effect Transistor, which has a gate. The gate voltage determines the conductivity of the device. Depending on this gate voltage, we can change the conductivity, and thus we can use it as a switch or as an amplifier like we use  as a switch or as an amplifier. STP55NF06 has been developed using STMicroelectronics' unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switch in advanced high-efficiency isolated DC-DC converters for telecom and computer applications, and applications with low gate charge driving requirements like speed control of motor and voltage control of , etc.

Specifications

• Type of Control Channel: N -Channel
• Maximum Power Dissipation (Pd): 110 W
• Maximum Drain-Source Voltage |Vds|: 60 V
• Maximum Gate-Source Voltage |Vgs|: 20 V
• Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
• Maximum Drain Current |Id|: 50 A
• Maximum Junction Temperature (Tj): 175 °C
• Total Gate Charge (Qg): 44.5 nC
• Turn-off delay time 36nSec
• Maximum Drain-Source On-State Resistance (Rds): 0.022 Ohm

Product Description

If you want to connect it to an , , , etc. then connect Gate terminal to any GPIO pin, it will not be open completely and the maximum current will depend on the voltage applied to the gate terminal. In the case of a 5V GPIO pin, then the Drain to Source Current will be 10 to 20 Amps.

Package Contents

1×STP55NF06 N Channel MOSFET IC
