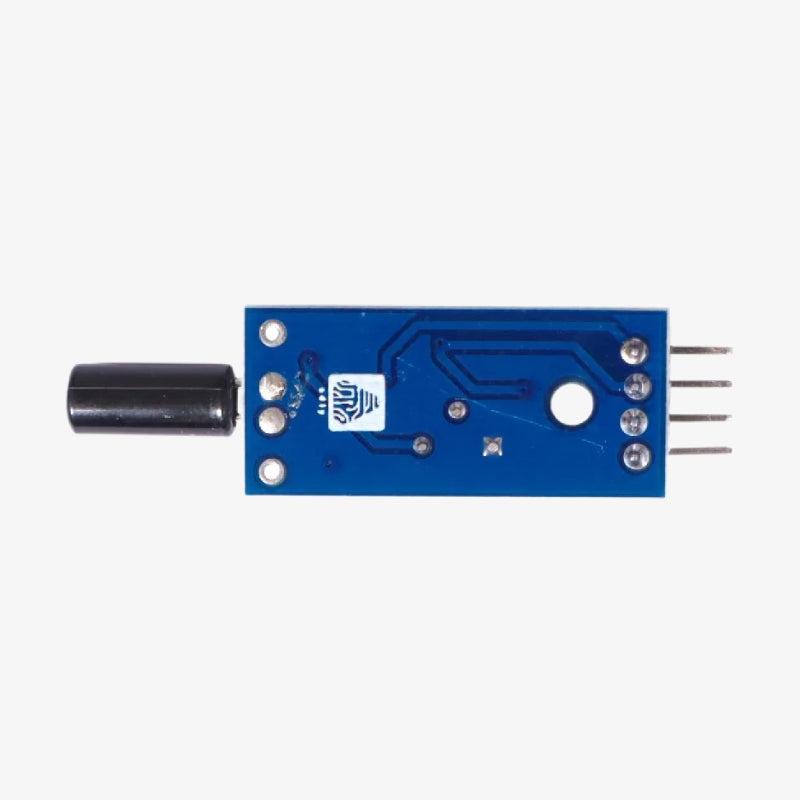

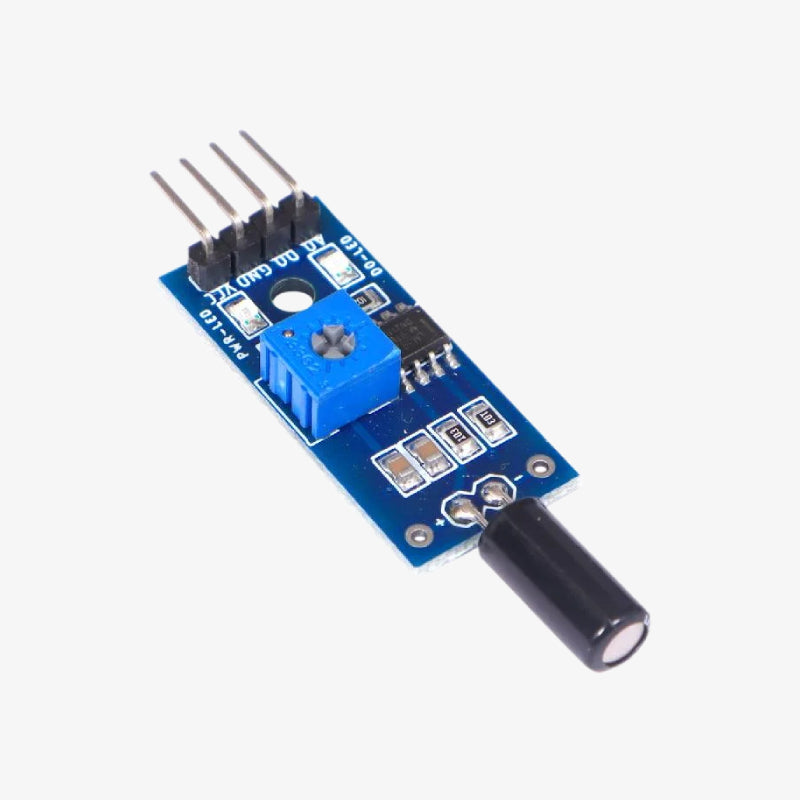

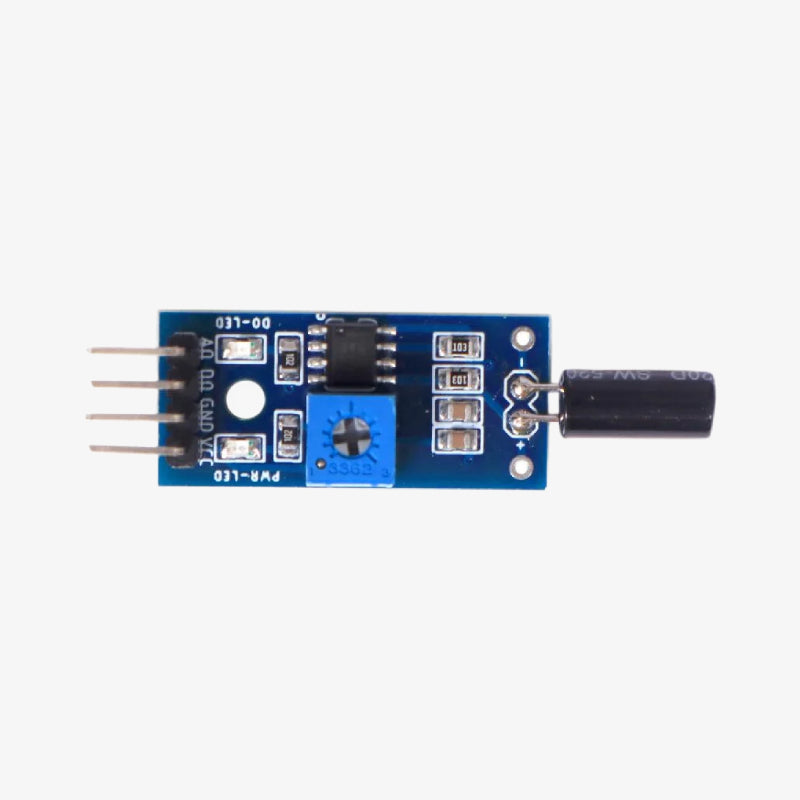

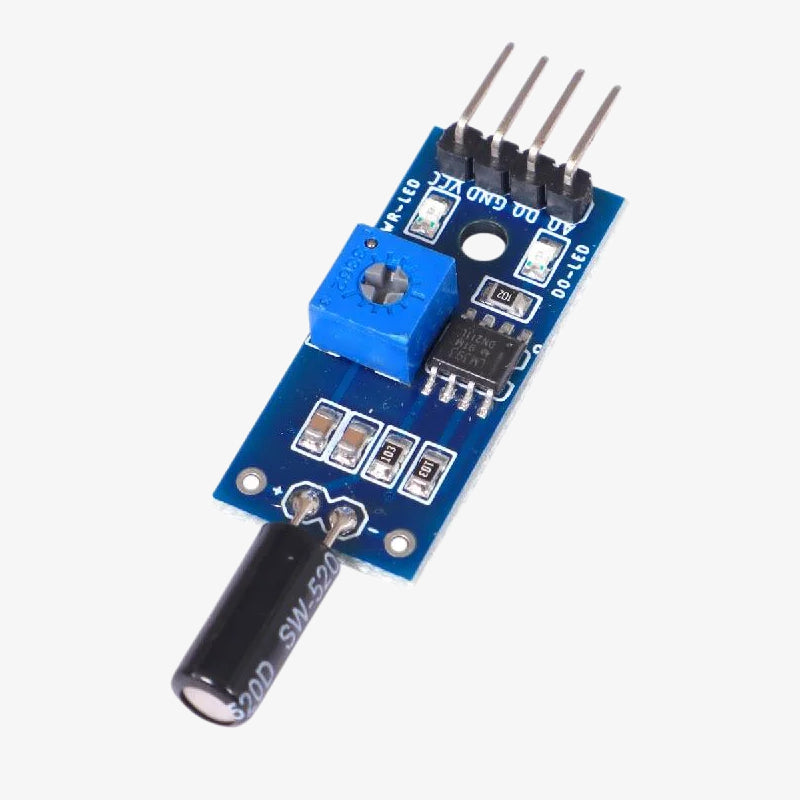

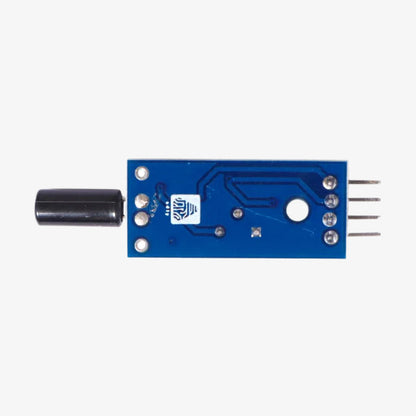

SW520D Tilt Sensor Module
SW520D Tilt Sensor Module
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
The SW520D Tilt Sensor Module is a simple motion-detection module that senses orientation and tilt using the SW520D tilt switch. It outputs a digital signal whenever the module’s position changes, making it ideal for angle detection, vibration sensing, and motion-triggered applications. Compact and easy to interface, it works seamlessly with Arduino, ESP32, Raspberry Pi, and other microcontrollers for use in DIY electronics, robotics, alarms, and smart devices.
Features :
- Detects tilt, vibration, and orientation changes.
- Provides a digital output signal (HIGH/LOW).
- Adjustable sensitivity via onboard potentiometer.
- Onboard status LED for signal indication.
- Compact, lightweight, and easy to integrate into projects.
Specifications :
- Module Type: Tilt / Vibration Sensor Module
- Sensor Model: SW520D Tilt Switch
- Operating Voltage: 3.3V �5V DC
- Output Type: Digital (0 or 1)
- Interface: 3-pin (VCC, GND, DOUT)
- Dimensions: 32mm × 14mm × 12mm
- Weight: 4g
Package Includes:
1 × SW520D Tilt Sensor Module
