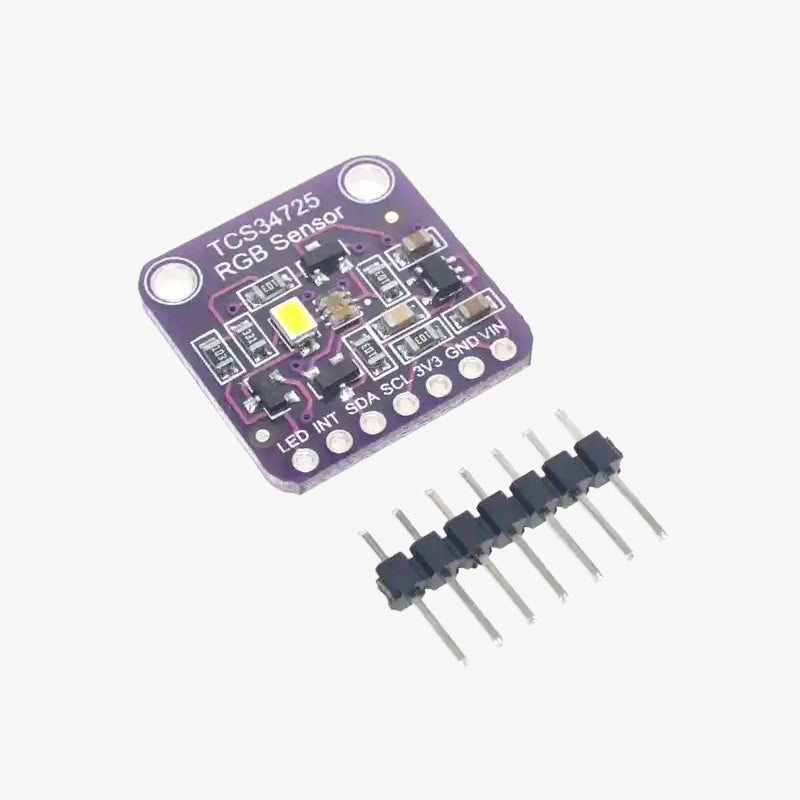

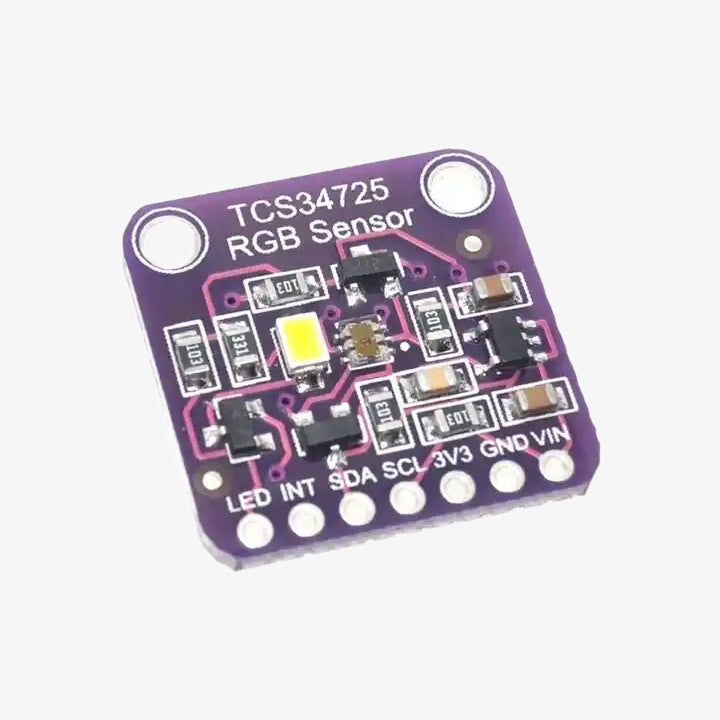

TCS34725 RGB Color Sensor Module

The TCS34725 is a high-accuracy RGB color sensor module capable of detecting red, green, blue, and clear light intensity. It features an integrated IR blocking filter, making it ideal for precise color measurement in various lighting conditions.

Features

• High-Sensitivity Sensor: Accurate detection of RGB and clear light intensity.
• IR Blocking Filter: Improves color accuracy by eliminating infrared light interference.
• Wide Dynamic Range: Suitable for low and high light levels.
• Built-in ADC: 16-bit resolution for high-accuracy digital output.
• I2C Interface: Simple integration with microcontrollers.
• Onboard LED: Integrated white LED for consistent illumination during measurements.

Specifications

• Operating Voltage: 3.3Vâ€?V.
• Communication Interface: I2C (default address: 0x29).
• Dynamic Range: 3,800,000:1 for various lighting environments.
• Measurement Range: Up to 16-bit resolution for clear and RGB data.
• Field of View: ±35°.
• Dimensions: Compact module for easy integration.

TCS34725 RGB Color Sensor Pinout

• VCC: Power supply (3.3V to 5V)

• GND: Ground

• SDA: Serial Data Line (I2C data)

• SCL: Serial Clock Line (I2C clock)

• INT: Interrupt output (active low, can be used for threshold alerts)
