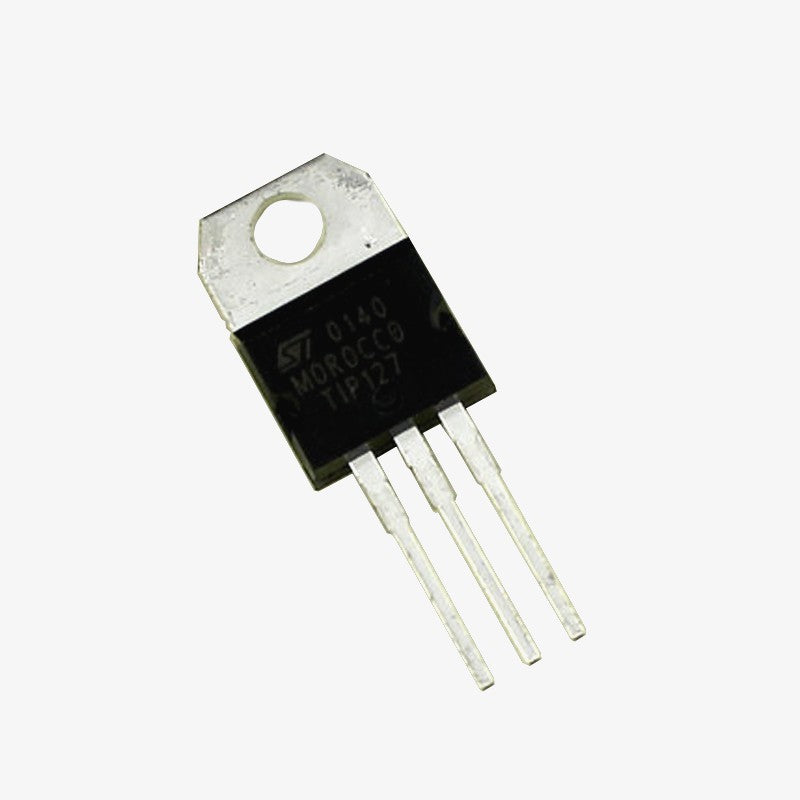

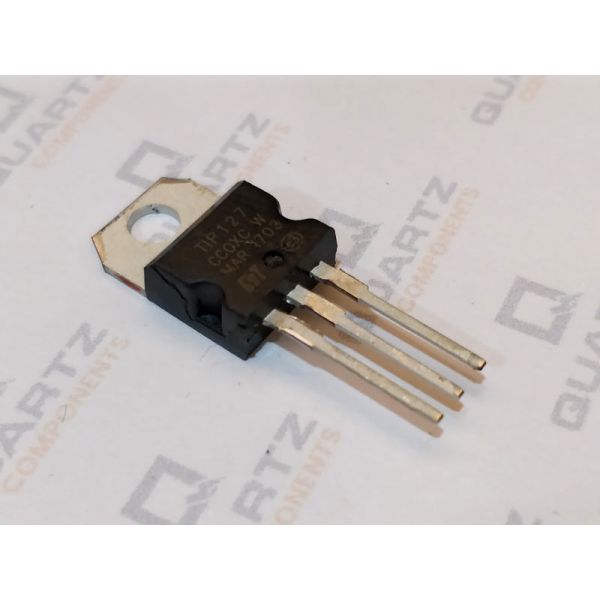

TIP127 Darlington PNP Transistor (TO-220)

The TIP127 Transistor is a silicon PNP Darlington transistor in a TO�20 type package designed for general purpose amplifier and low-speed switching applications. It has a high gain of 1000, a collector continuous current of 5A, and a Collector Emitter voltage of 100V. The base current for TIP127 transistor is about 120mA and the Emitter base voltage is 5V.

TIP127 can switch loads up to 60V with a peak current of 8A and a continuous current of 5A. This makes it suitable for medium and high-power electronics like controlling motors, solenoids, or high-power LEDs. You can also check out other Power Transistors from TIP series such as , , , , , .

Features & Specifications

• Collector-emitter voltage: 100V
• Maximum Collector-Base Voltage (Vcb): 100 V
• Collector current: 5A
• Power dissipation: 65W
• Maximum Emitter-Base Voltage (Veb): 5 V
• Operating Junction Temperature: 150 °C
• Monolithic Construction with Built−In Base−Emitter Shunt Resistors
• Complementary to TIP120/121/122
• Available in TO-220 Package

Package Contents

1× TIP127 Darlington PNP Transistor
