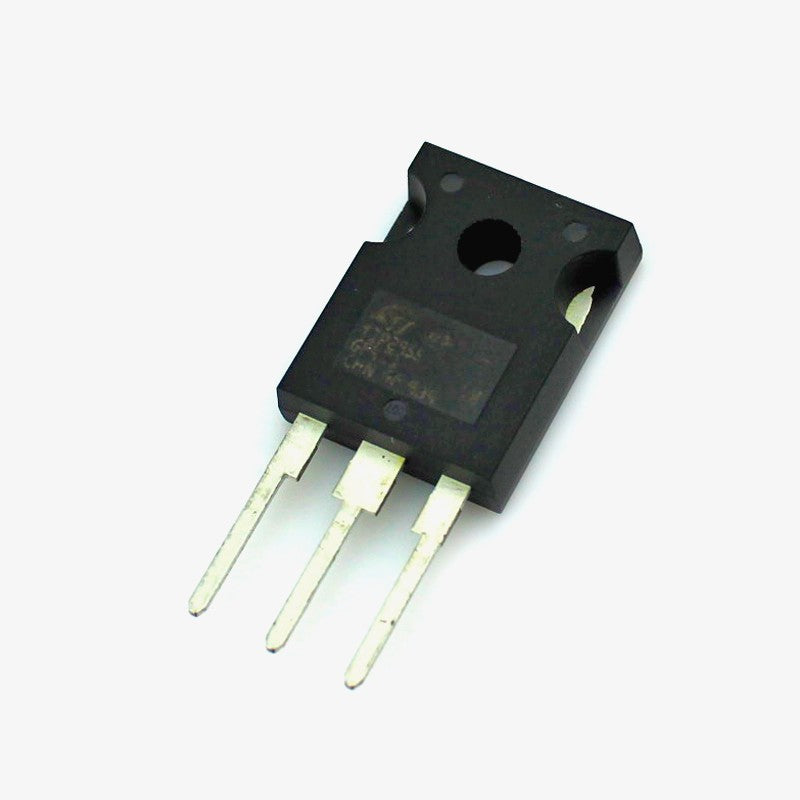

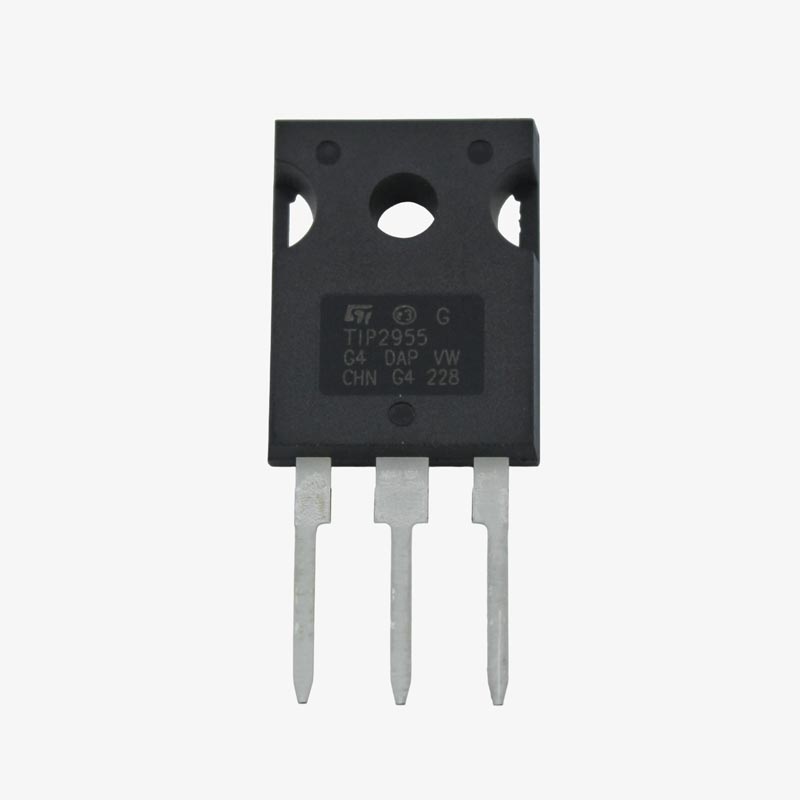

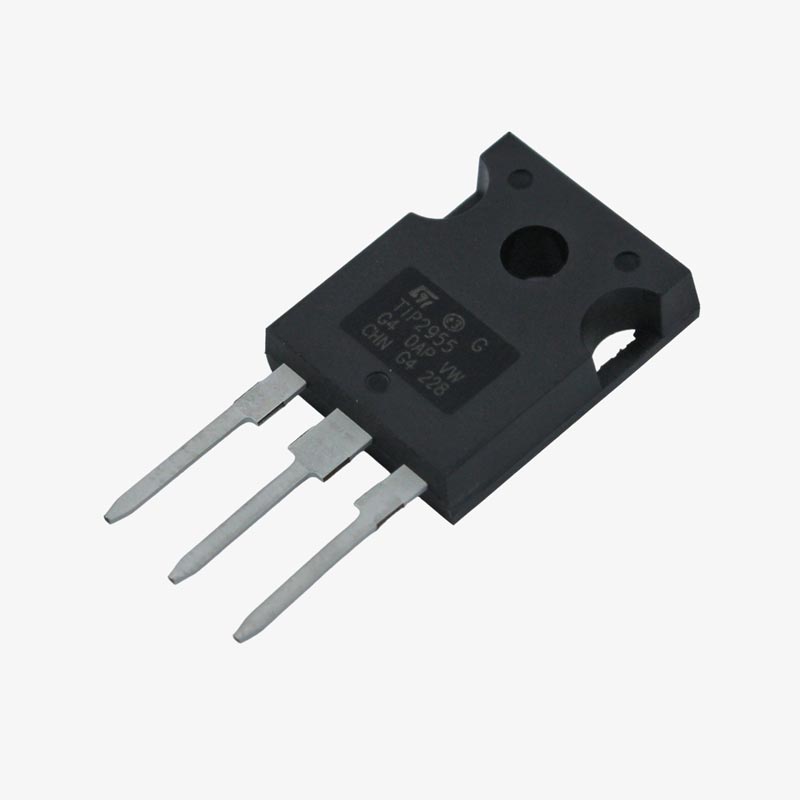

TIP2955 Power Transistor PNP 60V 15A TO247-3

The TIP2955 Power Transistor is a PNP transistor designed for general purpose switching and amplifier applications, mainly used in power switching circuits, hi-fi Audio amplifiers, shunt regulators, output stage, etc. The TIP2955 complimentary NPN transistor is .

TIP2955 Transistor Features and Specifications:

• Collector-Emitter Voltage: -60 V
• Collector-Base Voltage: -70 V
• Emitter-Base Voltage: -7 V
• Collector Current: -15 A
• Collector Dissipation - 90 W
• DC Current Gain (h_fe) - 20 to 70
• Transition Frequency - 3 MHz
• Operating and Storage Junction Temperature Range -55 to +150 °C
• Package - TO-247
