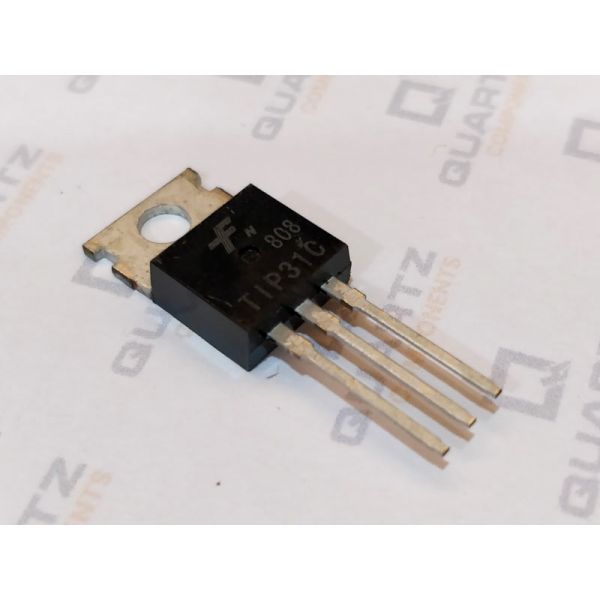

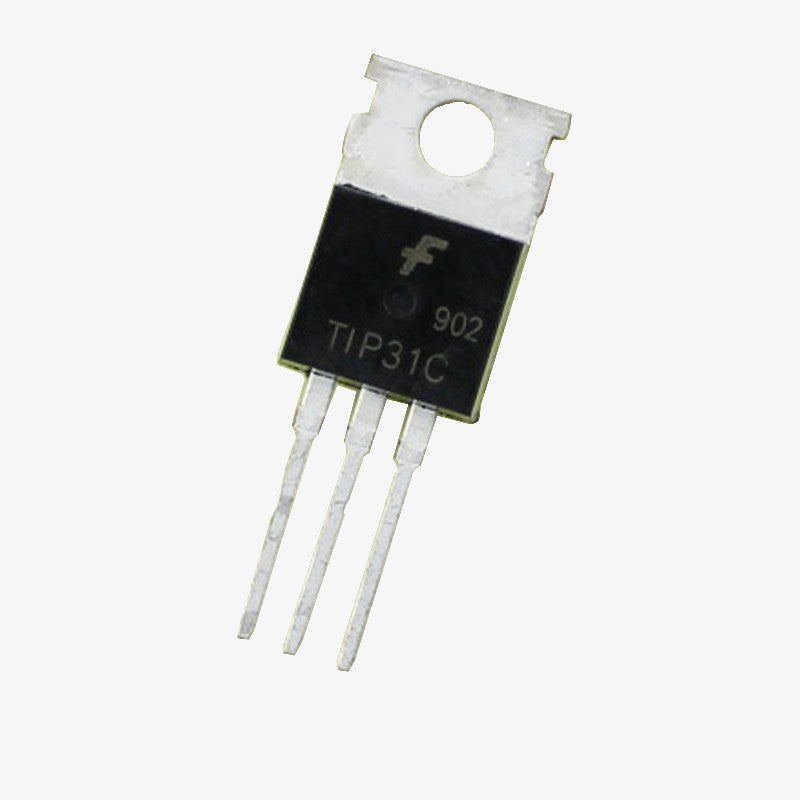

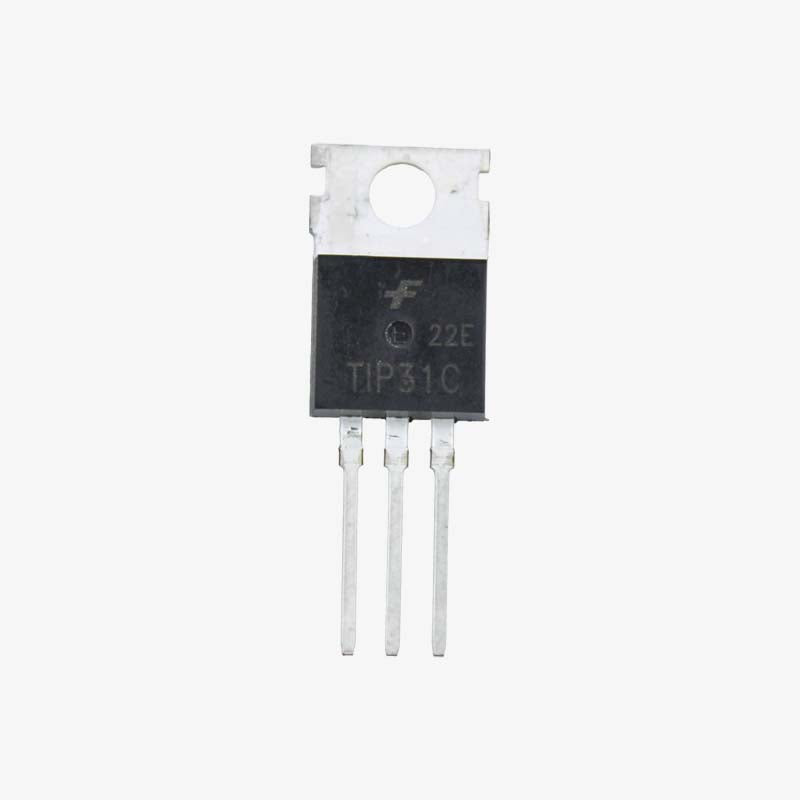

TIP31 NPN Power Transistor (TO-220)

The TIP31 is an NPN transistor in a TO�20 type package designed for general purpose amplifier and switching applications. It has a high gain of 50, a collector continuous current of 3A, and a Collector-Emitter voltage of 60V. The base current for the TIP31 transistor is about 1A and the Emitter base voltage is 5V.

The TIP31C, TIP31A, TIP31B, TIP31C, (NPN); and TIP32, TIP32A, TIP32B, TIP32C,(PNP) are complementary devices. You can also check out other Power Transistors from TIP series such as , , , , , .

Features & Specifications

• Collector-Emitter Voltage (VCEO): 100V
• Collector-Base Voltage (VCBO): 100V
• Emitter-Base Voltage (VEBO): 5V
• Collector-Emitter Saturation Voltage: 1.2V
• Collector Current (Ic): 3A
• DC Current Gain (hFE): 10 to 50
• Power Dissipation (PD): 40W
• Minimum Operating Temperature: -65°C
• Maximum Operating Temperature: +150°C
• Minimum Operating Temperature: -65°C
• High switching speed
• hFE improved linearity
• Available in TO-220 Package

Package Contents

1× TIP31 NPN Power Transistor
