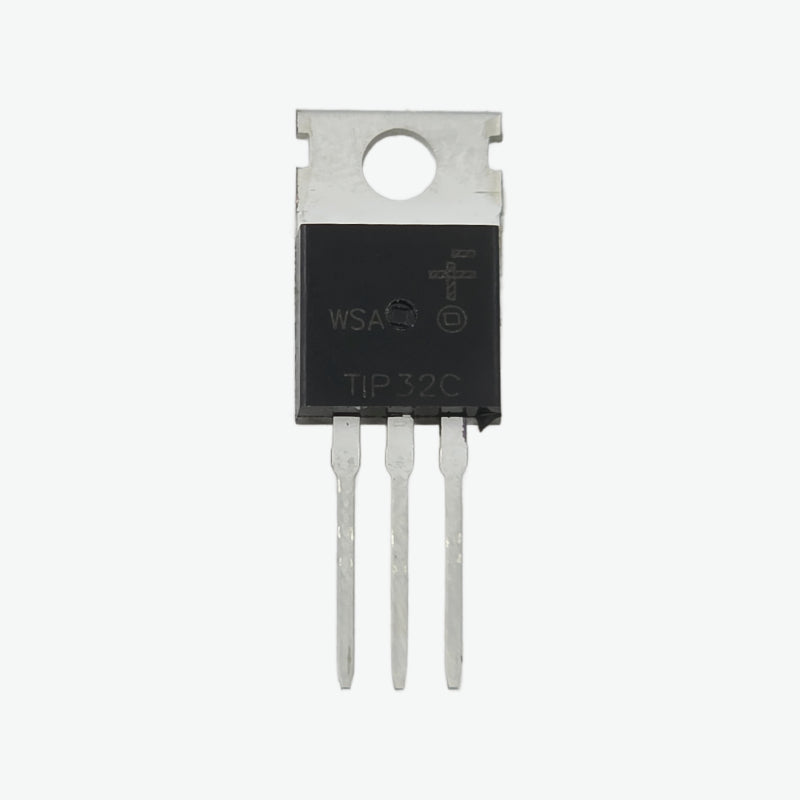

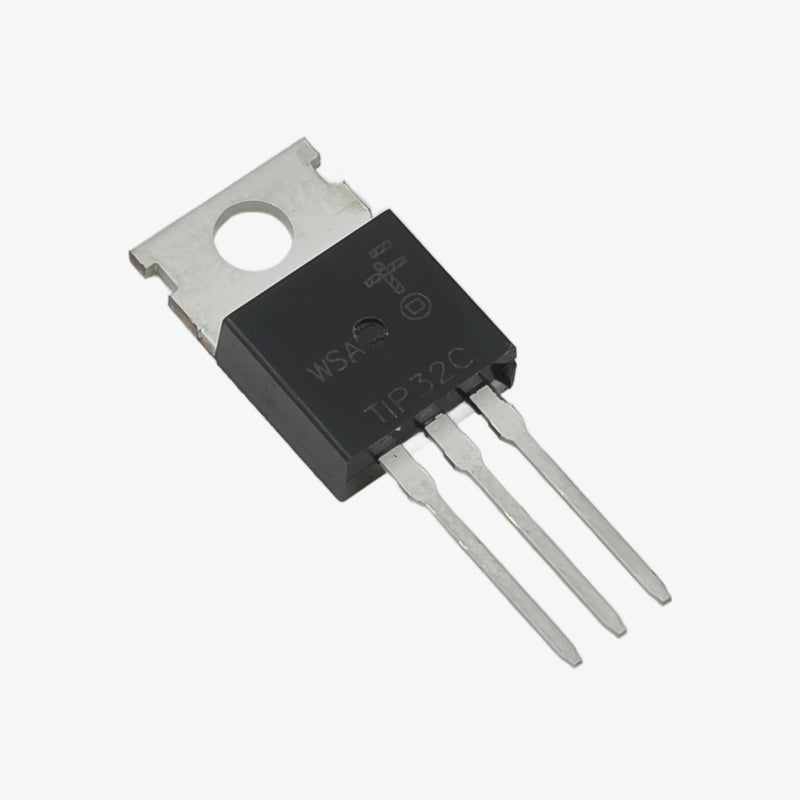

TIP32C PNP Bipolar Power Transistor (100V 3A TO-220)
TIP32C PNP Bipolar Power Transistor (100V 3A TO-220)
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
The TIP32C is a PNP bipolar junction transistor (BJT) designed for switching and amplification in power electronics. With a 100V voltage rating and 3A continuous current capability, it is ideal for medium-power applications such as motor control, audio amplification, and voltage regulation.
Features:
- Low saturation voltage
- Simple drive requirements
- High safe operating area
- For low distortion complementary designs
- Easy to carry and handle
Detailed Specifications:
| Transistor Polarity | PNP |
| Collector−Emitter Voltage (VCEO) | 40VDC |
| Collector−Base Voltage (VCBO) | 40VDC |
| Continuous Collector Current (Ic) | 3ADC |
| Continuous Base Current (Ib) | 1ADC |
| Emitter Base Voltage (VEBO) | 5VDC |
| Power Dissipation (Pd) | 40W |
| Operating Temperature Range | -65 - 150°C |
| DC Current Gain (hFE) | 10-50 |
Â
Package Includes:
1 x TIP32C PNP Bipolar Power Transistor
