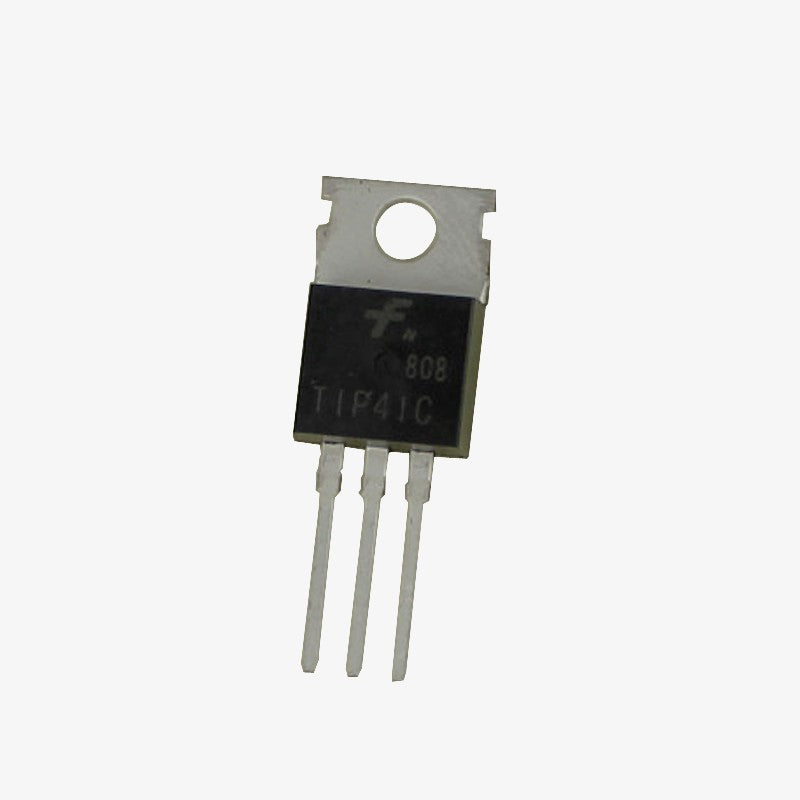

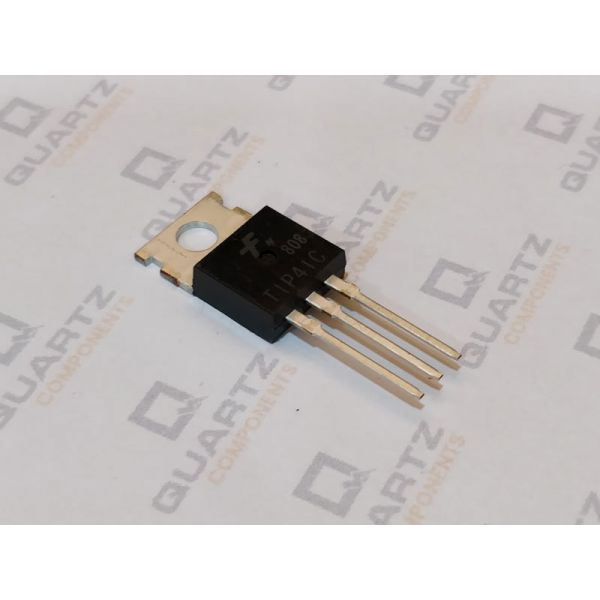

TIP41 NPN Power Transistor (TO-220)
TIP41 NPN Power Transistor (TO-220)
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
TIP41 transistor is an NPN power transistor with a maximum gain of 75. It has a collector continuous current of 6A and a Collector-Emitter voltage of 100V. The base current is about 3A and the Emitter base voltage is 5V. The TIP41 Bipolar Power Transistor is designed for a general-purpose power amplifier and switching applications.
Â
The TIP41, TIP41A, TIP41B, TIP41C (NPN); and TIP42, TIP42A, TIP42B, TIP42C (PNP) are complementary devices. It is available in TO-220 Package. You can also check out other Power Transistors from TIP series such as , , , , , .
Â
Features & Specifications
- Collector-Emitter Voltage (VCEO): 40V
- Collector-Base Voltage (VCBO): 40V
- Emitter−Base Voltage (VEB): 5.0V
- Collector Current (Ic): 6A
- DC Current Gain (hFE): 15 to 75
- Power Dissipation (PD): 65W
- Minimum Operating Temperature: -65 °C
- Maximum Operating Temperature: 150 °C
- fT Current Gain Bandwidth Product (VCE = 10V, IC = 500mA) 3.0 MH
- Available in TO-220 Package
Â
Package Contents
1× TIP41 NPN Power Transistor
