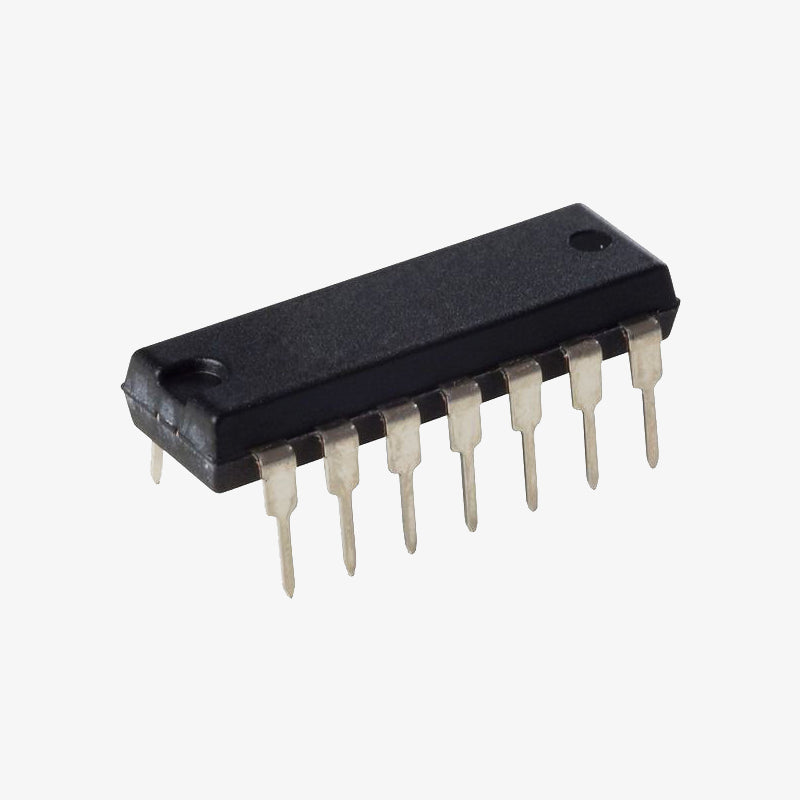

TL074 Low Noise JFET Quad Op-Amp IC - DIP-14 Package

The TL074 is a low-noise, JFET-input quad operational amplifier IC designed for high-performance analog applications. Manufactured using advanced bipolar and JFET technologies, the IC delivers superior performance with minimal noise and low power consumption. With four independent op-amps integrated into a single package, the TL074 is highly versatile and widely used in audio processing, instrumentation, and active filters. Its DIP-14 package allows for easy prototyping and integration into various circuits.

TL074 Op Amp Features:

• Low Noise Performance: Ensures minimal distortion, ideal for audio applications.

• JFET Input Stage: Provides high input impedance and low bias current.

• Wide Power Supply Range: Operates from ±3V to ±18V or a single supply of 6V to 36V.

• Low Power Consumption: Suitable for battery-powered devices.

• High Slew Rate: Fast response to rapid signal changes.

• Unity-Gain Stability: Stable performance in a wide range of circuit configurations.

• Quad Amplifiers: Four independent op-amps in a single IC.

TL074 IC Specifications:

• Input Offset Voltage: Typically 3mV

• Input Bias Current: Typically 30pA

• Gain Bandwidth Product: 3MHz

• Slew Rate: 13V/µs

• Power Supply Voltage Range: ±3V to ±18V (Dual Supply) or 6V to 36V (Single Supply)

• Package Type: DIP-14

• Temperature Range: 0°C to +70°C

Pin Configuration (DIP-14):

1. Output 1

2. Inverting Input 1

3. Non-Inverting Input 1

4. VCC- (Ground/Negative Supply)

5. Non-Inverting Input 2

6. Inverting Input 2

7. Output 2

8. Output 3

9. Inverting Input 3

10. Non-Inverting Input 3

11. VCC+ (Positive Supply)

12. Non-Inverting Input 4

13. Inverting Input 4

14. Output 4

Package Includes:

1 x TL074 Low Noise JFET Quad Op-Amp IC - DIP-14 Package
