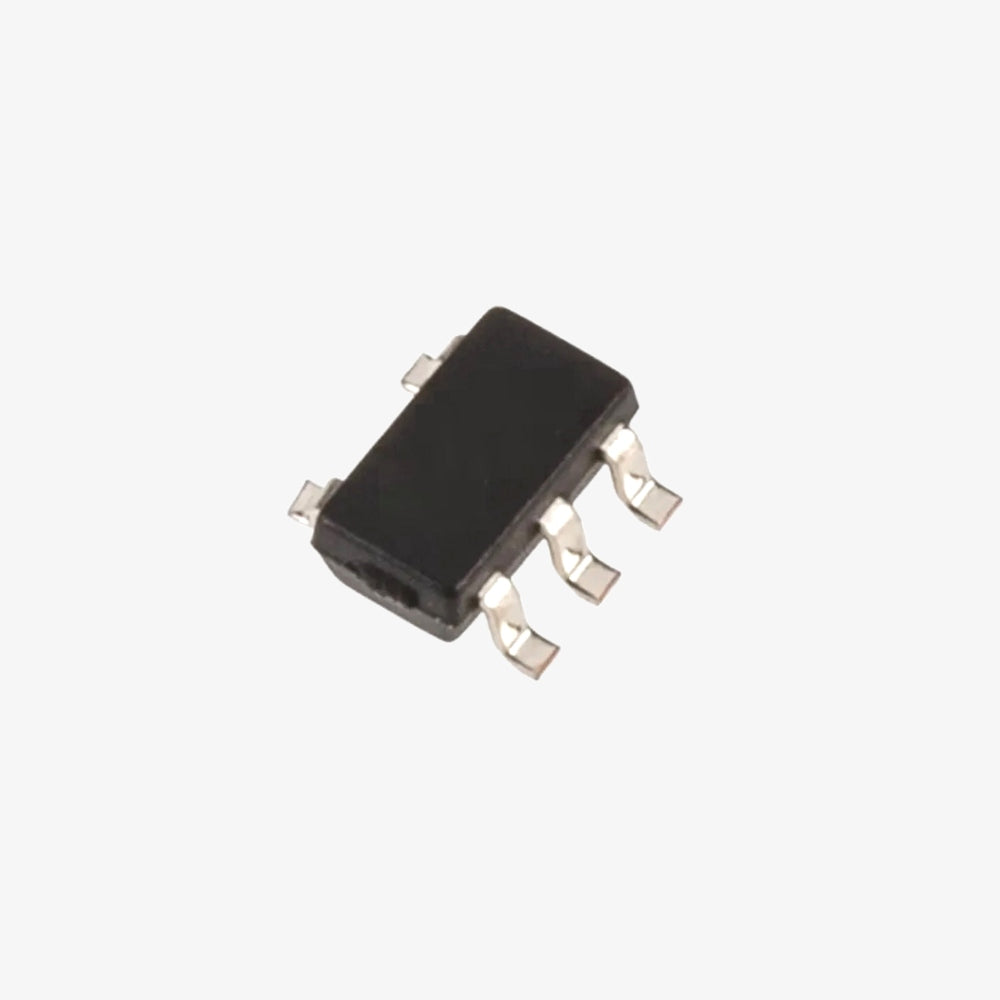

TLP131 Phototransistor Output Optocoupler IC (Toshiba) - SOP-5 SMD Package

The TLP131 is a phototransistor output optocoupler manufactured by Toshiba, designed to provide electrical isolation between input and output stages. Housed in a compact SOP-5 SMD package, this optocoupler is ideal for applications requiring isolation and signal transmission between circuits. It features a high current transfer ratio and is suitable for interfacing with digital logic circuits and microcontrollers.

Specifications:

• IC Type: Phototransistor Output Optocoupler
• Manufacturer: Toshiba
• Package Type: SOP-5 SMD
• Package Size: 5 Pins
• Current Transfer Ratio (CTR): 50% to 600% (typical)
• Forward Current (If): 50 mA (max)
• Collector-Emitter Voltage (Vceo): 50 V (max)
• Emitter-Collector Voltage (Veco): 6 V (max)
• Isolation Voltage: 5 kV (min)
• Response Time (Rise/Fall): 5 µs (typical)
• Operating Temperature Range: -40°C to +100°C

Pin Configuration:

1. Anode: LED anode
2. Cathode: LED cathode
3. Collector: Phototransistor collector
4. Emitter: Phototransistor emitter
5. Base: Phototransistor base

Features:

• High current transfer ratio
• Fast response time
• Electrical isolation between input and output
• Compact SOP-5 SMD package
• Reliable performance for signal isolation

Applications:

• Digital logic interfacing
• Microcontroller and FPGA signal isolation
• Power supply feedback circuits
• Signal transmission and isolation
• Switching and control systems

Package Includes:

1 x TLP131 Phototransistor Output Optocoupler IC (SOP-5 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
