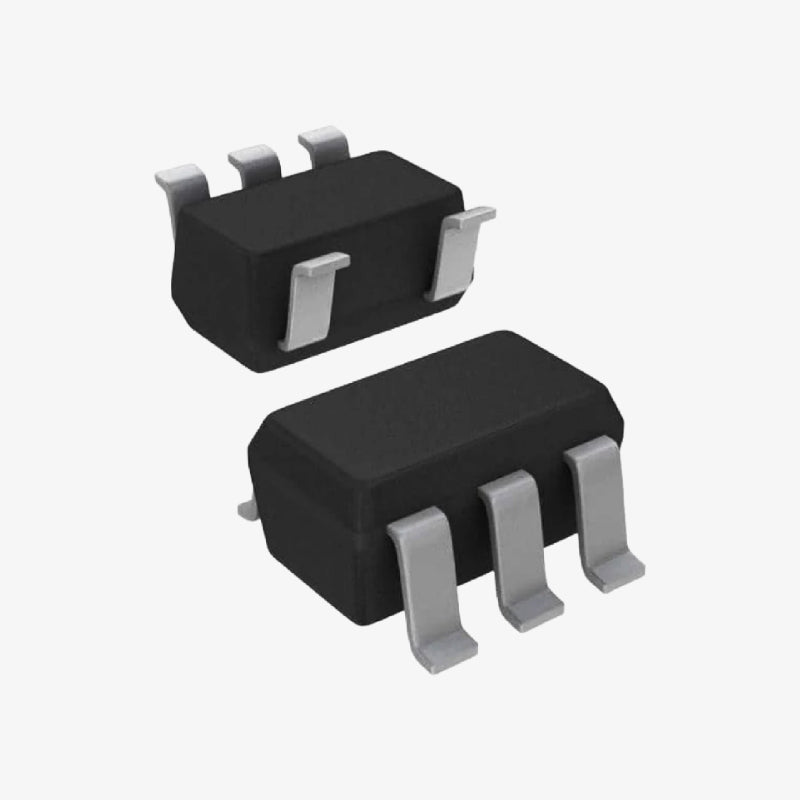

TLV70233DBVR Low Dropout 3.3V Fixed Voltage Regulator IC (TI) - SOT-23-5 SMD Package

The TLV70233DBVR is a low-dropout (LDO) linear voltage regulator from Texas Instruments, delivering a fixed 3.3V output with a maximum output current of 300mA. Designed for low-noise and low-quiescent current operation, this regulator is ideal for battery-powered and noise-sensitive applications. With high power supply rejection (68dB at 1kHz) and fast transient response, it ensures stable voltage regulation for analog and RF systems. Its compact SOT-23-5 package makes it well-suited for space-constrained designs.

Features of TLV70233DBVR LDO Regulator IC:

1. Fixed 3.3V output with 300mA output current
2. High PSRR: 68dB at 1kHz
3. Low dropout voltage: ~230mV at 300mA
4. Stable with low ESR ceramic capacitors
5. Low quiescent current for energy efficiency
6. Thermal and overcurrent protection
7. Compact SOT-23-5 SMD package
8. RoHS compliant

Specifications of TLV70233DBVR IC:

• Model: TLV70233DBVR
• Output Voltage: 3.3V (fixed)
• Output Current: 300mA
• Input Voltage Range: 2.2V to 5.5V
• Dropout Voltage: ~230mV @ 300mA
• PSRR: 68dB @ 1kHz
• Package: SOT-23-5 â€?SMD
• Operating Temperature: -40°C to +125°C
• Manufacturer: Texas Instruments

Package Includes:

1 × TLV70233DBVR Low Dropout Voltage Regulator IC â€?3.3V Fixed â€?SOT-23-5 â€?Texas Instruments
