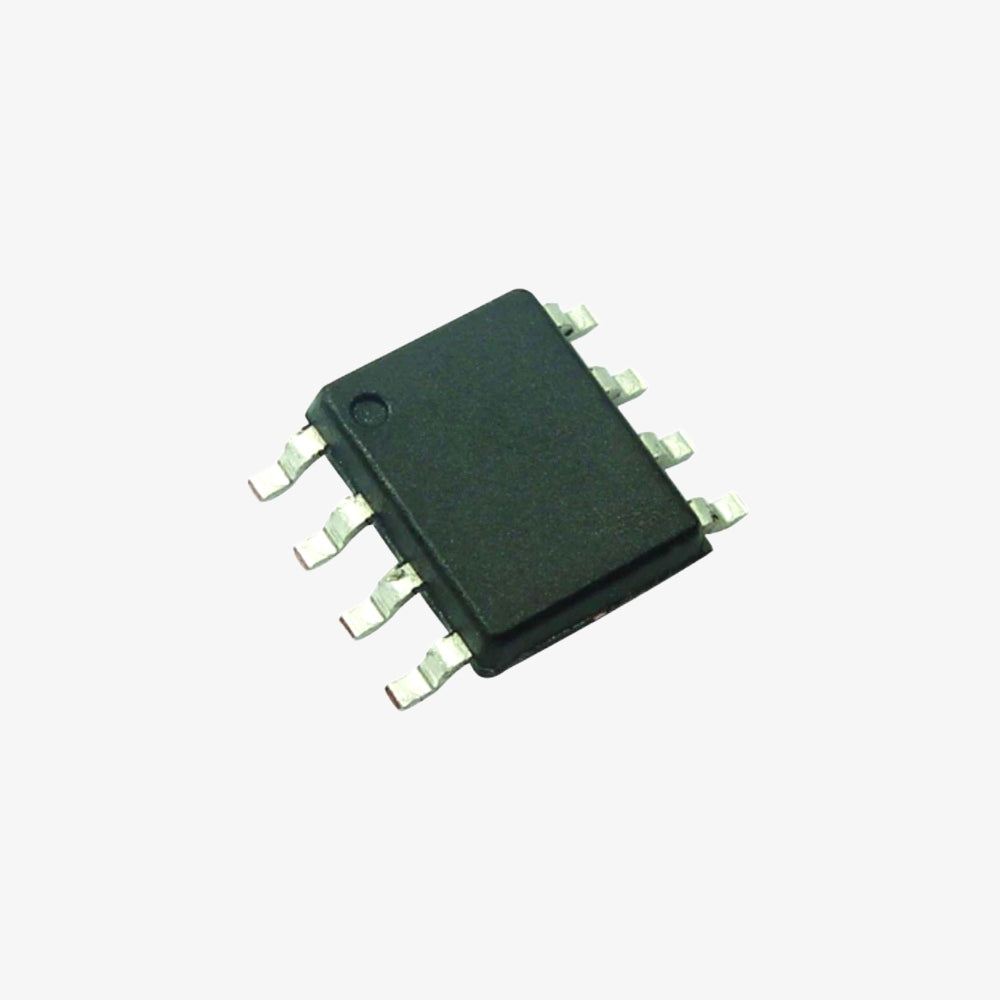

VIPer12A Low Power SMPS Primary Switcher IC - SOP-8 SMD Package

The VIPer12A is a high-voltage, low-power primary switcher IC designed for use in switched-mode power supplies (SMPS). It integrates a PWM controller and a high-voltage power MOSFET, providing efficient and compact solutions for off-line converters. The IC is ideal for applications requiring low standby power consumption and is available in a space-saving SOP-8 SMD package.

Specifications:

• IC Type: SMPS Primary Switcher
• Package Type: SOP-8 SMD
• Package Size: 8 Pins
• Input Voltage Range: Up to 265 V AC
• Output Power: Up to 12 W (at 230 V AC)
• Switching Frequency: 60 kHz
• Maximum Drain Current: 0.43 A
• Standby Power Consumption: < 50 mW
• Operating Temperature Range: -40°C to +150°C

Pin Configuration:

1. Drain: Power MOSFET drain connection
2. Drain: Power MOSFET drain connection
3. Drain: Power MOSFET drain connection
4. VDD: Supply voltage input
5. Source: Power MOSFET source connection
6. COMP: Compensation network
7. Feedback: Feedback input for voltage regulation
8. Source: Power MOSFET source connection

Features:

• Integrated PWM controller and power MOSFET
• High-voltage start-up
• Low standby power consumption
• Over-temperature, over-voltage, and over-current protection
• Frequency jittering for low EMI
• Compact SOP-8 package for space-efficient designs

Applications:

• Off-line battery chargers
• Standby power supplies
• Home appliances
• Consumer electronics
• Auxiliary power supplies

Package Includes:

VIPer12A Low Power SMPS Primary Switcher IC (SOP-8 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
