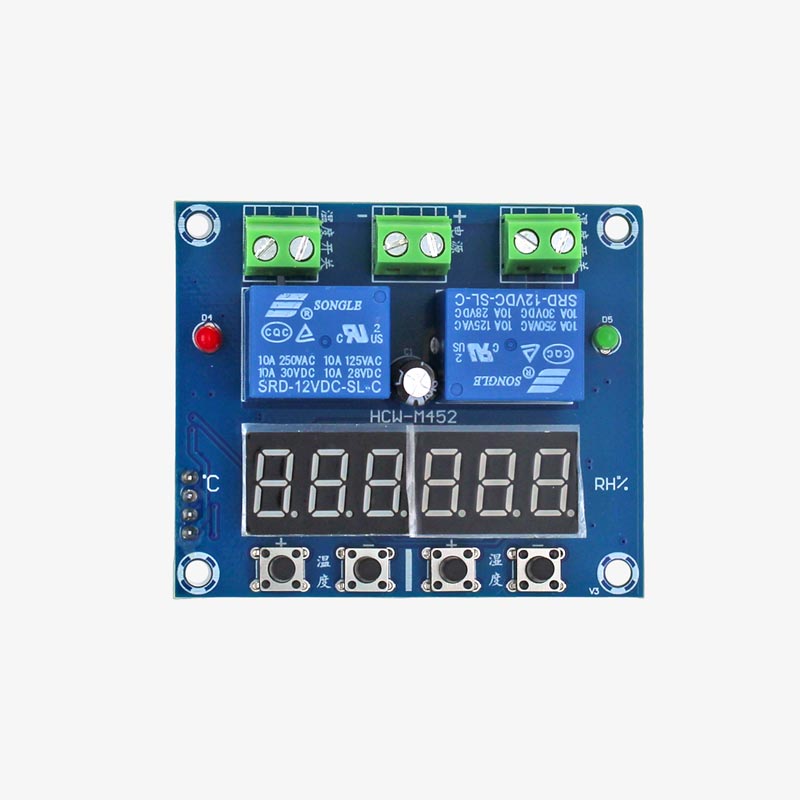

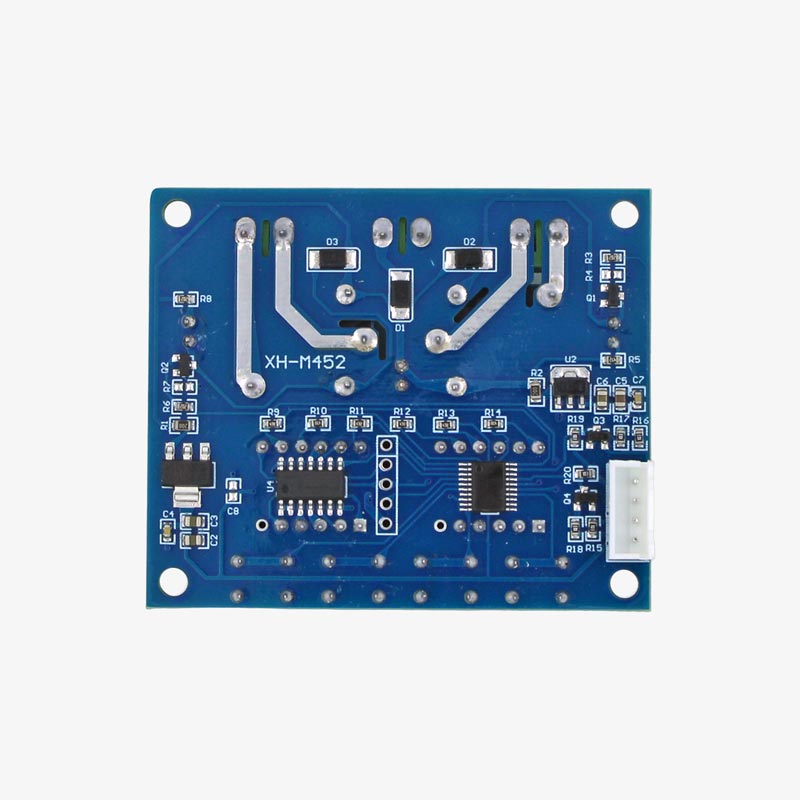

XH-M452 Temperature and Humidity Controller Module

The XH-M452 Temperature and Humidity Controller Module is a versatile and efficient device designed to accurately measure and control temperature and humidity levels. This module is equipped with advanced sensors and a user-friendly interface, making it an ideal choice for various applications requiring precise environmental monitoring and regulation. Take control of your environment with the XH-M452 Temperature and Humidity Controller Module. Get the all-new DC 12V XH-M452 Temperature And Humidity Controller Module Digital Display. It has a very High Accuracy Dual Output Automatic Constant Temperature And Humidity Control Board.

Humidity Control:

1. Set to start humidity: long-press the + key, start the humidity value flashing, set by + / �key launch humidity value

2. Set stop humidity: long press �to stop humidity value, set by + / �key to stop the humidity value

Temperature Control:

1. Setting the temperature +: Normal display mode, long-press the + key for 3 seconds, start temperature numerical flashing, press the + / �key setting values, the wrong operation after 5 seconds, automatically return to detect temperature display
2. Setting the temperature �:Normal display mode, long press �button for 3 seconds, stop numerical flashing temperature, press the + / �key set value
3. Restore the factory Settings: At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
4. Setting the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / �key
5. Setting Stop temperature: long press �button, stop flashing temperature, set stop temperature by + / �key

Features:

• High-Accuracy Sensors
• LCD Display
• Dual Output Control
• Adjustable Set Points
• Wide Operating Range
• Fast Response Time

Specifications:

• Model: XH-M452
• Power Supply Voltage: DC 12V
• Temperature Measurement Range: -20°C to 60°C
• Humidity Measurement Range: 0% to 100% RH
• Temperature Accuracy: ±0.1°C
• Humidity Accuracy: ±1% RH
• Control Accuracy: 0.1°C, 1% RH
• Output Type: Relay (Max. 10A per channel)

Package Includes:

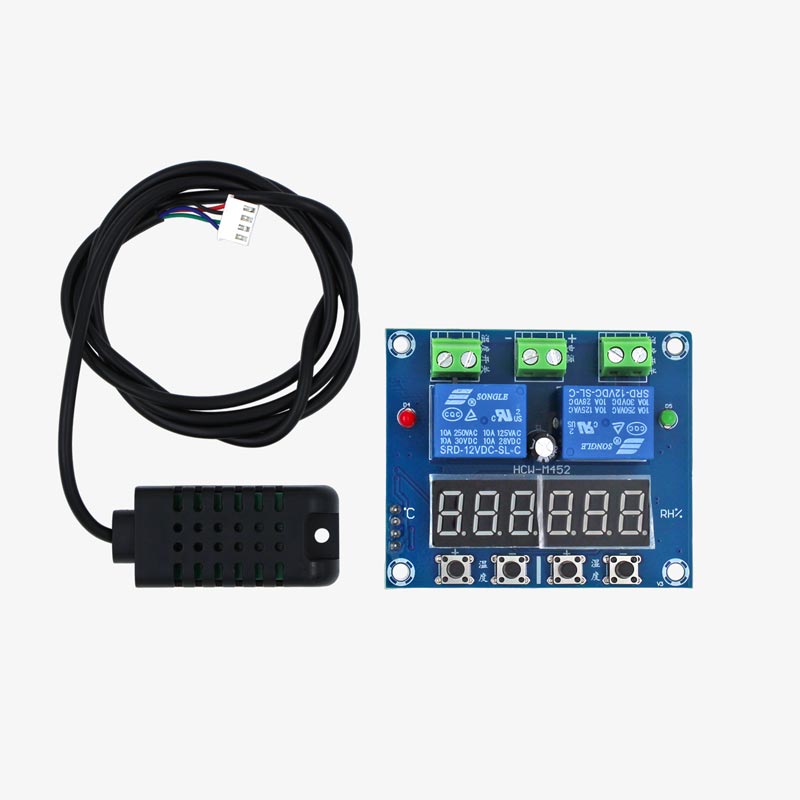

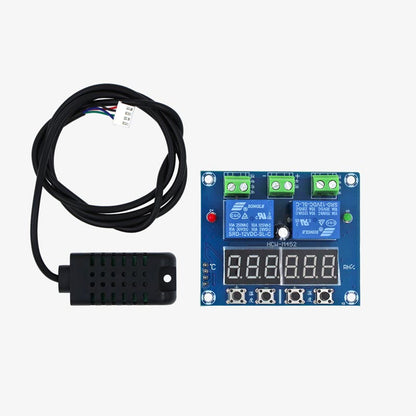

1 x XH-M452 Temperature and Humidity Controller Module With Sensor Probe
