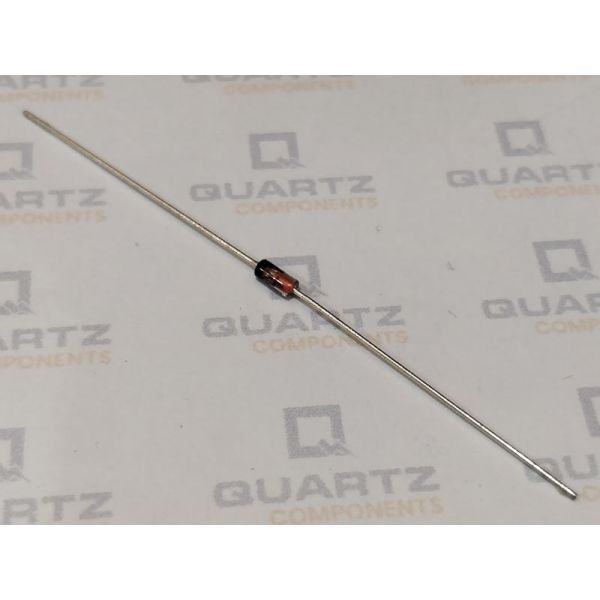

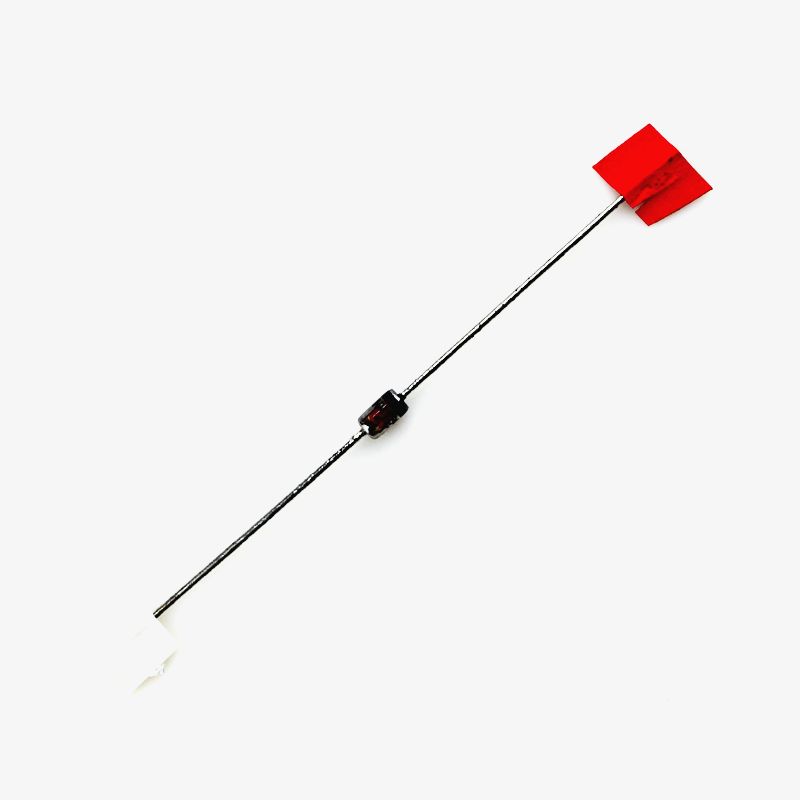

1N4734A 5.6V Zener Diode

This 1N4734A Zener diode is another form of diode which comes in Through-hole package. Zener diode will mostly be used in a protection circuit or in a crude voltage regulator circuit. Either way, it very important to remember that a Zener diode should always be used along with a Zener resistor. The 1N4734A 5.6V Zener Diode has a nominal voltage of 5.6V and like other types of Zener diodes, it can be used as a reference element in voltage regulation, and it can also be used in switching applications and clipper circuits.

Equivalent to the 1N4734A 5.6V zener diode, other zener diodes including the ,   and  can be found from the website.

Features of the 1N4734A 5.6V Zener Diode

• Package type : Through hole
• Nominal Voltage : 5.6V
• Tolerance : ± 5%
• Power Dissipation : 1.0 Watt
• Storage Temperature : -65 to 175 degree C
• Weight : 0.35g
• Case type : Do-41 Glass Case
• High reliability
• Very sharp reverse characteristics.

Mechanical Drawing of 1N4734A 5.6V

Package Includes

1 x 1N4734A 5.6V Zener Diode
