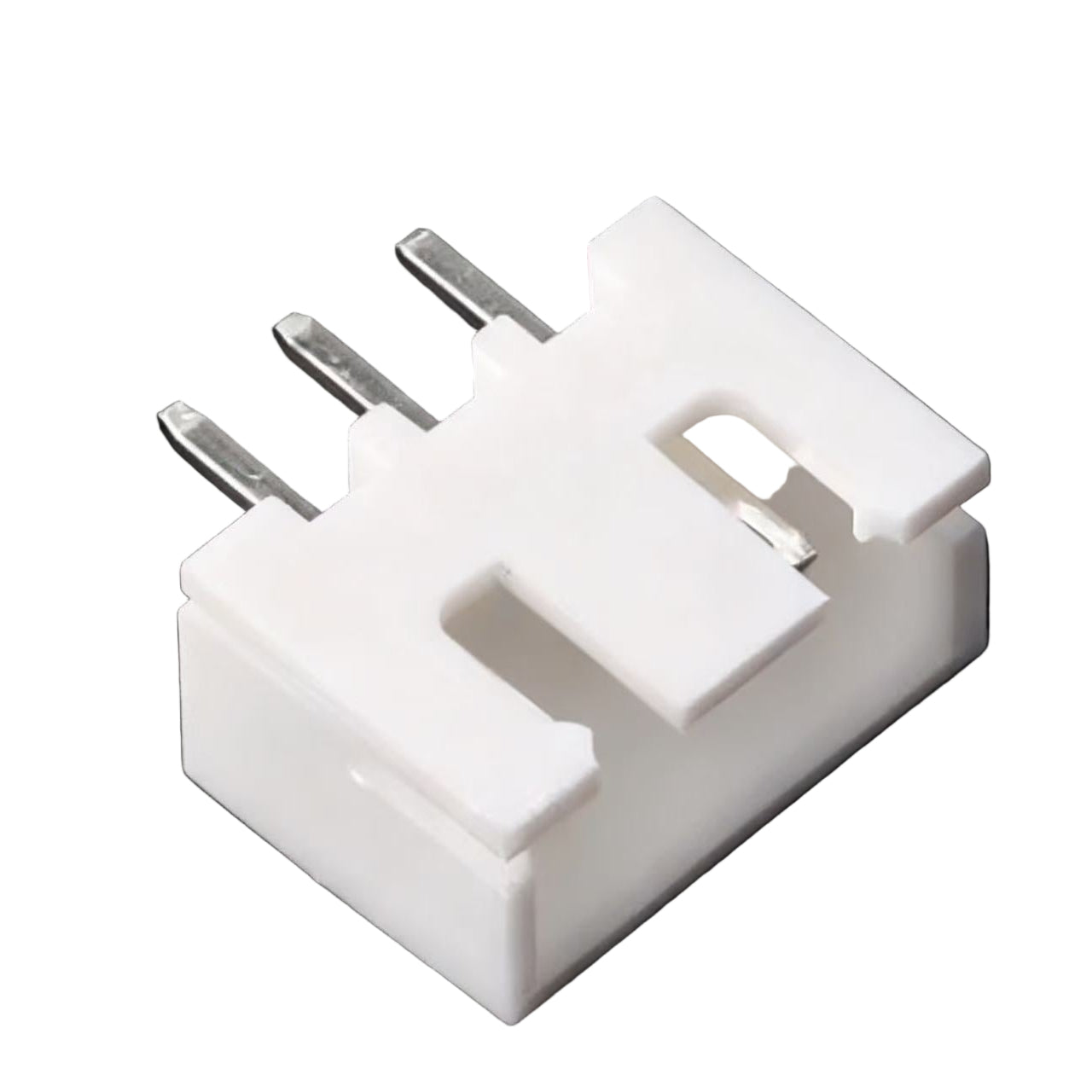

ZX-XH2.54-3PZZ Megastar
$0
| Key Attributes |
CONN HEADER TH 3POS 2.5mm
|
| Description |
3P XH 1x3P Tin -25℃~+85℃ White 2.5mm 250V 3 2A 1 Through Hole Through Hole,P=2.5mm Headers, Male Pins RoHS
|
| Manufacturer | Megastar |
|
| Package | Through Hole,P=2.5mm |
|
| Y-Width of Bottom Edge on Board | 5.9mm |
|
| Number of Pins | 3P |
|
| Reference Series | XH |
|
| Pins Structure | 1x3P |
|
| Contact Plating | Tin |
|
| Contact Material | Brass;PA66 |
|
| Operating Temperature | -25℃~+85℃ |
|
| Color | White |
|
| Flame Retardant Rating | UL94V-0 |
|
| Supplementary Features | - |
|
| Pitch | 2.5mm |
|
| Voltage Rating (Max) | 250V |
|
| Number of PINs Per Row | 3 |
|
| Current Rating-Signal | 2A |
|
| Number of Rows | 1 |
|
| X-Length of Bottom Edge on Board (Spacing Line) | 10mm |
|
| Z-Height of the Board | 7mm |
|
| Row Spacing | - |
|
| Mounting Type | Through Hole |
